CLWLPGT24
CLW

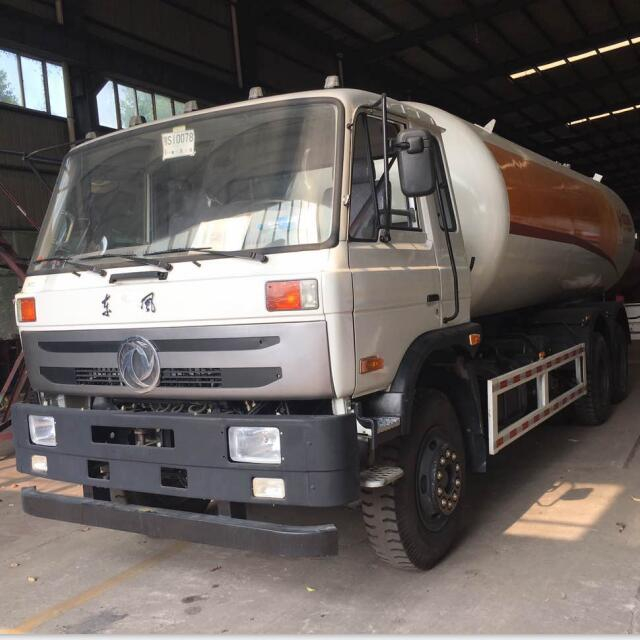

Dongfeng 6X4 12MT Fully Refrigerated LPG Road Tank Truck
It's widely used for Liquefied Petroleum Gas (Propane)delivery. The material is high quality Carbon Steel Q345R, 10mm thick.

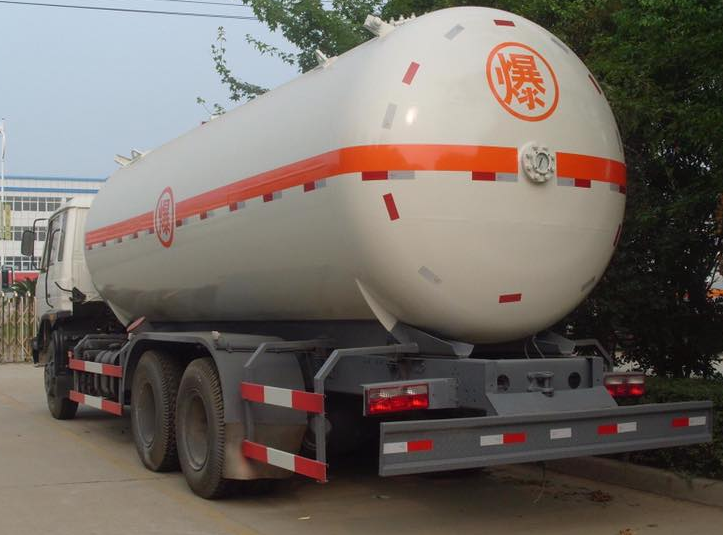

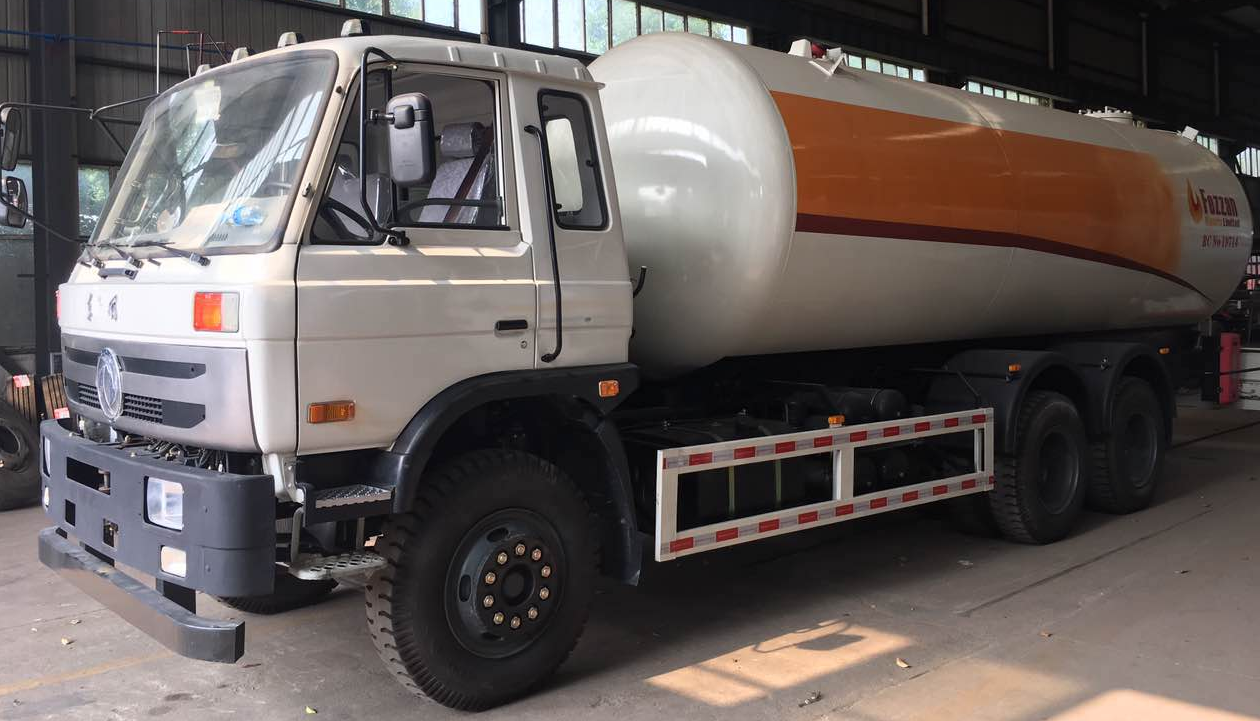

6X4 Dongfeng 24CBM (12MT) LPG Bobtail truck | |||
Condition | New condition / RHD | ||
Cab | 3 Passenger Allowed | ||
Chassis | Brand | Dongfeng | |
Curb weight(kg) | 11040 | ||
G.V.W.(kg) | 23040 | ||
Wheelbase(mm) | 4350+1300 | ||
Dimensions(mm) | 9600x2485x2930 | ||
Overhang (front/rear) (mm) | 1245/2705 | ||
Approach/Departure angle(°) | 28/11 | ||
Max. driving speed(km/h) | 90 | ||
Tire | Quantity | 10pcs with 1 spare tire | |
Specification | 10.00R20 | ||
Gear box | 8 Forwards & 2 reverses | ||
Fuel type | diesel | ||
Displacement(ml) | 5900 | ||
155 | |||
Horsepower(HP) | 210 | ||
Cylinder number | 6 | ||
Euro 3 | |||
Power steering, hydraulic steering with power assistance | |||
Tank Parameter | |||
Tank material | Carbon Steel Q345R | ||
Loading capacity (cbm) | 24cbm(12MT) | ||
Tank shape | Double ellipse | ||
Tank Dimension (mm) | 2050 x 10 x 7644 | ||
Thickness of Shell (mm) | 10 | ||
Thickness of End plate(mm) | 10 | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Corrosion Allowance(mm) | 1 | ||
Filling ratio | 0.42 | ||
Design pressure(Mpa) | 1.61Mpa | ||
Medium Density | 420kg/cbm | ||
Safety Accessory Parts: Safety valve, Cut-off Valve, thermometer, liquid level gauge, pressure gauge | |||
