Dongfeng 15CBM LPG Bobtail Propane Delivery Tanker Truck

4x2 Dongfeng 15CBM (15000 liters) LPG gas delivery truck
Truck brand: Dongfeng
Drive Model: 4x2
Loading capacity: 15CBM, 15000liters
Loading medium: lpg, Liquefied Petroleum Gas, Propane
Tank material: Carbon Steel Q345R

Quantity:
  • CLWLPGT15
  • CLW

4x2 Dongfeng 15CBM (15000 liters) LPG gas delivery truck

Chengli factory produces LPG delivery trucks with volumes of 3CBM, 5CBM, 10CBM, 12CBM, 20CBM, 25CBM, 30CBM, 35CBM.

It's For LPG gas delivery. The tanks are produced strictly based on LPG standards by Chengli factory.


4x2 Dongfeng 15CBM (15000 liters) LPG gas delivery truck

Condition

New condition/LHD

Chassis

Brand

Dongfeng

Curb weight (kg)

7295

G.V.W. (kg)

15000

Wheelbase (mm)

4700

Dimensions (mm)

9000×2462×3250

Overhang (front/rear) (mm)

1205/2495

Approach/Departure angle (°)

30/32

Max. driving speed (km/h)

90

Tire

Quantity

6pcs with one spare tire

Specification

10.00-20

Clutch

Reinforced diaphragm clutch

Gear box

6 Forwards & 1 reverses

Engine

Model

Commins, B190 33

Fuel type

diesel

Displacement (ml)

5900

Power (kw)

140

Horsepower (HP)

190

Cylinder number

6

Emission standard

Euro 3

Brakes

Service brake: dual circuit compressed air brake                                           Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Cab

3 Passenger Allowed, with A/C

Steering Gear

Power steering, hydraulic steering with power assistance

Tank Parameter

Tank material

Carbon Steel Q345R

Loading capacity (cbm)

15cbm(15000 liters)

Tank shape

Double ellipse

Thickness of Shell (mm)

6

Thickness of End plate (mm)

10

Filling Medium

Liquefied Petroleum Gas, Propane

Corrosion Allowance (mm)

1

Filling ratio

0.42

Design pressure (Mpa)

1.61Mpa

Medium Density

420kg/cbm

Safety Accessory Parts: Safety valve, Cut-off Valve, thermometer, liquid level gauge, pressure gauge

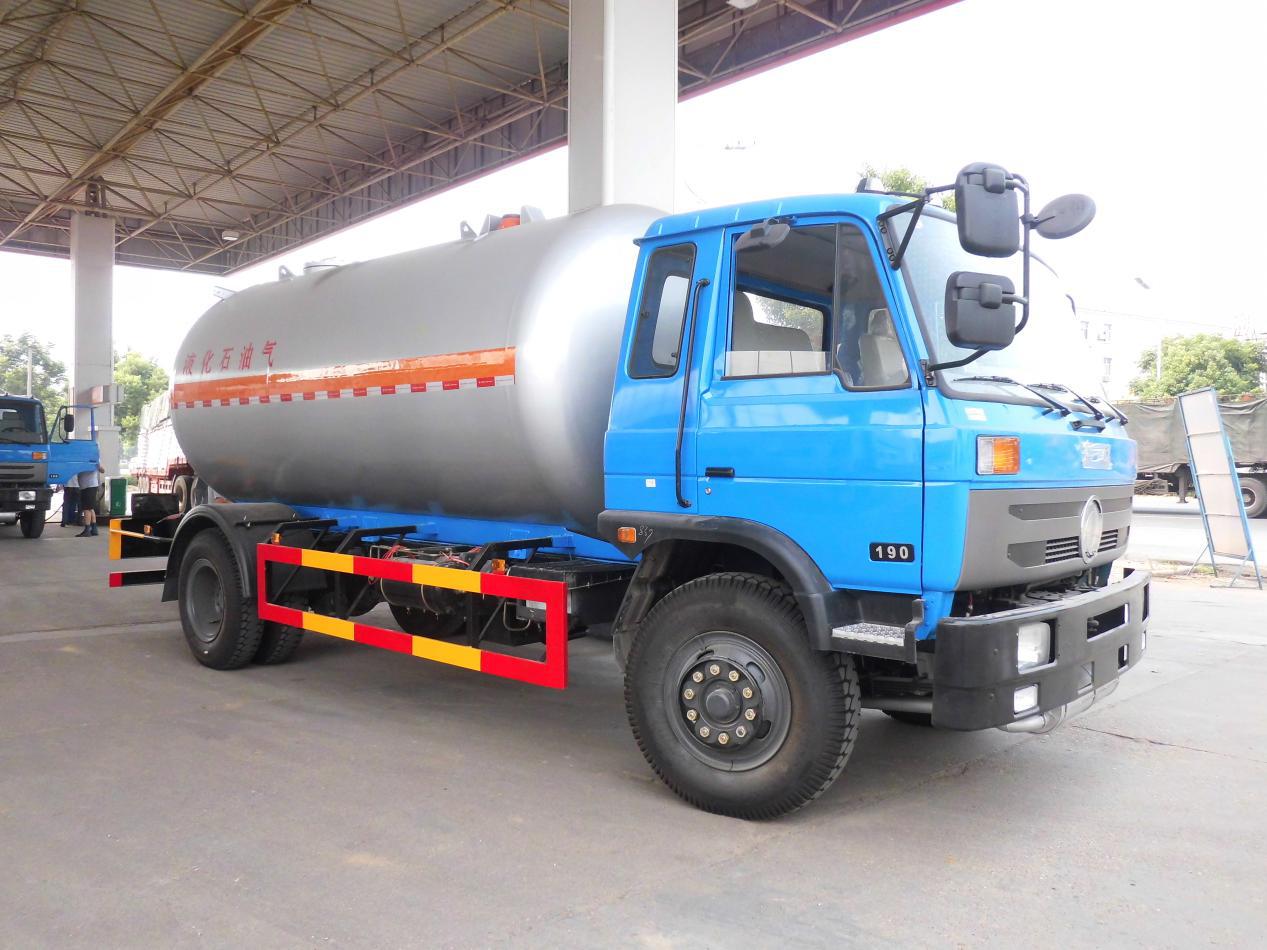

lpg gas delivery truck Dongfeng

Dimension figure of 15cbm Dongfeng LPG delivery truck

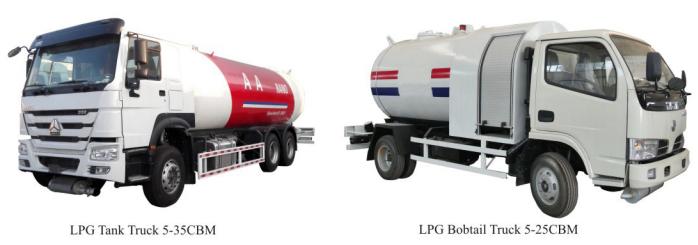

LPG gas delivery truck
