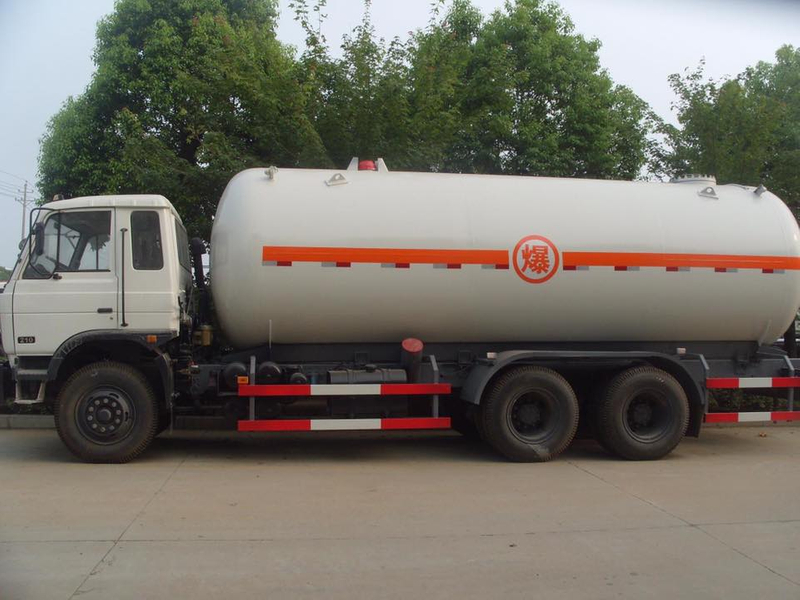

China Factory 30000 Liters Fully Pressurized LPG Propane Delivery Road Truck

Volume of Tank :30 CBM (30 000 litters)
Filling Weight :12768 kg
Tank Weight: 7110 kg
Thickness of Shell :12 mm
Thickness of dish head :14 mm
Tank Diameter :2300 mm
External Dimensions ( length x width x height): 8158*2324*2914 mm
Material of Tank and Main Pressure Parts:Q345 R
Filling Medium :Liquefied Petroleum Gas ( Propane)
Design Pressure:1.77 MPa
Work Pressure:≤1.6 MPa
Work Temperature: ≤50 °C
Corrosion Allowance:1 mm
Medium Density:420-590 kg / cbm
Certificate:SONCAP / ASME / ISO 9001 / ISO 14001 / OHSAS 18001
Manufacturing Standard :Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China, ASME standard
Safety valve of selection fitting: Safety valve , column magnetic reversible level meter, pressure gauge , thermometer , cut-off valve...

Quantity:
  • clw006
  • CLW

PRODUCT DISPLAY

INTRODUCTION:

Liquefied Gas Tanker truck(LPG truck)is also known as liquefied gas tanker truck and LPG transport vehicle. It is used to transport propane, propylene, two methyl ether, liquid ammonia, methylamine, acetaldehyde and other liquefied gas.


TECHNICAL PARAMETER:

Condition

New condition/LHD

Chassis

Brand

Dongfeng


Curb weight(kg)

9757


G.V.W.(kg)

20490


Wheelbase(mm)

5370+1300


Dimensions(mm)

10200×2500×3500


Overhang (front/rear) (mm)

1245/2845


Approach/Departure angle(°)

32/13


Max. driving speed(km/h)

90


Tire

Quantity

10pcs with one spare tire



Specification

10.00-20

Clutch

Reinforced diaphragm clutch

Gear box

6 Forwards & 1 reverses

Engine

Model

Commins, B210 33


Fuel type

Diesel


Displacement(ml)

5900


Power(kw)

155


Horsepower(HP)

210


Cylinder number

6


Emission standard

Euro 3

Brakes

Service brake: dual circuit compressed air brake                                           Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Cab

3 Passenger Allowed, with A/C

Steering Gear

Power steering, hydraulic steering with power assistance

Tank Parameter

Tank material

Carbon Steel Q345R

Loading capacity(cbm)

20cbm(20000 liters)

Tank shape

Double ellipse

Thickness of Shell(mm)

6

Thickness of End plate(mm)

10

Filling Medium

Liquefied Petroleum Gas ( Propane)

Corrosion Allowance(mm)

1

Filling ratio

0.42

Design pressure(Mpa)

1.61Mpa

Medium Density

420kg/cbm

Safety Accessory Parts: Safety valve, Cut-off Valve, thermometer, liquid level gauge, pressure gauge

Filling Medium

Liquefied Petroleum Gas ( Propane)

Corrosion Allowance(mm)

1

Filling ratio

0.42

Design pressure(Mpa)

1.61Mpa
