| Product Description |
Introduction:

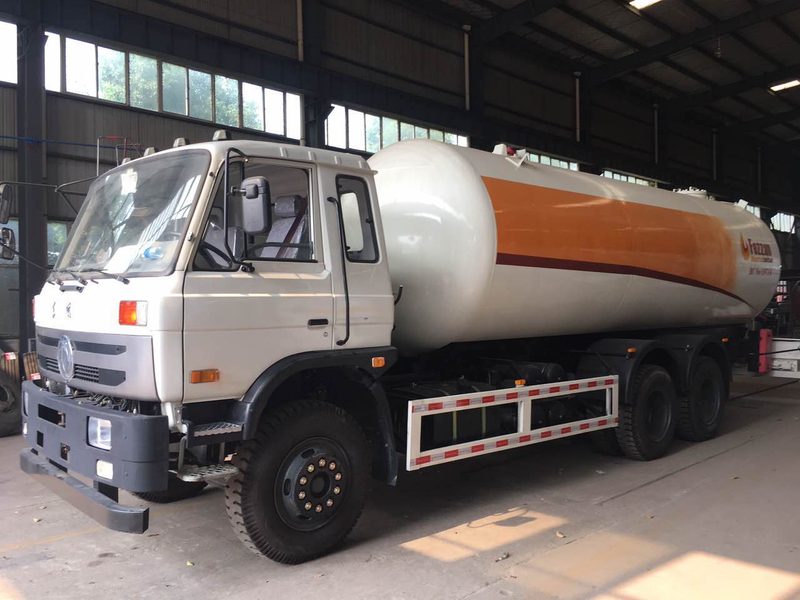

Liquefied Gas Tanker truck（LPG truck）is also known as liquefied gas tanker truck and LPG transport vehicle. It is used to transport propane, propylene, two methyl ether, liquid ammonia, methylamine, acetaldehyde and other liquefied gas.
Technical Parameter:
Condition | New condition/LHD | ||
Chassis | Brand | Dongfeng | |
Curb weight(kg) | 9757 | ||
G.V.W.(kg) | 20490 | ||
Wheelbase(mm) | 5370+1300 | ||
Dimensions(mm) | 10200×2500×3500 | ||
Overhang (front/rear) (mm) | 1245/2845 | ||
Approach/Departure angle(°) | 32/13 | ||
Max. driving speed(km/h) | 90 | ||
Tire | Quantity | 10pcs with one spare tire | |
Specification | 10.00-20 | ||
Clutch | Reinforced diaphragm clutch | ||
Gear box | 6 Forwards & 1 reverses | ||
Engine | Model | Commins, B210 33 | |
Fuel type | Diesel | ||
Displacement(ml) | 5900 | ||
Power(kw) | 155 | ||
Horsepower(HP) | 210 | ||
Cylinder number | 6 | ||
Emission standard | Euro 3 | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Cab | 3 Passenger Allowed, with A/C | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tank Parameter | |||
Tank material | Carbon Steel Q345R | ||
Loading capacity(cbm) | 20cbm(20000 liters) | ||
Tank shape | Double ellipse | ||
Thickness of Shell(mm) | 6 | ||
Thickness of End plate(mm) | 10 | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Corrosion Allowance(mm) | 1 | ||
Filling ratio | 0.42 | ||
Design pressure(Mpa) | 1.61Mpa | ||
Medium Density | 420kg/cbm | ||
Safety Accessory Parts: Safety valve, Cut-off Valve, thermometer, liquid level gauge, pressure gauge | |||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Corrosion Allowance(mm) | 1 | ||
Filling ratio | 0.42 | ||
Design pressure(Mpa) | 1.61Mpa | ||
Company Information
Our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3C authentication. We can produce various kinds of LPG Storage Tanks as customer's requirement. Our company has solid technology, flawless inspection,advanced equipments, reliant quality and flexible modes of operation.
Chengli factory’s advantages:
1) More than 15 years’ experience as a manufacturer
2) Competitive Price and Excellent quality
3) CCC, ISO, BV, ASME certification
4) Perfect after-sale service
5) Business range covers more than 50 countries and regions
6) 300 kinds of trucks and trailers
7) 100 senior welder and 15 senior engineers
8) Good cooperation with 30% regular customers
9) Annual production value tops 240,000,000 US dollars per year
