INTRODUCTION:

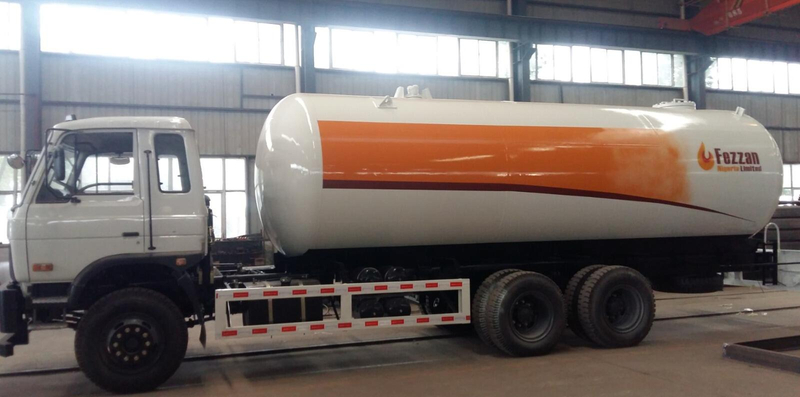

Liquefied Gas Tanker truck（LPG truck）is also known as liquefied gas tanker truck and LPG transport vehicle. It is used to transport propane, propylene, two methyl ether, liquid ammonia, methylamine, acetaldehyde and other liquefied gas.
TECHNICAL PARAMETER:
Condition | New condition/LHD | ||
Chassis | Brand | Dongfeng | |
Curb weight(kg) | 9757 | ||
G.V.W.(kg) | 20490 | ||
Wheelbase(mm) | 5370+1300 | ||
Dimensions(mm) | 10200×2500×3500 | ||
Overhang (front/rear) (mm) | 1245/2845 | ||
Approach/Departure angle(°) | 32/13 | ||
Max. driving speed(km/h) | 90 | ||
Tire | Quantity | 10pcs with one spare tire | |
Specification | 10.00-20 | ||
Clutch | Reinforced diaphragm clutch | ||
Gear box | 6 Forwards & 1 reverses | ||
Engine | Model | Commins, B210 33 | |
Fuel type | Diesel | ||
Displacement(ml) | 5900 | ||
Power(kw) | 155 | ||
Horsepower(HP) | 210 | ||
Cylinder number | 6 | ||
Emission standard | Euro 3 | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Cab | 3 Passenger Allowed, with A/C | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tank Parameter | |||
Tank material | Carbon Steel Q345R | ||
Loading capacity(cbm) | 20cbm(20000 liters) | ||
Tank shape | Double ellipse | ||
Thickness of Shell(mm) | 6 | ||
Thickness of End plate(mm) | 10 | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Corrosion Allowance(mm) | 1 | ||
Filling ratio | 0.42 | ||
Design pressure(Mpa) | 1.61Mpa | ||
Medium Density | 420kg/cbm | ||
Safety Accessory Parts: Safety valve, Cut-off Valve, thermometer, liquid level gauge, pressure gauge | |||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Corrosion Allowance(mm) | 1 | ||
Filling ratio | 0.42 | ||
Design pressure(Mpa) | 1.61Mpa | ||
