CLWLPGDT15
CLW

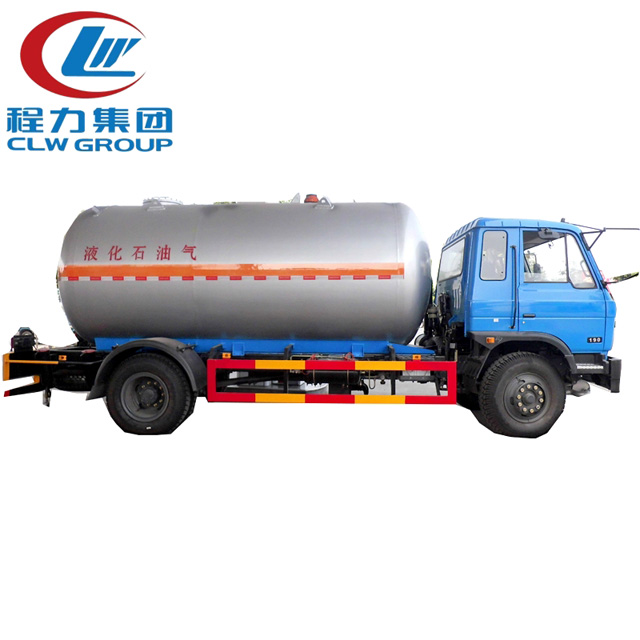

Dongfeng 6 Wheels Fully Refrigerated Lpg Tanker Truck
Chengli factory produces LPG delivery trucks with volumes of 3CBM, 5CBM, 10CBM, 12CBM, 20CBM, 25CBM, 30CBM, 35CBM.
It's For LPG gas delivery. The tanks are produced strictly based on LPG standards by Chengli factory.
And the LPG tank volume range is from 5M3 to 200M3. The whole set equipment of lpg tank truck, lpg gas station are available.
For LPT gas stations, we supply the tank, pump & motor, compressor, filling machines, gauges, pipes, etc.
Dongfeng 15CBM (15000 liters) LPG gas delivery truck | |||
Condition | New condition/LHD | ||
Chassis | Brand | Dongfeng | |
Curb weight (kg) | 7295 | ||
G.V.W. (kg) | 15000 | ||
Wheelbase (mm) | 4700 | ||
Dimensions (mm) | 9000×2462×3250 | ||
Overhang (front/rear) (mm) | 1205/2495 | ||
Approach/Departure angle (°) | 30/32 | ||
Max. driving speed (km/h) | 90 | ||
Tire | Quantity | 6pcs with one spare tire | |
Specification | 10.00-20 | ||
Clutch | Reinforced diaphragm clutch | ||
Gear box | 6 Forwards & 1 reverses | ||
Engine | Model | Commins, B190 33 | |
Fuel type | diesel | ||
Displacement (ml) | 5900 | ||
Power (kw) | 140 | ||
Horsepower (HP) | 190 | ||
Cylinder number | 6 | ||
Emission standard | Euro 3 | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Cab | 3 Passenger Allowed, with A/C | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tank Parameter | |||
Tank material | Carbon Steel Q345R | ||
Loading capacity (cbm) | 15cbm(15000 liters) | ||
Tank shape | Double ellipse | ||
Thickness of Shell (mm) | 6 | ||
Thickness of End plate (mm) | 10 | ||
Filling Medium | Liquefied Petroleum Gas, Propane | ||
Corrosion Allowance (mm) | 1 | ||
Filling ratio | 0.42 | ||
Design pressure (Mpa) | 1.61Mpa | ||
Medium Density | 420kg/cbm | ||
Safety Accessory Parts: Safety valve, Cut-off Valve, thermometer, liquid level gauge, pressure gauge | |||
