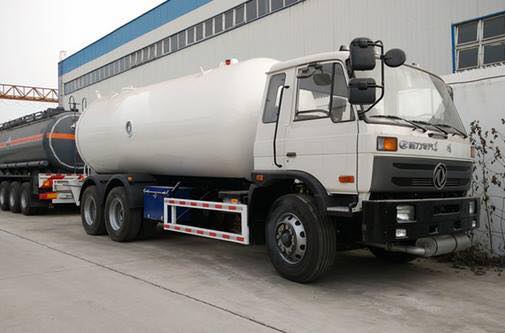

Fully Pressurized 16 Cubic Meters LPG Propane Delivery Road Truck
Technical Parameter
| 6x4 Dongfeng 16cbm LPG Gas tank truck filling machine | |||||
| Main Data | Model No. | CLW5190GYY3 | Axles | 3 | |
| G.V.W(Kg) | 19490 | Tank volume(m3) | 16 | ||
| Curb weight(Kg) | 8795 | Overall dimension (mm) | 11000×2490×3550,3200 | ||
| Rated weight(Kg) | 10500 | Axles Load(Kg) | 5400/5500/8590 | ||
| Emission Standard | Euro III | Front/rear suspension (mm) | 1430/2770 | ||
| Approach/departure angle (°) | 18/10 | Front/rear Tread(mm) | 1700+1500 | ||
| Wheelbase(mm) | 1700+5100 | Max speed(Km/h) | 90 | ||
| Leaf of springs | 10/10/10+8,10/10/11+8 | Tire | 9.00-20,9.00R20,10.00-20,10.00R20 | ||
| Chassis mode | DFL1190BX | Fuel type | Diesel | ||
| Engine | Type | Brand | Displacement(ML) | Rated Power(Kw) | |
| ISDe180 30/ISDe185 30 | Cummins | 4500 / 6700 | 132 / 136 | ||
| ISDe210 30 | Cummins | 6700 | 155 | ||
| EQH180-30 /EQH180-33 | Dongfeng | 4752 | 132 | ||
| YC6J200-33 | Yuchai | 6494 | 147 | ||
| Gearbox | 5 Forwards gear & 1 reverse gear | Brakes | dual circuit compressed air brake | ||
| LPG tank | Effective volumn:15.75cbm, tank size :8100×2200×1300mm. Floor clearance: 3200mm , Materials:Q235 carbon steel . Rear protective section size:100x60x50mm | ||||
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Our advantages:
a.Competitive Price and Excellent Quality,
b.More than 10 years' experience as a manufacturer
c.CCC,ISO,BV certification
d.Perfect after-sale service
e.Customized products available with us,
f.Export covering More than 50 countries and regions
g.Annual production value topped 1500,000,000 RMB (240,000,000 US d ollars) per year
