3ton Foton 4*2 RHD 108hp refrigerated truck (wheelbase 2600mm)

Refrigerated truck is an enclosed van box that can be used to transport frozen or fresh goods, equipped with dependent or independent refrigeration unit and a polyurethane insulated van box.

Quantity:
  • CLW

 3ton Foton 4*2 RHD 108hp refrigerated truck (wheelbase 2600mm)

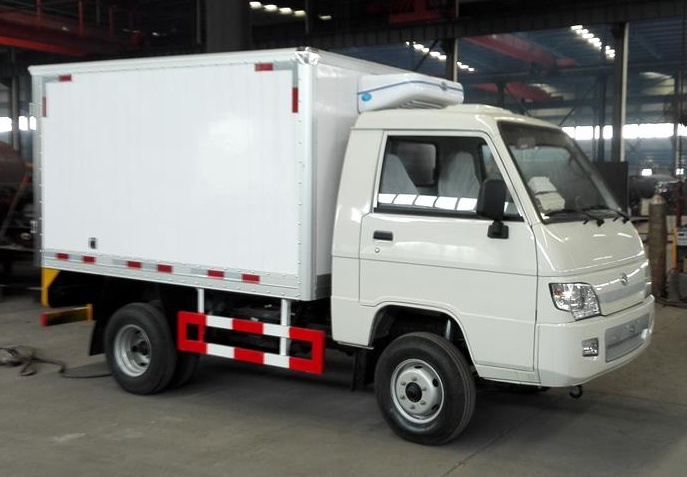

8 CBM Refrigerated Truck_看图王


Description

 3ton Dongfeng 4*2 RHD refrigerated truck

Drive Model

4x2, Right Hand Drive

Cab

2 person

Vehicle Main Dimensions

Dimensions(L x W x H)mm

5105*1770*2550


Wheel base (mm)

2600

Max. driving speed(km/h)

110

Engine

Model

BJ493ZLQV1

MAX Power(HP)

116

Displacement(L)

2.8

Fuel

Diesel

Engine type

vertical, water cooled, four stroke, supercharged

Maximum output power

85 kw

Cylinder arrangement

Inline

Cylinder Number

4

Minimum fuel consumption under full load

≤230g/kW.h

Cylinder x stroke(mm)

93*102

MAX Torque(N.M)

300

MAX Torque Speed(RPM)

2300

Engine net weight

251kg

Compression ratio

18.2:1

Emission standard

Euro 3

Gearbox

5 Forwarder+1 Reverse

Steering Gear

power steering, hydraulic steering with power assistance

Tire

6.50R16 , 6+1 Spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Van body

Van Material

Glass fiber reinforced plastics

Thermal insulation

Polyurethane foam

Dimension

3120*1650*1560mm

Door

Rear door open

Refrigerator unit brand

Hanya (Korea Brand)

Temperature

-18℃-0℃

Features

1.Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation.

2.Hanya Refrigerator, lowest Cooling Temperature negative 18 centi-degree.

3.Equipped with Ventilation slot


More pictures:

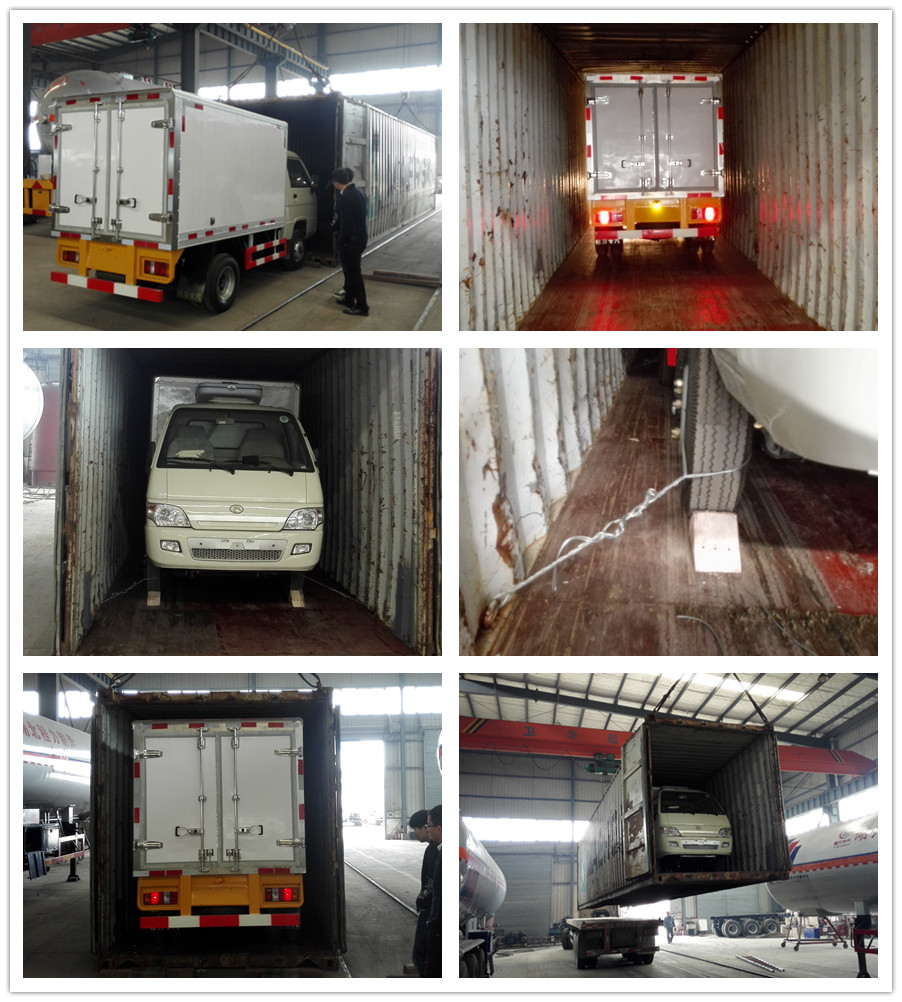

Container Loading Photos


Exported Trucks or tanks
