8x4 HOWO Bulk powder /cement tank truck/tanker Air compressor operate

cement, lime powder, ore powder, particle size, such as particles of not more than 0.1mm powder bulk materials dry bulk transport
The use of power-driven air compressor, compressed air through the pipeline into the lower sealed gas tank chamber, the gas chamber liquid bed powder suspended in fluid state, when the tank pressure reaches the rated value, open the discharge Valves, fluidized materials flow through the pipeline for transport.

Quantity:
  • CLW
  • CLW

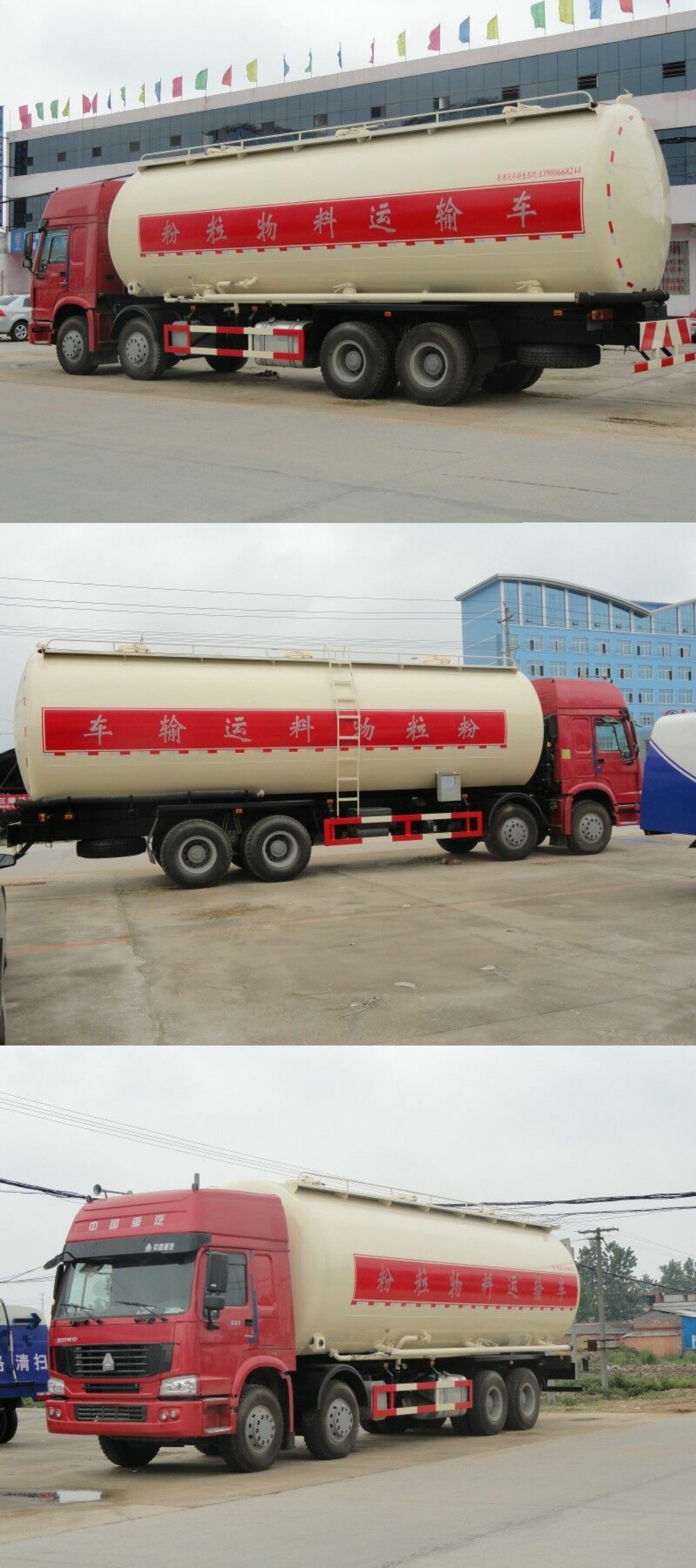

8x4 HOWO Bulk powder /cement tank truck/tanker Air compressor operate

Description

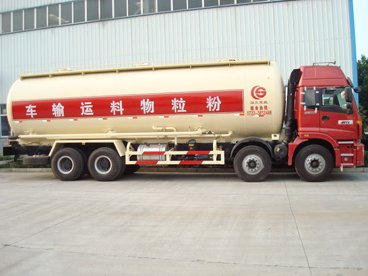

SINOTRUK 8X4 bulk cement truck

Vehicle Main Dimensions

Dimensions(L x W x H)mm

11980×2500×3950

Wheel base (mm)

1800+4700+1350

Overhang (front/rear) (mm)

1500/1560

Wheel track (front/rear) (mm)

2022/1830

Approach/Departure angle(°)

19/30

Weight in KGS

GVW.

15815

Curb Weight

25000

Max. driving speed(km/h)

85

Engine

Model

WD615

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

371HP

Emission standard

Euro II

Gearbox

10 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

12.00R20 Radial tire , 12 pieces plus 1 spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Equipment

1.Independently sub-warehouse storage, shipmen of different powder materials, discharge speed, the remaining low, security, high performance.

2.Working pressure of 0.2Mpa conditions, the discharge rate of 1.1-1.3t/min, the remaining rate of 3. Under certain conditions, discharge height >25mm

3.Appearance as a cylinder, material can be selected carbon steel, stainless steel, aluminum alloy.The internal use of airbag-type fluidized bed. Simple structure, easy maintenance, vulcanization good performance. The choice of 7.3 m3, 8 m3 10m3 air compressor, sport-axis direct-drive( optional belt drive).

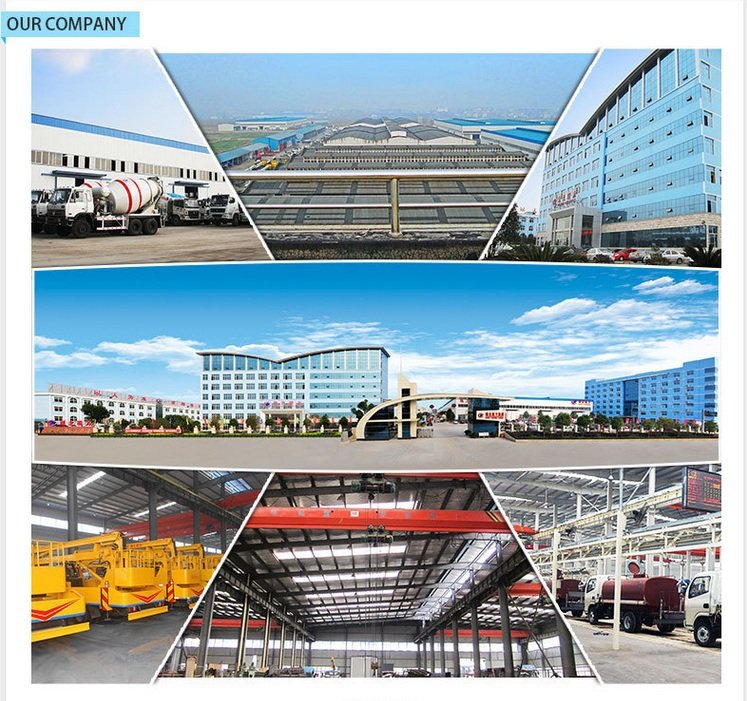

Company Introduction

chengli CLW factory.jpg

ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.

l  More than 15 years' experience as a manufacturer

l  Competitive Price and Excellent Quality

l  CCC, ISO, BV, ASME certification

l  Perfect after-sale service

l  Trucks covering more than 50 countries and regions

l  800 kinds of trucks and trailers

l  100 Senior welder and 15 senior engineers

l  Good cooperation with 30% regular customers

l  Annual production value topped 240,000,000 US dollars per year


Customized Truck & Trailer Solutions to Meet Your Requirements

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low
bed trailer / van container trailer / warehouse trailer, etc. )

ChengLi Special Automobile Co.,LTD


As the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004
There are totally 8,000 workers in factory and can supply 800 types of trucks. In 2014, our total sales revenue reach $300 million.
Over the past 11 years, our group made a great achievements in the special vehicle circle, our products have been sold to many country around the world, such as Nigeria, Vietnam, Garner, Uganda, Singapore, Malaysia, Congo, Cameroon etc.
There're many type trucks in our company, because we built up a long cooperate relationship with many famous brand chassis manufacturer, such as Sinotruk, Dongfeng, Foton, Shacman, JAC, JMC, FAW etc.
Look forward to the future, we are confident, we truct we can do better! We will pay more attention to the quality of the products, that's what we always do!
Customised Truck & Trailer Solutions to Meet Your Requirements



CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
