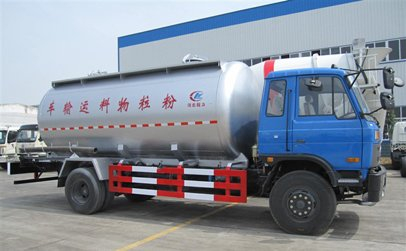

Dongfeng 4*2 Cummins 170hp Bulk Cement tanker Tank Truck
Item | Unit | Parameter | |||
Vehicle model | Dong Feng 4X2 10CBM Bulk Cement Truck | ||||
Fact cubage | L | 10000-13000 | |||
Total mass | kg | 11495 | |||
Mass in working order | 6320 | ||||
Overall Dimension | mm | 8100×2495×3310 | |||
Wheelbase | 4500 | ||||
Track base | Front | 1900 | |||
Rear | 1800 | ||||
Approach/departure angle | ° | 31/21 | |||
Exhaust/hp | ml/ps | 5900/170（with medium cold supercharge） | |||
F/R suspension | mm | 1250/2050 | |||
Max Speed | km/h | 90 | |||
Engine | Dong Feng Cummins B170 33 diesel engine 170hp | ||||
Special configuration | Function and characteristic | Can store different dust-like materials separately by storehouse-cleft. High efficiency in discharging, low material remaining ratio and high safety performance. | |||
Technology index | When working pressure is 0.2Mpa, discharging speed is from 1.1-1.3t/min,material remaining ratio is about 3‰.Under certain condition, material discharging height can be or more than 25 m.. | ||||
Manufacturing structure | Appearance is round tank, material choice of carbon steel, stainless steel, and aluminum alloy. Adoption of airbag-type sulfurize bed. Simple structure, easy maintenance, vulcanization good performance. Air compressor can adopt 10m3 type. Drive by the movement axis. (Also can adopt strap drive.) | ||||
Company Introduction
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 800 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
Customized Truck & Trailer Solutions to Meet Your Requirements
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
