CLW brand 50 ton telescoping 3 arms straight arm heavy duty crane truck

These truck mounted cranes can be used for multiple work applications, such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses. Articulating cranes, which are also known as knuckle boom cranes, are designed to be lightweight and highly maneuverable for maximum payload while working in tight spaces.
Availability:
Quantity:
  • CLW

 CLW brand 50 ton telescoping 3 arms straight arm heavy duty crane truck


truck mounted cranes can be used for multiple work applications, such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses. Articulating cranes, which are also known as knuckle boom cranes, are designed to be lightweight and highly maneuverable for maximum payload while working in tight spaces.

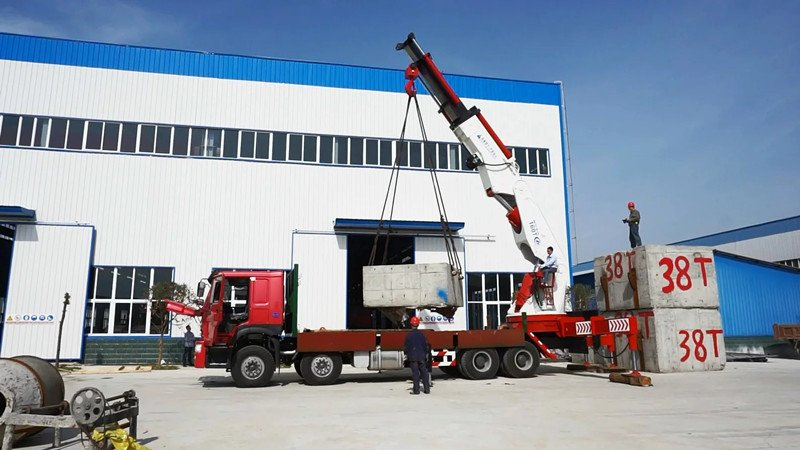

 50Tons Crane Truck

Overall Dimension

11700×2496×3125 mm

Gross Vehicle Weight

43000 kg

Curb Weight

11110 kg

Wheel Base

1800+4600+1350mm

Front/rear Overhang

1500/2450 mm

Front/rear Tread

2022/1830 mm

Approach/Departure Angle

16/19 degree

Engine

D12.34-40, Four Stroke, 6 Cylinder in line.

Engine horsepower

340 HP Euro II

Displacement

11.596L(Diesel)

Full loading Fuel

Consumption Rate

≤189g/kW.h

Max Driving Speed

90 km/h

Gear Box

12 Forward & 2 Reverse Gear

Cabin

Left Hand Driving, 2 Passengers Allowed, with Air Conditioner

Tire

12.00R20, 12 pieces with 1 spare tire.

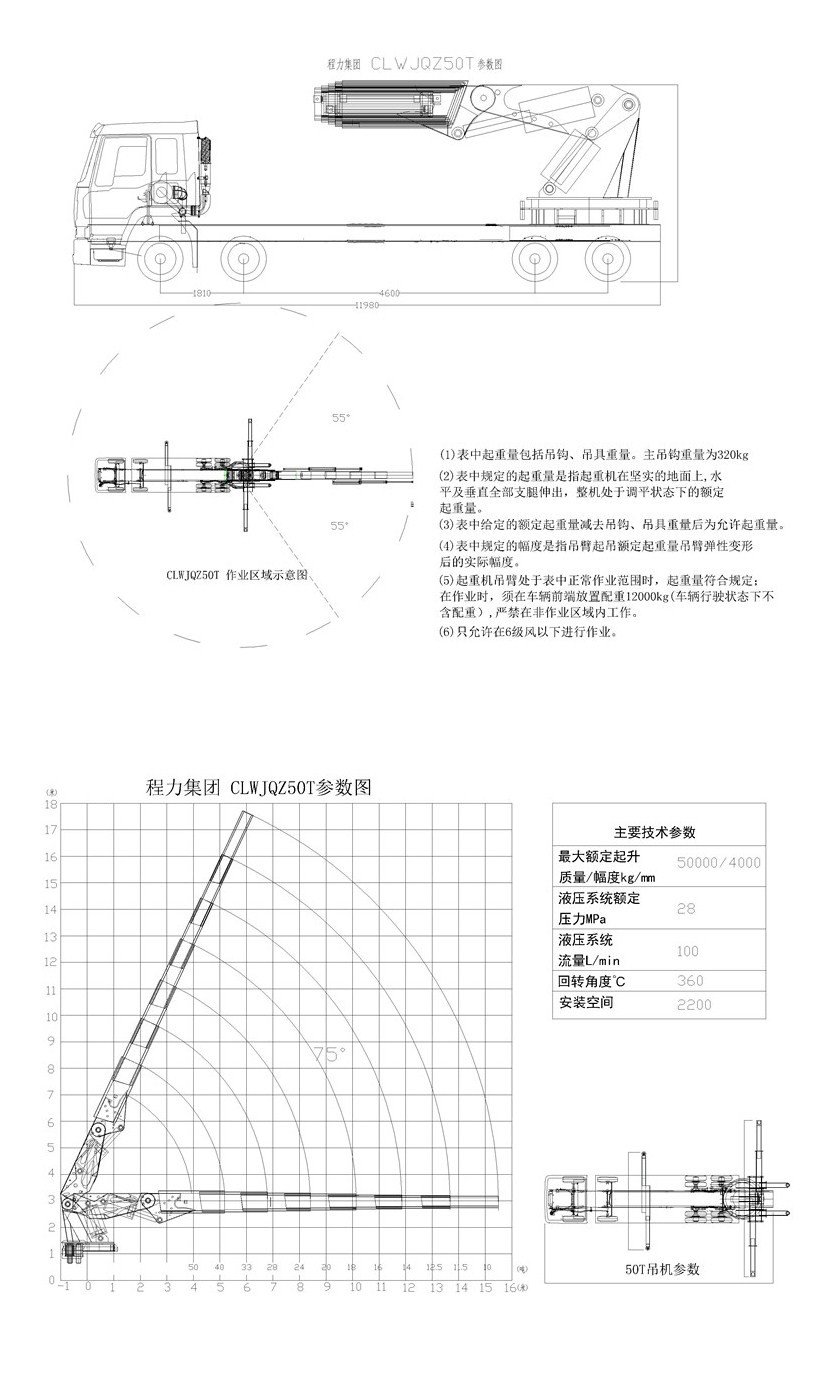

Max Lifting Moment

1800 Kn.m

Max Lifting Capacity(kg/m)

50000/4.0

40000/5.0

20000/9.0

10000/15.0

Max Lifting Height

14m

Max Working Radius

10.5m

Hydraulic extension boom No.s

4 stages

Rotation Angle

360º continuous

Rated Working Pressure

28 Mpa

Related Oil Flow

100 L/min

Outrigger Span

2472-7967mm

Outrigger

5 ,Extension, Hydraulic operating.

Crane Weight

14500kg

Installation Space

2200mm

Swing Type

Planetary gear reduction

Safety Device

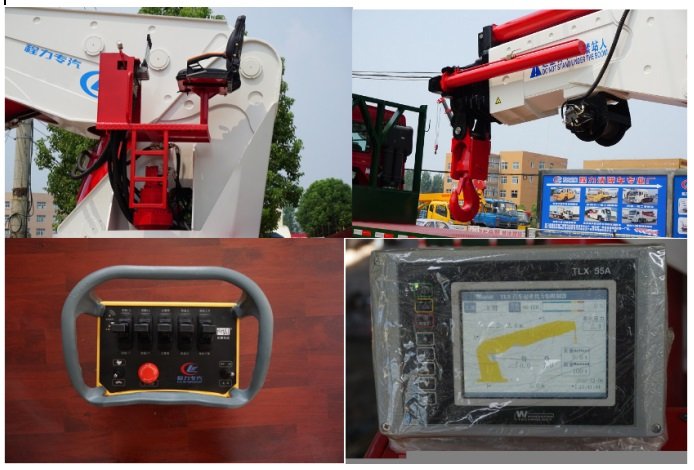

Load Indicator,Hydraulic Safety Valve,Counter Balance Valve,Over winding Alanm Device,Automatic Swing Brake,Hook Safety Device

Options

Aux.winch,Aux.Boom,Remote control

Material

HG785

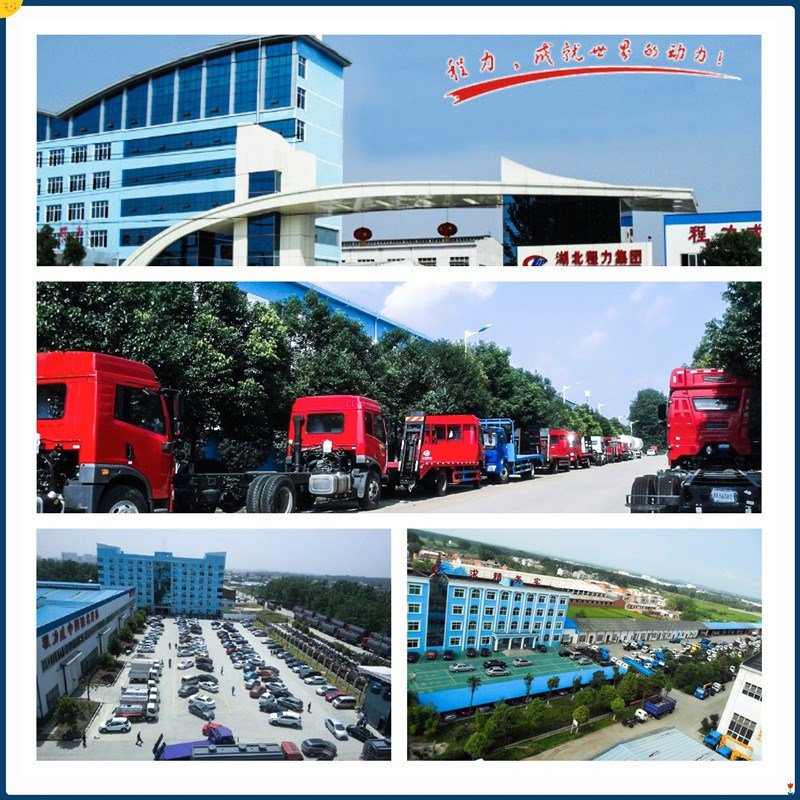

Chengli special automobile Co., Ltd isan automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market.



   1.Quality control: our company truck pass ISO,CCC,BV certification.

    2.Design capacity :Our factory have over 200 technicians and designers.

    3. Exhibition: our factory attend Canton Fair every year.

    4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.

    5.Our company cooperate with famous chassis manufacturers, such as DONGFENG, FAW, SHINOTRUK, IVECO, FOTON, and etc.


our products fully passed ISO9001-2000 international quality system and 3Cauthentication
