CLW

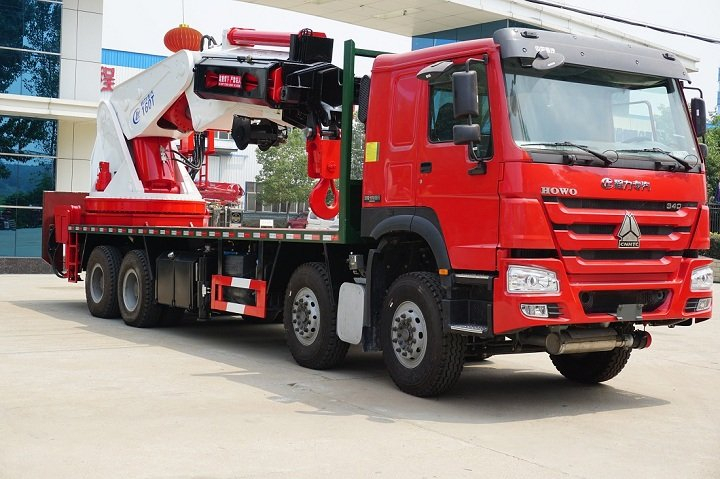

1. Truck crane equip with wide lifting range, stabilized working state, quick moving speed and comfortable working cabin which can work in variety of environments.
2. Optimized structure components increase the lifting performance at the middle-long working radius significantly.
3. Unique design of Driver's cab and operator's cab make the operator safer and more comfortable.
4. Perfect combination of speed and slight-mobility make the operation more smoothly.
5. Reliable and power chassis configuration makes drive system more powerful and greater control.
Cabin | HW76 Cabin , with one sleeper, with two seats,with A/C,with right hand driven. | ||||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 12000×2500×3980 | |||
Wheel base (mm) | 1950+3075+1375+1350 | ||||
Wheel track (front/rear) (mm) | 2022/1830 | ||||
Approach/Departure angle(°) | 16/15 | ||||
Weight in KGS | Tare Weight | 55000 | |||
Front axles loading capacity | 3x9000 | ||||
Rear axles loading capacity | 2x16000 | ||||
Max. driving speed（km/h） | 90 | ||||
Engine | Brand | SINOTRUK | |||
Model | WD615.47 | ||||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
Horse Power（HP) | 371 | ||||
Displacement (cc) | 9726 | ||||
Emission standard | Euro Ⅱ | ||||
Gearbox | HW19710 gear box，10-speed Forwards & 2 reverse | ||||
Steering | ZF8098 power steering,right hand drive | ||||
Tire | 12R22.5 Tubeless tyre ,15 pieces with one spare | ||||
Crane system
| l Crane model CLW160TONZ6 l Crane net weight 400000 KG l Max lifting capacity 160T at 4m operating radius l Telescopic boon no. 6 Pcs. l Hydraulic outer riggers 6 pcs l Max working operating radius 15.5m l Max lifting height 19 m l Rated working pressure for hydraulic system 28 Mpa l Hydraulic system flow 100 L/min l All rotation l Installation space 2500 mm | ||||
