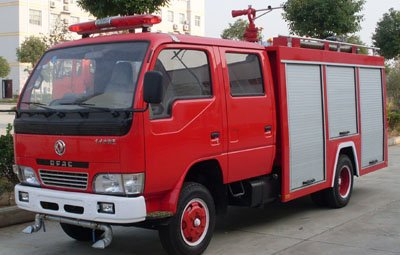

Dong Feng 4x2 1500L Water Tank And 500L Foam Tank Fire Fighting Truck

Availability:
Quantity:
  • EQ1042

  • CLW

Dong Feng 4x2 1500L Water Tank And 500L Foam Tank Fire Fighting Truck:


Dong Feng fire fighting truck is also called fire fighting truck, is used exclusively for extinguishing or other emergency rescue. Fire fighting truck is currently most main tool for fire deprtments to fight fire , and is the most basic mobile firefighting equipment.According to the different types of extinguishing media, fire truck can be divided into water tank fighting truck, foam fighting truck, dry powder fighting truck, etc. We can manufacture kinds of fighting truck from 0.5ton  to  22ton, and we also can manufacturer  rescue Fire truck, communication command truck, inflatable Fire truck. etc.



Product Notes:


1. Capacity : 1500L Water Tank, 500L Foam Tank

2. Passenger In Cab : Double Row Cab, About 5 People.

3. Advanced Technology In Special Automobile.

4. High Quality And Safety.

5. We have our own manufacturing plant to ensure the quality and production period.



Detailed Specification:


Description

Dong Feng Water Foam Fire Fighting Truck

Drive Model

4X2

Chassis

EQ1042

Capacity

Water tank:1500L

Foam tank:500L

Vehicle Main Dimensions

Dimensions(L x W x H)(mm)

6310X1980X2400


Water tank dimensions

1000x1700x1000


Foam tank dimensions

500x1700x700


Wheel base (mm)

3300


Overhang (front/rear) (mm)

1032/1853


Wheel track (front/rear) (mm)

1508/1458


Approach/Departure angle(°)

23/15

Weight in KGS

GVW.

4495


Curb Weight

2705

Max. driving speed(km/h)

90

Engine

Model

CY4102


Type

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling


Horse Power(HP)

95 HP


engine capacity(ml)

3707


Emission standard

Euro III

Gearbox

5 forwards & 1 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

120

Tire

7.00R15tire , 6 + 1(spare)

Brakes

dual circuit compressed air brake

Cab

four doors, double row

Equipment

◆Water tanker: 1500L  Foam Tanker:500L
◆Low pressure pump :CB10/20
◆Flow: low pressure 20L/S
◆Pressure: low pressure 1.0MPa
◆PL30 Fire Pump  Flow: 20L/S
◆Pressure: 1.0MPa
◆Fire distance (water):≥50m


Our Service:


1. Factory direct supply: reliable quality and fast delivery;

2. Warranty: From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;

3. Tracking service: lifelong

4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;

5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.

6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.

7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.


Company Introduction:


CHENGLI SPECIAL AUTOMOBILE CO., LTD , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing many kinds of special trucks. Our leading productions contain more than 300 types of trucks such as water truck, sewage suction truck, garbage truck, road sweeper, fuel tanker, chemical liquid truck, concrete mixer truck, LPG tanker, dump truck, refrigerated truck, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliable quality and flexible modes of operation. What's more, we have roundly passed the certification of ASME, ISO 9001:2008, ISO 14001:2004, OHSAS 18001:2007 and the China 3C Certification (China Compulsory Certification), etc.



 CHENGLI SPECIAL AUTOMOBILE CO., LTD is the most important partner of DONGFENG, FAW, JAC, FOTON, SINOTRUK and other Automobile Company. It not only design, manufacture and test all kinds of special automobiles and fittings accurately as per the customer’s request ,but also provide all spare parts.



 CHENGLI SPECIAL AUTOMOBILE CO., LTD is located in SUIZHOU City, HUBEI province, China, the native place of YANDI SHENNONG, and the Capital of Special Truck. Welcome the friends from all over the world to SUIZHOU! To our factory, you will be received the most enthusiastic reception.
