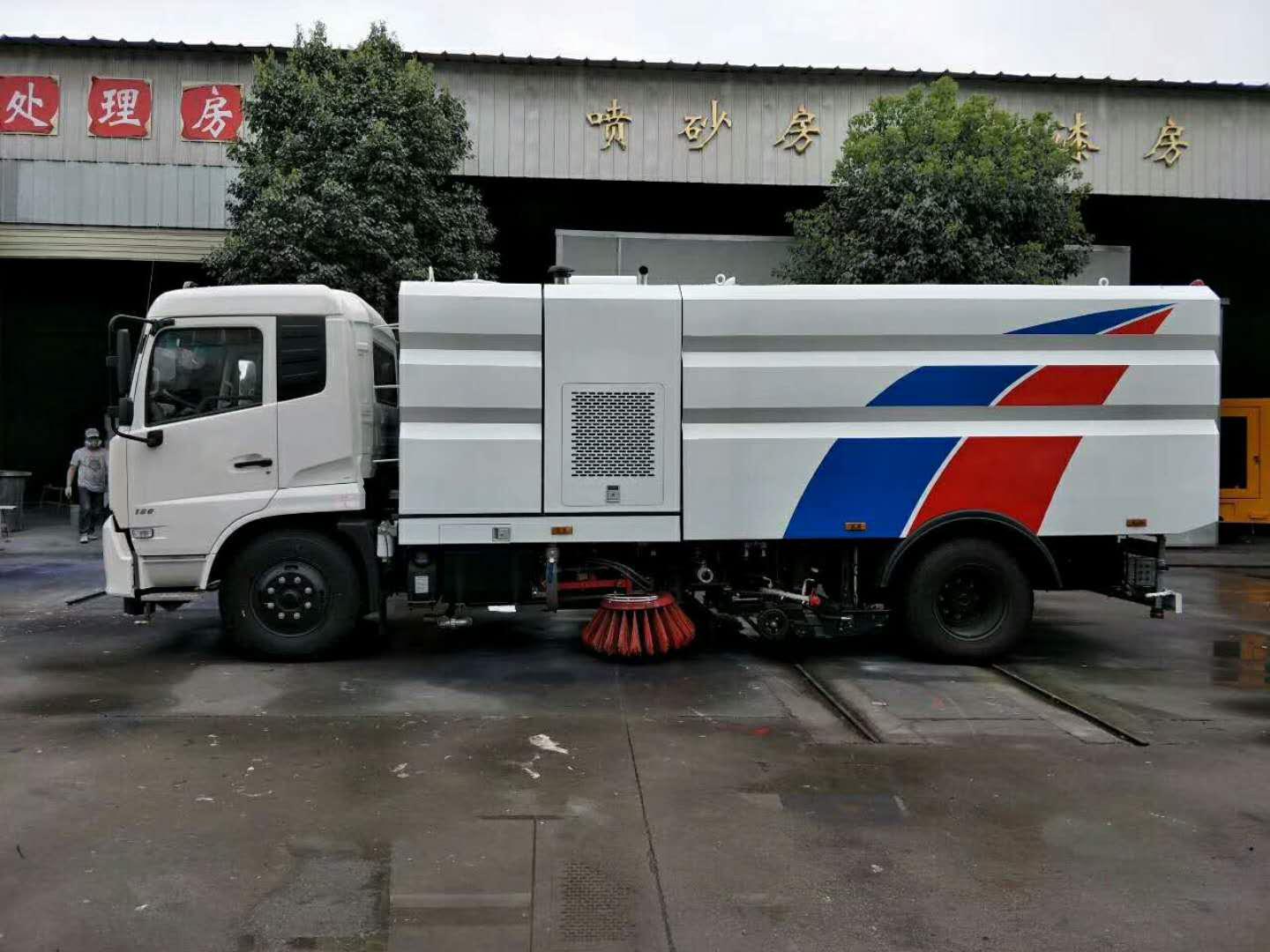

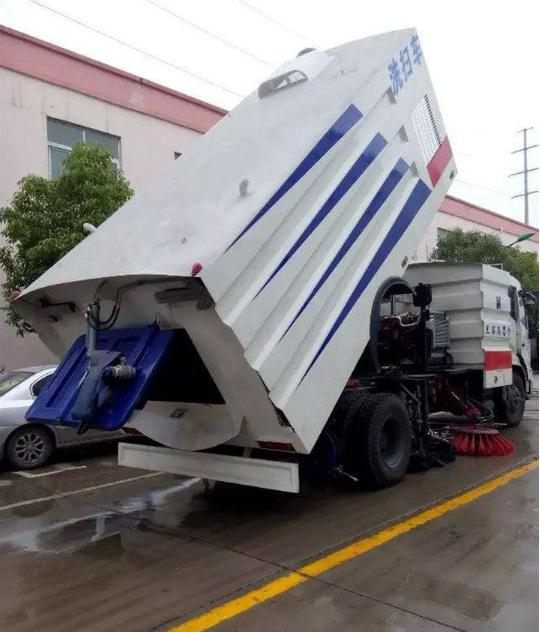

Dongfeng 16cbm Street Vacuum Cleaning Washer Truck

Quantity:
  • CLW520
  • CLW
PRODUCT DISPLAY

Street Vacuum Cleaning Truck, can be used as a solo car for road cleaning and suction operation, and can also be used as a high pressure washing car for road washing and suction operation, and the combination of road cleaning and high pressure flushing can be used as a cleaning car, so as to realize a variety of combinations of cleaning, washing and pumping, so as to meet the various needs of different users. The vehicle can be widely used for washing and cleaning of main roads and viaducts in urban areas.


TECHNICAL PARAMETER

Condition

4 X 2, New condition

Chassis

Brand

Dongfeng

Loading weight(kg)

4255

Wheelbase(mm)

5000

Dimension(mm)

8580×2490×3100

Approach/departure angle(°)

20/13

Front/rear overhang(mm)

1430/1920

Wheel track(front/rear)(mm)

1900/1860

Max driving speed(speed(km/h)

98

Tire

Quantity

6 +1 spare tire


Specification

9.00R20

Cab

3 passengers allowed, with A/C, FM

Engine

Brand

Cummins

Fuel type

Diesel

Displacement(ml)

4500

Max Power(kw)

132

Max Horsepower(hp)

180

Max Torque(N.M)

700

Cylinder number

4

Intake form

Supercharged medium cooling

Emission standard

Euro V

Gear box

5 forwards & 1 reverse

Upper

Tank

Water tank

Volume: 9cbm

Garbage tank
Volume: 7cbm

Material

Stainless Steel
