vacuum sewage truck 6x4 Sinotruk howo sewage suction tanker truck
The truck is composed by truck chassis, power take off, transmission shaft, vacuum sewage suction pump, tank, hydraulic parts, vacuum gauge, other components.
Vehicle equips with power vacuum quality hydraulic pumps and durable quality hydraulic systems, the tank can be opened after the double top dump. High vacuum, large tonnage, high efficiency, more versatile features, can be widely applied to urban rainwater collection wells, manholes and pumping all kinds of ditches within the sludge, sewage or sludge petrochemical cesspool of shipment and the exhaust discharge. Dirt inside the tank can be dumped through the back cover, used in large, medium and small towns sanitation, municipal, agricultural, chemical, industrial enterprises, residential property and other departments.

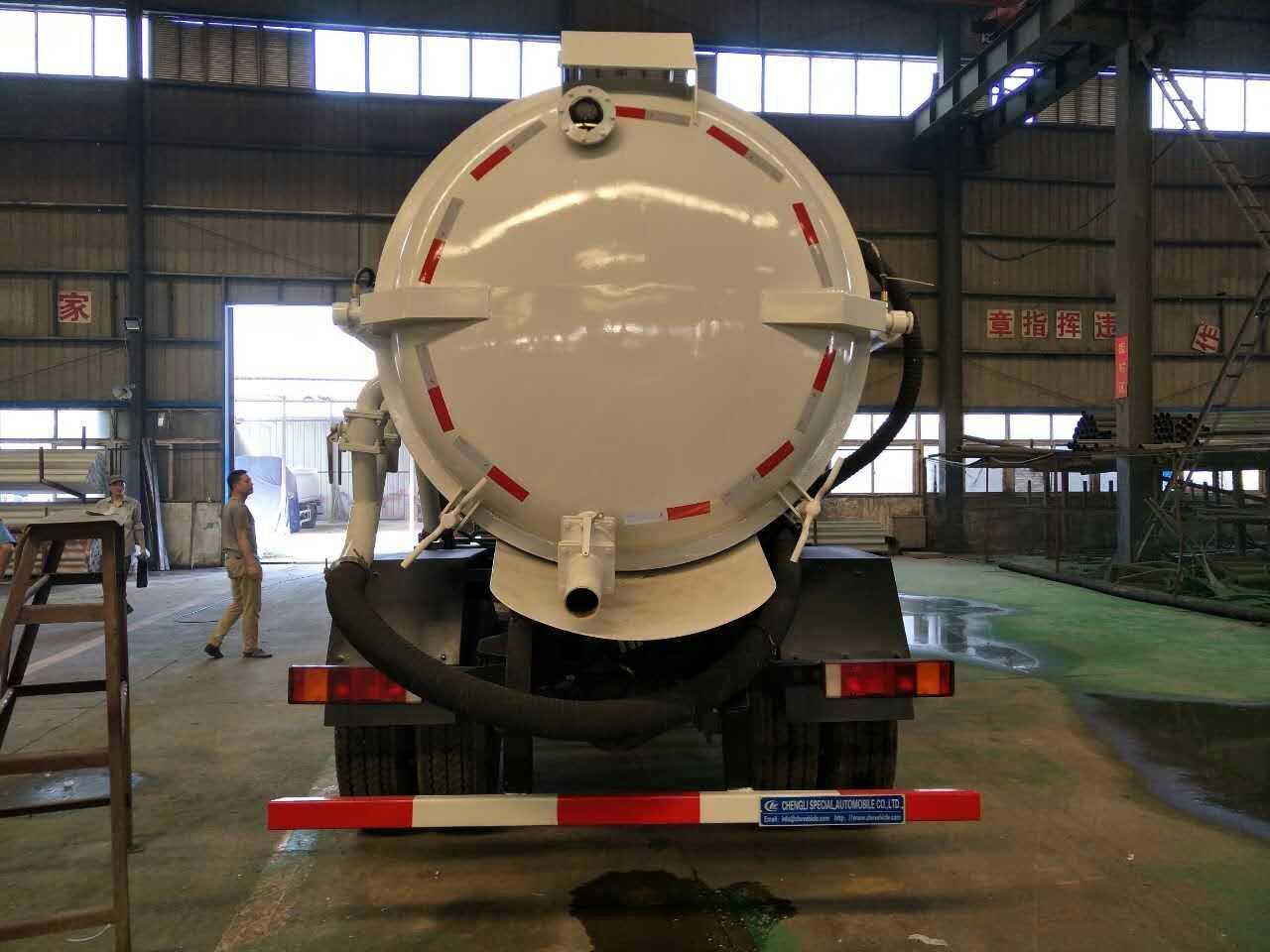

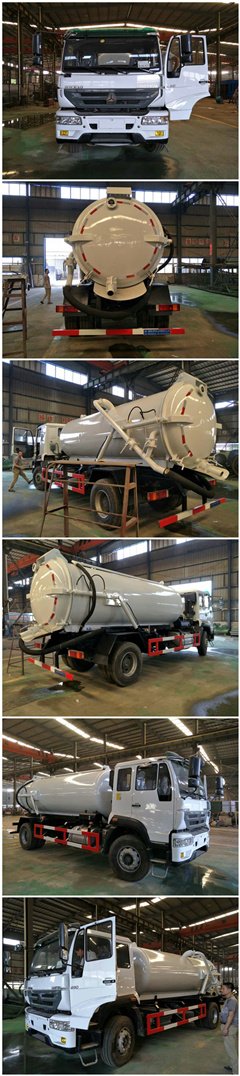

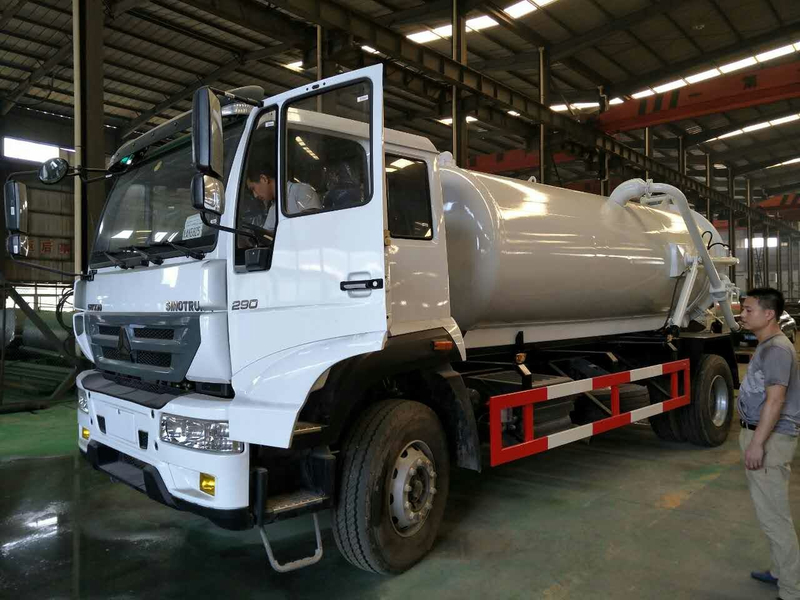

Howo sewage suction truck detailed pics

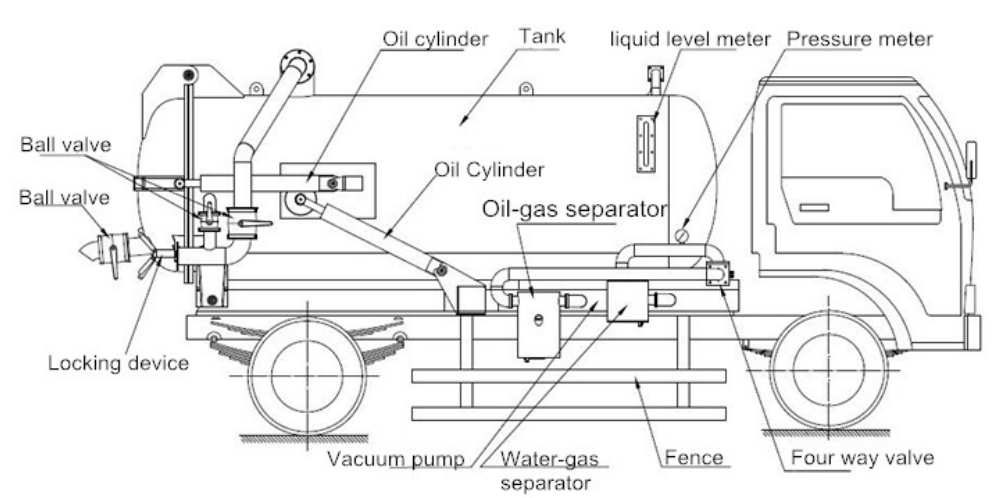

Howo sewage suction truck operation diagram
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Techncial parameter for Howo sewage suction truck
Sewage Suction Tanker Truck | ||
Chassis type | ZZ1164H3615C | |
Cubage(m3) | 10 | |
Parameters | Overall dimension length/width/height (mm) | 7850*2490*3200 |
Total Mass(kg) | 16000 | |
Payload(kg) | 6000 | |
Kerb Mass(kg) | 8510 | |
Approach angle/ Departure angle(mm) | 24.5/41 | |
Front suspension/rear suspension(mm) | 1250/1460 | |
Fuel Type | diesel | |
Fuel Consumption/100 km | ||
Max Speed | 99 | |
Engine | Type | YC6J190-33, YC6J220-33 |
Displacement/Power(kw) | 5900cc/140(190hp), 6494cc/162kw | |
Manufacturer | Guangxi Yuchai Diesel Engine Co.,Ltd | |
Type | ||
Chassis | Drive type | 4×2 |
Wheelbase(mm) | 3800,3600 | |
Tread(front/rear) | 2020/1850 | |
Front axle | 5 Ton | |
Rear axle | 10 Ton | |
Steering gear | Duel-armed steering wheel, power steering | |
Transmission | 9 gear mechanical drive transmission | |
Clutch | Diaphragm clutch, hydraulic remote control, pneumatic servo | |
Braking system | Split air braking system, spring braking, exhaust braking | |
Cab | Non-longheaded, one and a half row cab,whole metal-enclosed | |
Number of spring axle(front/rear) | 11/10+10 | |
Tire Type | 10.00-20,10.00R20, 11.00-20, 11.00R20 | |
Air-condition | Choose to fix | |
Sucking system | Sucking pump | Sliding-vane rotary vacuum pump |
Special performance parameters | Vertical suction range | ≥8 |
Absolute pressure | 8500Pa | |
Rotation speed | 500 | |
Theory pumping speed | 98L/S | |
Axis power | 5.5kw | |
Vent dia | 50mm | |
Suction Time | 5s | |
Drain time | 4s |
