CLW

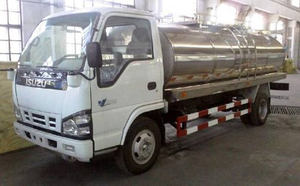

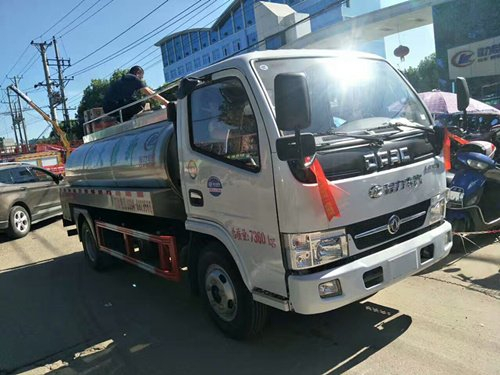

Dongfeng 5cbm LHD 4*2 70hp milk tank truck
Feature Application:
1). The truck is special used for transporting milk
2). The inner tank material is food grade stainless steel, it’s special used for transporting milk or other liquid food.
3). It can be made several warehouses inside the tank, each of them can unload separately for different liquid food transportation.
4). Heat insulation: temperature change LE1°C within 24 hours
5). With PIC clear system, it’s easy for clearing the inner tank
6). Standard spare parts for easy maintenance.
Specification of Dongfeng 5cbm LHD 4*2 milk tank truck | |||
Description | Dongfeng 5cbm LHD 4*2 milk tank truck | ||
Drive Model | 4*2, Left Hand Drive | ||
Cab | 2 person | ||
Vehicle Main Dimensions | Dimensions(L x W x H)mm | 5998*2100*2390 | |
Wheel base (mm) | 3300 | ||
Max. driving speed(km/h) | 80 | ||
Engine | Model | N490QB | |
MAX Power(HP) | 70 | ||
Displacement(L) | 2.156 | ||
Maximum output power | 45 kw | ||
Fuel | Diesel | ||
Engine form | Direct injection | ||
Cylinder Number | 4 | ||
Gear ratio | 1.2.3(i) | ||
Engine size | 720*530*693mm | ||
Cylinder x stroke(mm) | 90*100 | ||
Idle speed（r/min） | 3200 2400 | ||
Intake valve clearance(mm） | 0.30-0.35 | ||
Clutch form | Platen clutch | ||
Engine net weight | 230kg | ||
Torque(nm) | 104 | ||
Emission standard | Euro 3 | ||
Gearbox | 5 Forwarder+1 Reverse | ||
Steering Gear | power steering, hydraulic steering with power assistance | ||
Tire | 7.00R16 , 6+1 Spare tire | ||
Tank body | |
Material | 304-2B Stainless steel |
Loading Capacity | 5ton (5cbm) |
Thickness(mm) | Inner layer :3mm 304-2B stainless steel Middle layer(thermal insulation): 80mm polyurethane foam insulation Outside layer:2 mm 201 stainless steel |
Standard Equipment
| 1.The tank is made up of three layers:outside layer(for physical protection), middle layer(thermal insulation),inner layer tank(for milk filling). 2.The thickness of thermal insulation layer is 80mm Polyurethane foam, the function of thermal insulation: medium temperature change ≤1°C during 24- 48 hours. 3.The inner tank material is high quality food grade stainless steel 304-2B, and it has been polished. 4. Equipped with PIC self-cleaning devices. 5. The tank divided into several compartments to make sure the inside can be clear thoroughly,also can contain different medium. 6. Stainless steel valves,pipes. |
Company information
1. 20 independents workshops.
2. Established from 2004.
3. 300 senior engineers and technicians. About 2000 to 3000 workers.
4. 380kinds of trucks and semi-trailers.
5. Turnover 2million trucks and semi-trailers annually.
6. 1000 sets of equipments, 25 assemble lines.
