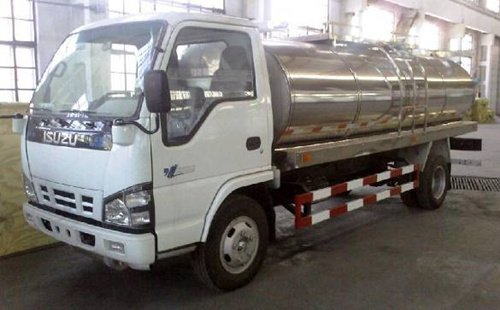

ISUZU 4M3 Stainless Steel Milk Tank Truck 4x2 4000 Liters Milk Transportation Tanker Truck 4tons

1. Tank material is made by food grade stainless steel, for transport milk and other liquid food

2. Usually 4-5cbm tank capacity for one compartment, with independent discharging system,can load different liquid foods at the same time

3. Insulation function: within 24 hours medium temperature elevating ≤1 ℃

4. equipped with PIC cleaning system, easy for the inner tank washing

5. 304-2B inner tank material is food grade stainless steel 4mm thick, the insulation layer of polyurethane foam insulation 8CM, Outer tank material 304 stainless steel 2mm。

6. PIC cleaning system is installed inside the tank for each compartment

Quantity:
  • CLW

ISUZU 4M3 Stainless Steel Milk Tank Truck 4x2 4000 Liters Milk Transportation Tanker Truck 4tons


Milk Tank Truck is also called liquid food tanker, milk tanker truck,fresh milk transport truck, is mainly used to transport fresh milk, goat milk, fresh juice, bulk beer, etc liquid food.  It adopt food grade stainless steel 304 -2B, can be devided into several  warehouse to load different foods, it is clean, healthy, environmentally friendly with good insulation performance.


Item No.

Parameters

Milk Tank


Tank Volume

5cbm

Tank Size

According to design drawing

Tank Material

Inner Stainless Steel material: 304/2B food degree;

Insulation material: 80mm polyurethane foam

Cover steel: 2mm 201 stainless steel

Compartment no.

1

Discharging Outlet no.

1

Breath valve no.

1

Water Inlet pipeline

Ф38mm

Manhole

DN500mm with food degree rubber

Washing equipment

Automatic cleaning ball in every compartment

Milk pump

Stainless Steel material:304/2B food degree

LOGO

Company Logo or any advertisement can be printed on the tank according to the customer's design.

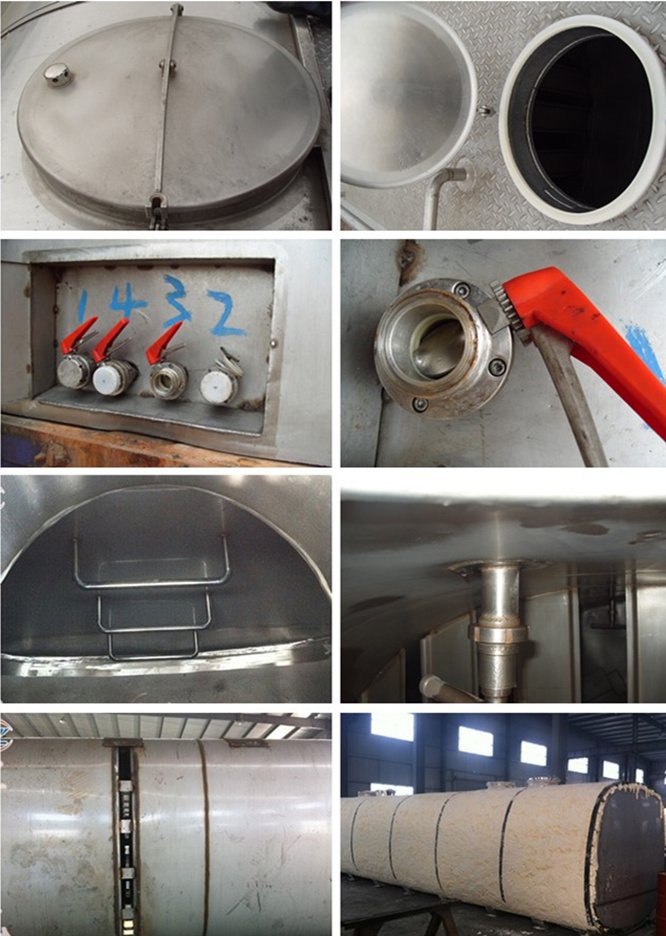

Tank detailed pics



About our company

ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province,China. SuiZhou is near to wuhan, Xiangfan and Shiyan,with these cities, there is a Golden Car Manufacturing hallway along the 318 highway. Among that, SuiZhou is famous as the capital of Chinese special automobile manufactory.

Since being founded in 1998, ChengLi has continually worked to improve its production processes and production tools. Qualified personnel ensure the highest standards of quality control in the manufacture of the principal components and the final assembly. Covering an area of 8 hectares more than 5000 vehicles are produced each year. Our company has independent export right, the product had delivery to many countries around the word. Take 2008 for example, the amount of export reach 2000 units. The registered Labels CLW is well known in these years.

Based on high quality and advanced technology, the leading varieties include more than 200 types of trucks such as water truck, garbage truck, fecal and sewage suction truck,refuse compactor, fuel tank, aerial platform, truck with crane, dump truck, van truck, trailers, fire-fighting truck, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, LPG tank, etc. All products have passed the ISO9001-2000 and t 3C(China Compulsory Certification) standard.

CLW .jpg


Main Products offered by CLW



CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
