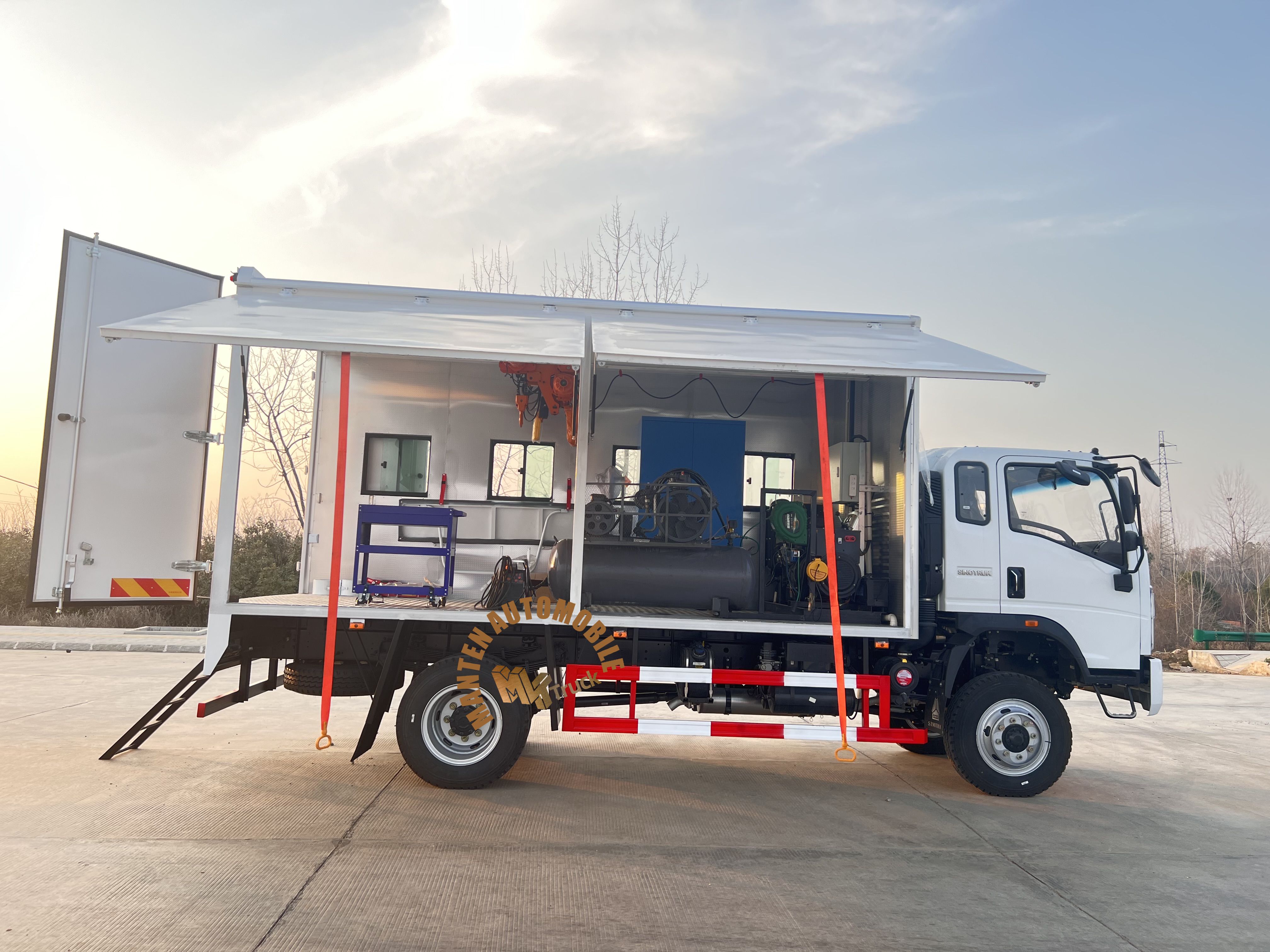

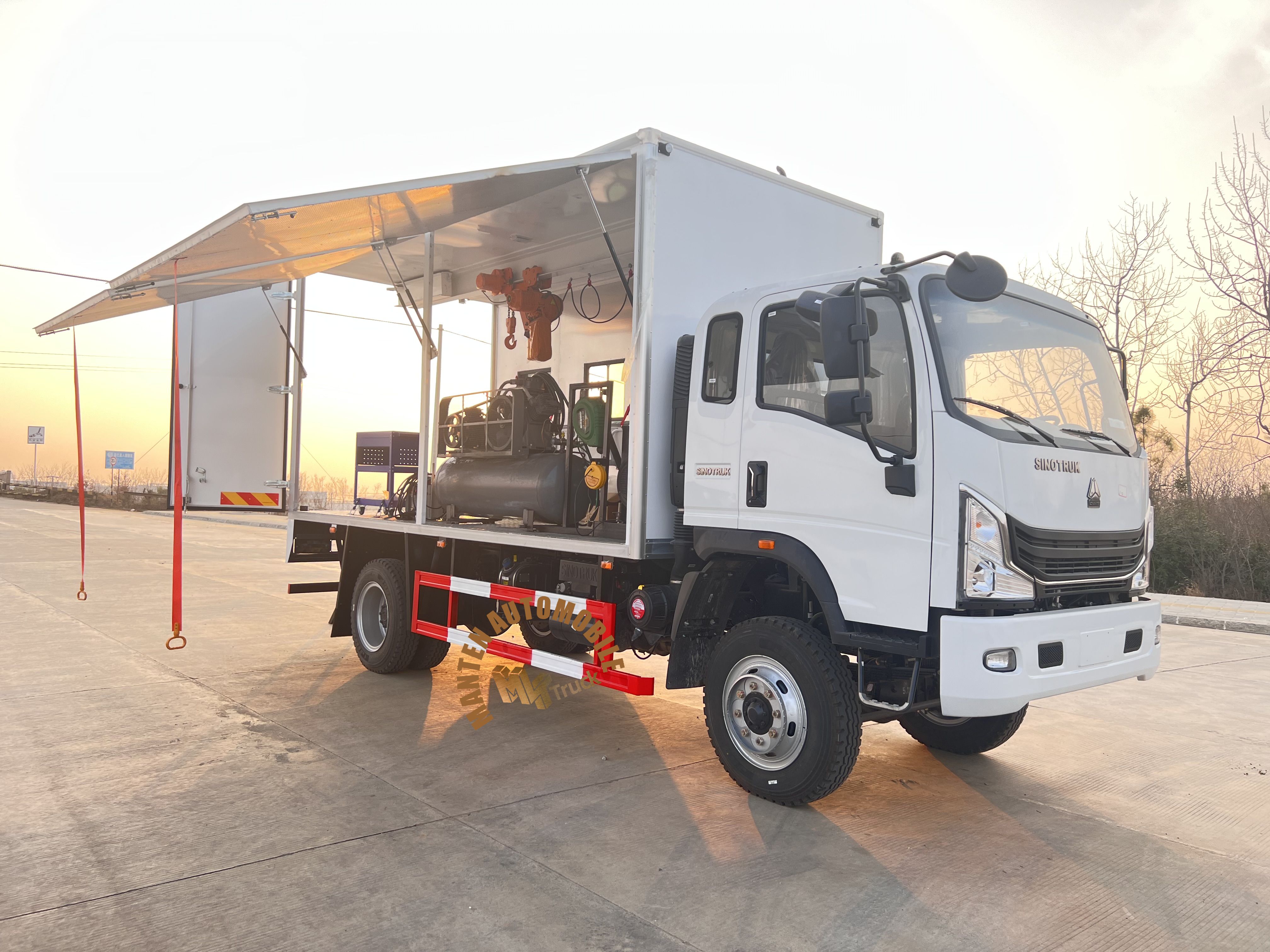

Mobile Outdoor Equipment Construction Machinery Sinotruck HOWO 4X4 Awd Maintenance Service Vehicle Truck

workshop truck (also called maintenance truck, mobile workshop truck, repairing truck, Workshop light truck, Maintaining truck, maintenance vehicle, Mobile Workshop, Rescue vehicle etc.)  is used to supply intended lube for trucks and machinery which are not convenient to go to the maintenance workshop or it's too far away from working place.

Workshop truck is usually quipped with air compressor, grease pump and lubrication equipments. Due to the rigid substructure and the robust shelter configuration, the lube truck has a good performance going cross country and less limitations for the place of deployment.

Workshop truck could used as a mobile workshop if equipped with an on-board power supply, versatile tool sets(mechanic tool kit, electrician tool kit), working floodlight, securing straps, etc as special requirements.
Availability:
Quantity:
  • FY5160WST

Workshop truck (also called maintenance truck, mobile workshop truck, repairing truck, Workshop light truck, Maintaining truck, maintenance vehicle, Mobile Workshop, Rescue vehicle etc.) is used to supply intended lube for trucks and machinery which are not convenient to go to the maintenance workshop or it's too far away from working place.

Workshop truck is usually quipped with air compressor, grease pump and lubrication equipments. Due to the rigid substructure and the robust shelter configuration, the lube truck has a good performance going cross country and less limitations for the place of deployment.

Workshop truck could used as a mobile workshop if equipped with an on-board power supply, versatile tool sets(mechanic tool kit, electrician tool kit), working floodlight, securing straps, etc as special requirements.


SPECIFICATIONS of Mobile outdoor equipment construction machinery sinotruck howo 4x4 AWD maintenance service vehicle truck
General Information Wheelbase 3800mm
Length 6760mm
Width 2030mm
Height 3150mm
Front Overhang 1015 mm
Rear Overhang 1930 mm
Total Mass 6650 kg
Truck Pay loading 5880 kg
Engine Model I-SUZU 4KH1-TC
Horsepower 130hp @3400rpm
Torque 280 N.m @1700/ r/min
Displacement 2.999L/ 4 cylinders
Emission Standard Euro 3
Fuel Tank Capacity 100liters
Clutch Disc 325mm
Gearbox Model MSB-5S/ 5M 5+1 Speed
Torque of Gearbox 230/ 260/ 280 N.m
Max. Geared Speed 100 km/h
Chassis Frame 172mmx65mmx4+3mm
Rear Axle Rating 4,389kg
Front Axle Rating 2,261kg; Rigid I beam
Quantity 6+1spare
Tire Size 7.00 -16, (ALL WHEELS)
Ply Rating 14PR
Diesel Generator Power 24KW/ 30KVA
Frequency 50 (Hz)
Output Voltage 400V/ 230V
Rated Current 43.2A
Speed 1500 (RPM)
Diesel Engine Make CUMMINS
Cylinders& Structure 4/L
Bore x Stroke 102x120 mm
Starting DC24V electric starting
Injection Direct
Insulation Class H
Aspiration Turbocharged
Welding Rectifier Nominal Capacity 24KV/A
Operation Manual
Drive Type Electric
Rated Input Voltage 380v
Rated Output Current 315A
Rated Frequency 50HZ
Current Range 80-315A
Open-Circuit Voltage 70V
Welding Contact arc
Welding Cable 2x15m
Electrode Holder 300A
Cooling Forced air cooling
Insulation Class F
Flame Cutoff Equipment Torch Working Pressure 50 (KN)
Welding/ Cutting Thickness 50 (mm)
Torch Length 500 (mm)
Oxygen Cylinder Not included
Propane Cylinder Not included
Oxygen Reducer 1 unit
Hose 2x15m

C%GI1BWOK2)G_8`%Dmaintenance truckrepairing service truck
