FY5160WST

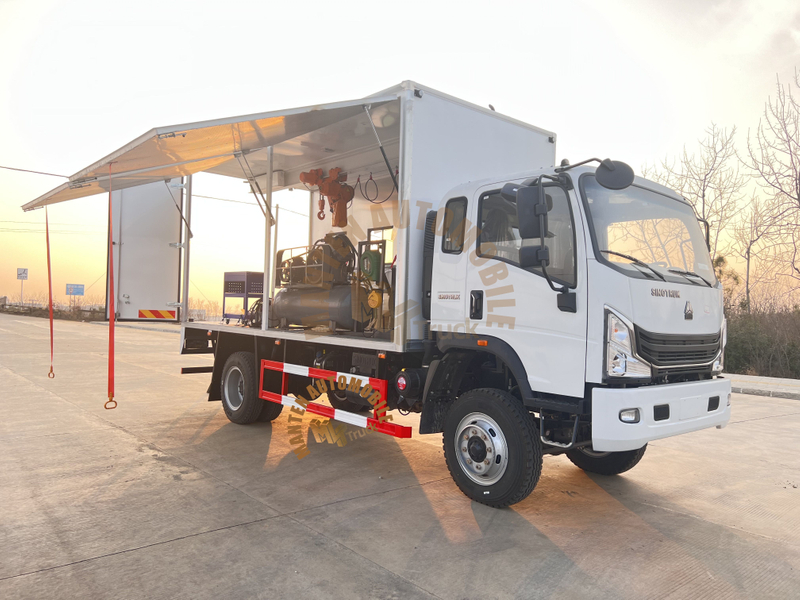

Workshop truck (also called maintenance truck, mobile workshop truck, repairing truck, Workshop light truck, Maintaining truck, maintenance vehicle, Mobile Workshop, Rescue vehicle etc.) is used to supply intended lube for trucks and machinery which are not convenient to go to the maintenance workshop or it's too far away from working place.
Workshop truck is usually quipped with air compressor, grease pump and lubrication equipments. Due to the rigid substructure and the robust shelter configuration, the lube truck has a good performance going cross country and less limitations for the place of deployment.
Workshop truck could used as a mobile workshop if equipped with an on-board power supply, versatile tool sets(mechanic tool kit, electrician tool kit), working floodlight, securing straps, etc as special requirements.
| SPECIFICATIONS of Mobile outdoor equipment construction machinery sinotruck howo 4x4 AWD maintenance service vehicle truck | ||
| General Information | Wheelbase | 3800mm |
| Length | 6760mm | |
| Width | 2030mm | |
| Height | 3150mm | |
| Front Overhang | 1015 mm | |
| Rear Overhang | 1930 mm | |
| Total Mass | 6650 kg | |
| Truck Pay loading | 5880 kg | |
| Engine | Model | I-SUZU 4KH1-TC |
| Horsepower | 130hp @3400rpm | |
| Torque | 280 N.m @1700/ r/min | |
| Displacement | 2.999L/ 4 cylinders | |
| Emission Standard | Euro 3 | |
| Fuel Tank Capacity | 100liters | |
| Clutch Disc | 325mm | |
| Gearbox Model | MSB-5S/ 5M 5+1 Speed | |
| Torque of Gearbox | 230/ 260/ 280 N.m | |
| Max. Geared Speed | 100 km/h | |
| Chassis Frame | 172mmx65mmx4+3mm | |
| Rear Axle Rating | 4,389kg | |
| Front Axle Rating | 2,261kg; Rigid I beam | |
| Quantity | 6+1spare | |
| Tire Size | 7.00 -16, (ALL WHEELS) | |
| Ply Rating | 14PR | |
| Diesel Generator | Power | 24KW/ 30KVA |
| Frequency | 50 (Hz) | |
| Output Voltage | 400V/ 230V | |
| Rated Current | 43.2A | |
| Speed | 1500 (RPM) | |
| Diesel Engine Make | CUMMINS | |
| Cylinders& Structure | 4/L | |
| Bore x Stroke | 102x120 mm | |
| Starting | DC24V electric starting | |
| Injection | Direct | |
| Insulation Class | H | |
| Aspiration | Turbocharged | |
| Welding Rectifier | Nominal Capacity | 24KV/A |
| Operation | Manual | |
| Drive Type | Electric | |
| Rated Input Voltage | 380v | |
| Rated Output Current | 315A | |
| Rated Frequency | 50HZ | |
| Current Range | 80-315A | |
| Open-Circuit Voltage | 70V | |
| Welding | Contact arc | |
| Welding Cable | 2x15m | |
| Electrode Holder | 300A | |
| Cooling | Forced air cooling | |
| Insulation Class | F | |
| Flame Cutoff Equipment | Torch Working Pressure | 50 (KN) |
| Welding/ Cutting Thickness | 50 (mm) | |
| Torch Length | 500 (mm) | |
| Oxygen Cylinder | Not included | |
| Propane Cylinder | Not included | |
| Oxygen Reducer | 1 unit | |
| Hose | 2x15m | |
