| Quantity: | |
|---|---|
CLW507
Donfeng Sinotruk JAC ISUZU
EQ107
95HP 5000liter 1000gallon 7cbm 10cbm 2000gallon Fuel Refilling Tank Truck Lorry with Filling Dispenser
Purpose of truck: For fuel,oil,petroleum,crude oil
Equipped with filling gun and fuel refilling dispenser
Thechnique Specification
Item No. | Parameters |
Overall Dimension | 7000x2120x2600 mm |
Gross Vehicle Weight | 8495 kg |
Curb weight | 3890 kg |
Loading Weight | 4410 kg |
Wheel Base | 3800mm |
Front/Rear Tread | 1770 / 1586 mm |
Front/Rear Axle Loading | 3000 / 4495 kg |
Approach/Departure Angle | 19 / 10 degree |
Engine | Chaochai Diesel Engine CY4102, Watering Cooling, Four Stroke, 4 Cylinder in Line, Direct Injection |
Engine horsepower | 113 HP Euro II |
Displacement | 3.856 L(Diesel) |
Full loading Fuel Consumption Rate | Maximum 196 g/kW.h |
Max Driving Speed | 90 km/h |
Cabin | 3 Passenger Allowed, Left Hand Driving, White color |
Tire | 7.50-16 12PR, 6 pieces with one spare tire |
Tank Capacity | 6000 Liters |
Tank Material | Q235 high tension steel, 5mm thick carbon Steel, With 4 separated compartments, Customized tank color, can also paint customer's logo or advertisement. |
Oil Filling System | 1. Chinese Oil Filling Counter with digital displayer (at least 4 digits) 2. Oil Filling Nozzle & rubber tubes, 3. Filling Pump 4. Follow Meter |

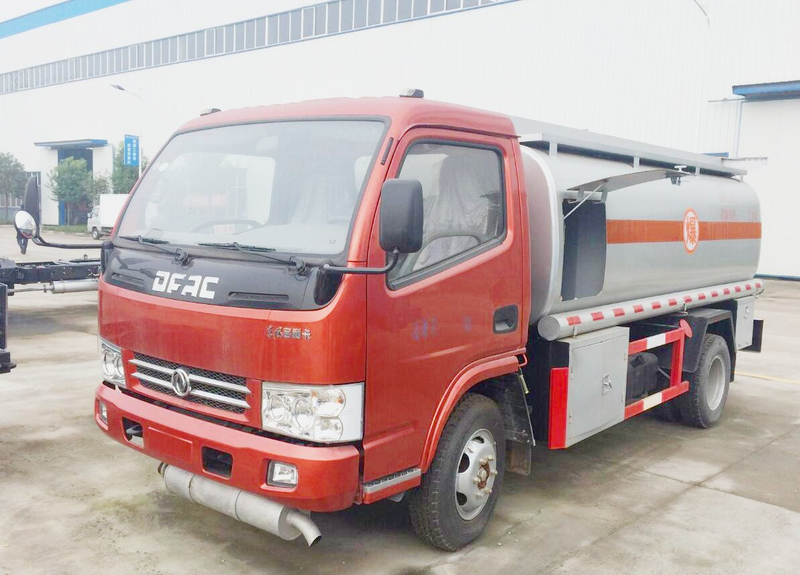

Picture for Reference
Advantages of Fuel Tanker Truck & Chemical Liquid Trucks
The tank used advanced butt welding technology using high pressure gas leak detection after finished the tanks, so that the tanks has the characteristics of high strength, stable, sage, etc.
Alcohol, chemical tankers produced by South Korean imports of stainless steel, thickness can be 4 5 8mm.
All tankers of sulfuric acid, hydrochloric acid, alkali liquor are using roto molding by once. Thickness can be 12 to 16mm. After welding the tank using sand blasting process, achieved anti-rust.
According to the use of tankers, can choose centrifugal pumps, gear pumps, copper gear pumps, stainless steel pumps, it has big flow, fast speed of suction and some other characteristics. Also can choose other models of suction pumps.
We can produce different series of heating tankers and insulation tankers.
Factory Scene
More trucks
Shipment
