Japan Brand New Small 5000liters Fuel Refueling Tanker Truck

Japan Brand New Small 5000liters fuel refueling tanker truck
Availability:
Quantity:
  • CLW

  • CLW

  • CLW

CLW 5CBM ISUZ Refuel Truck

(Fuel Bowser)

Item No.

Parameters

Overall Dimension

5995*2100*2500 mm/ 5900*2100*2500 mm

Drive model

4x2, new condition

Gross Vehicle Weight

7350 kg

Curb Weight

2870 kg

Loading Volume

5cbm

Wheel Base

3300 mm

Front/rear Overhang

1032/1663 mm

Front/rear Tread

1506/1530 mm

Approach/Departure Angle

19/14  degree

Engine

Chaoyang Engine, CY4102 C3F, Diesel Engine, Four Stroke,

4 Cylinder in line.

Engine horsepower

95 HP Euro III

Displacement

3.96 L(Diesel)

Full loading Fuel Consumption Rate

210G/KW.H

Max Driving Speed

90 km/h

Gear Box

5 Forward Gear, 1 Backward Gear

Tire

7.00-16, 6 pieces with 1 spare tire.

Volume Capacity

5CBM

Thickness of the tank

5mm  Q235 carbon steel

Dimension

4050*1750*1150 mm

Capacity

5CBM

Manhole cover

∮500mm

Discharging Pipe

4”rubber hose, 2 pcs, 6m long

Compartment

1 compartments, 1 Pumps.1 bottom valves etc.


Pump info.

Pump Model

65YHCB-30

80YHCB-60

100YHCB-100

Flow Q(m3/h)

30

60

100

Working Pressure(MPa)

0.6

0.6

0.6

Revolving Speed(r/min)

960

960

960

Efficiency η(5%)

66

70

72

Allow Suction Height (m)

5

5

5

Power(kw)

7.1

14.2

22.3

Motor(kw)

5.5

11

22


flow meter

Specification of Oil Dispenser

 Flow Rate:

 5L/min - 60L/min

Maxmium Allowed Tolerance

 +/-0.3%

 Power:

 DC10V-DC30V

Working Temperature:

 -20 to 50 ℃

 Working Humidity:

 30%-90%

Working Pressure:

 1.8-2.0 Bar

 Hose Material:

 Black Rubber

 Hose Length:

 6 Meter (Length can be longer as per request)

 Digit Display
( Single Filling)

 Unit Price:

0.00-9.99 L/USD

Volume Unit  &
Currency can be changed as request,

 Filling Volume:

0.00-9999.99 Liters

 Price Amount:

0.00-9999.99 USD

 Digit Display
( Total Filling)

 Filling Volume:

0.00-999999.99 Liters

 Price Amount:

0.00-999999.99 USD

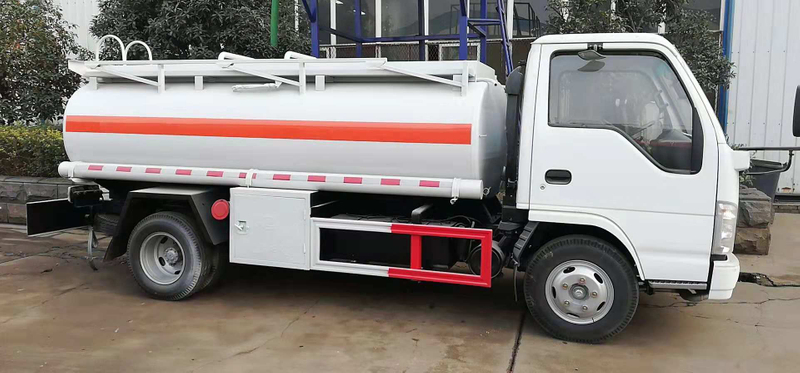

Picture for Reference


Fuel refilling tank truck.png

Advantages of Fuel Tanker Truck & Chemical Liquid Trucks

  •  The tank used advanced butt welding technology using high pressure gas leak detection after finished the tanks, so that the tanks has the characteristics of high strength, stable, sage, etc.

  •  Alcohol, chemical tankers produced by South Korean imports of stainless steel, thickness can be 4 5 8mm.

  •  All tankers of sulfuric acid, hydrochloric acid, alkali liquor are using roto molding by once. Thickness can be 12 to 16mm. After welding the tank using sand blasting process, achieved anti-rust.

  •  According to the use of tankers, can choose centrifugal pumps, gear pumps, copper gear pumps, stainless steel pumps, it has big flow, fast speed of suction and some other characteristics. Also can choose other models of suction pumps.

  •  We can produce different series of heating tankers and insulation tankers.


Factory Scene

factory scene (42).jpg

More trucks



Shipment

sea shipping 1.jpg
