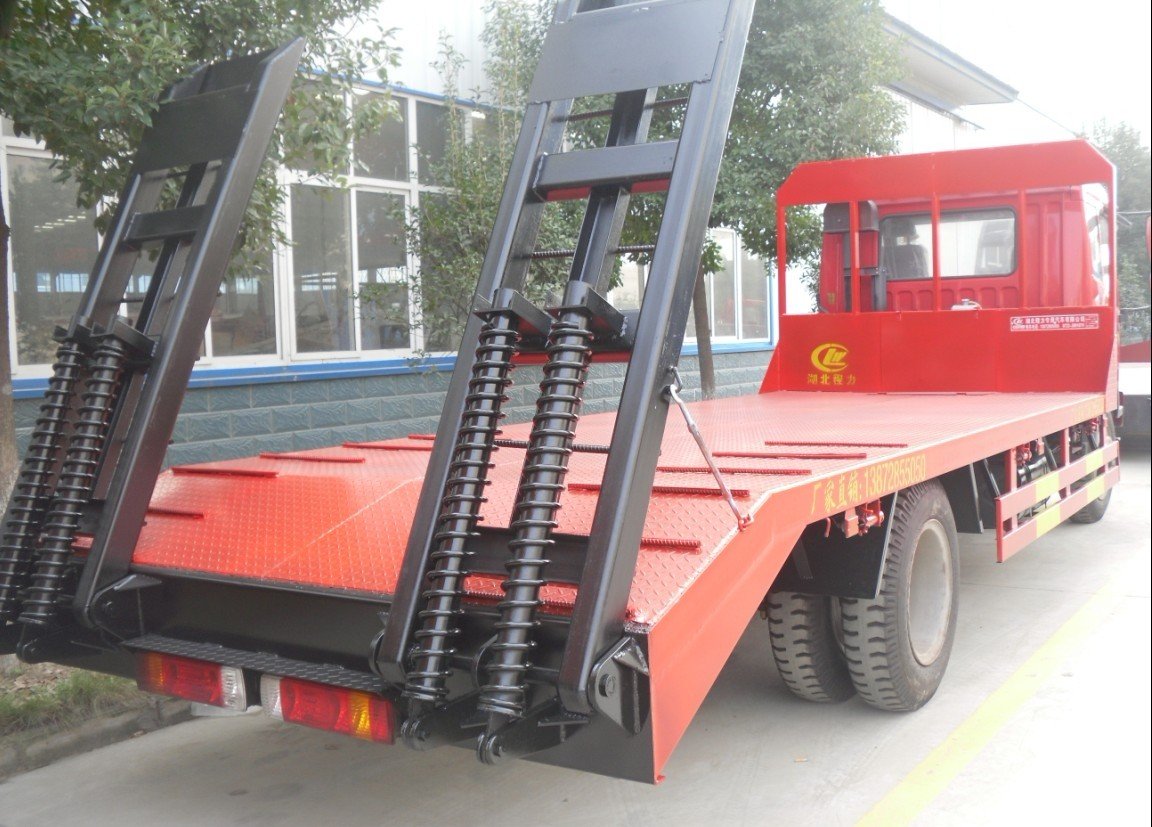

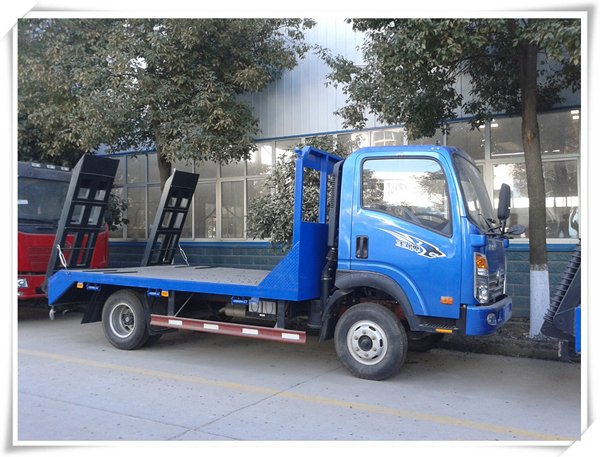

Flatbed trucks are also known as construction machinery, transport vehicles, flatbed trucks, trailers, mainly for the transport of some excavators, loaders, harvesters as the same can not be disassembled objects. Flat truck is a common heavy truck in daily life. This kind of truck is widely used in factories, construction sites and other large scale production or engineering sites, and the bearing capacity of flat transport vehicles plays an important role in the process of economic development.
Chassis brand | CDW | ||
Chassis model | CDW1040 | ||
Drive type | 4X2 | ||
Overall dimension (L*W*H) (mm) | 5995×2400×2430 | ||
Front / Rear suspension (mm) | 1285/1350 | ||
Wheel base (mm) | 3360 | ||
Axle No. | 2 | ||
Front / Rear track (mm) | 1670/1590 | ||
Approach/Departure angle(°) | 24/18 | ||
Axle Load(kg) | 2100/5000 | ||
Curb weight (kg) | 2805 | ||
Engine Model | YC4FA115-40 | ||
Horsepower (hp) | 115 | ||
Displacement / power (ml/kw) | 2982/85 | ||
Emission Standard | Euro 4 | ||
Loading capacity(t) | 1t 2t 3t 4t 5t 6t | ||
Tire | 8.25-16LT 6PR,8.25R16 6PR,,7.50-16LT 6PR,7.50R16LT 6PR | ||
Tire No. | 6pcs with one spare tire | ||
Cabin type | Flat roof cab | ||
ladder | Mechanical type or Hydraulic type | ||
Upper | Brand | CLW | |
Manufacturer | ChengLi Speical Automobile Co.,Ltd | ||
Material | Carbon steel | ||
Remark | We can do it according to your order. |
Flatbed trucks are also known as construction machinery, transport vehicles, flatbed trucks, trailers, mainly for the transport of some excavators, loaders, harvesters as the same can not be disassembled objects. Flat truck is a common heavy truck in daily life. This kind of truck is widely used in factories, construction sites and other large scale production or engineering sites, and the bearing capacity of flat transport vehicles plays an important role in the process of economic development.
Chassis brand | CDW | ||
Chassis model | CDW1040 | ||
Drive type | 4X2 | ||
Overall dimension (L*W*H) (mm) | 5995×2400×2430 | ||
Front / Rear suspension (mm) | 1285/1350 | ||
Wheel base (mm) | 3360 | ||
Axle No. | 2 | ||
Front / Rear track (mm) | 1670/1590 | ||
Approach/Departure angle(°) | 24/18 | ||
Axle Load(kg) | 2100/5000 | ||
Curb weight (kg) | 2805 | ||
Engine Model | YC4FA115-40 | ||
Horsepower (hp) | 115 | ||
Displacement / power (ml/kw) | 2982/85 | ||
Emission Standard | Euro 4 | ||
Loading capacity(t) | 1t 2t 3t 4t 5t 6t | ||
Tire | 8.25-16LT 6PR,8.25R16 6PR,,7.50-16LT 6PR,7.50R16LT 6PR | ||
Tire No. | 6pcs with one spare tire | ||
Cabin type | Flat roof cab | ||
ladder | Mechanical type or Hydraulic type | ||
Upper | Brand | CLW | |
Manufacturer | ChengLi Speical Automobile Co.,Ltd | ||
Material | Carbon steel | ||
Remark | We can do it according to your order. |
Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market.
1.Quality control: our company truck pass ISO,CCC,BV certification.
2.Design capacity :Our factory have over 200 technicians and designers.
3. Exhibition: our factory attend Canton Fair every year.
4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.
5.Our company cooperate with famous chassis manufacturers, such as DONGFENG, FAW, SHINOTRUK, IVECO, FOTON, and etc.
Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market.
1.Quality control: our company truck pass ISO,CCC,BV certification.
2.Design capacity :Our factory have over 200 technicians and designers.
3. Exhibition: our factory attend Canton Fair every year.
4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.
5.Our company cooperate with famous chassis manufacturers, such as DONGFENG, FAW, SHINOTRUK, IVECO, FOTON, and etc.
