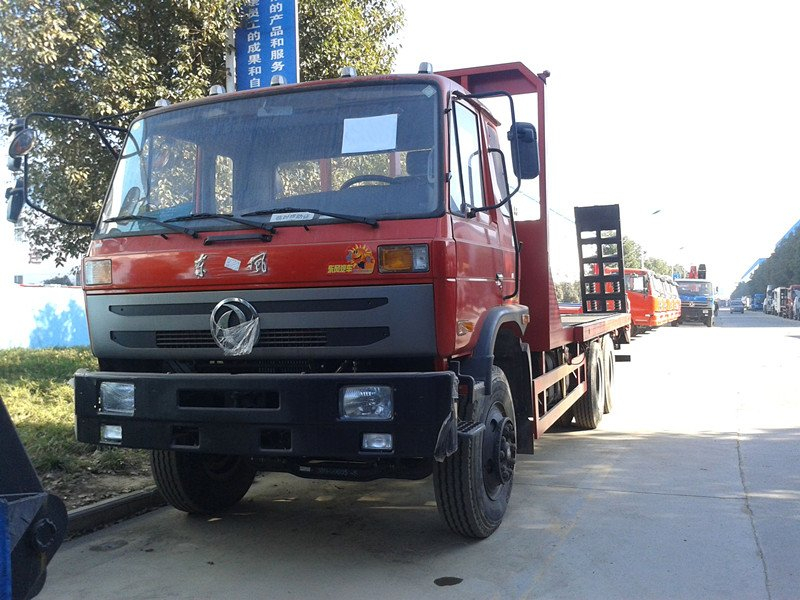

Dongfeng Brand 6X4 20 Ton 210HP Flatbed Self Loading Transportation Truck

Flatbed trucks are also known as construction machinery, transport vehicles, flatbed trucks, trailers, mainly for the transport of some excavators, loaders, harvesters as the same can not be disassembled objects. Flat truck is a common heavy truck in daily life. This kind of truck is widely used in factories, construction sites and other large scale production or engineering sites, and the bearing capacity of flat transport vehicles plays an important role in the process of economic development.

Quantity:
  • CLW

Dongfeng Brand 6X4 20 Ton 210HP Flatbed Self Loading Transportation Truck


Specification

Drive Model

6X4 RHD

Vehicle Main Dimensions

Dimensions(L x W x H)(mm)

10080×2500×3500

Wheel base (mm)

5400+1300

Overhang (front/rear) (mm)

1250/2900

Wheel track (front/rear) (mm)

2005,1860/1860

Approach/Departure angle(°)

25/15

Weight in KGS

Curb Weight

10325

GVW.

25000

Max. driving speed(km/h)

80

Engine

Model

B210 33

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

210HP

Emission standard

Euro III

engine capacity(L)

6700

Gearbox

8 forwards & 1 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

250

Tire

10.00-20 tire , 10 + 1(spare)

Brakes

dual circuit compressed air brake

Flat Deck system

7100mm*2480mm working deck , with 5mm thickness floor plate.
With Mechanical ramp

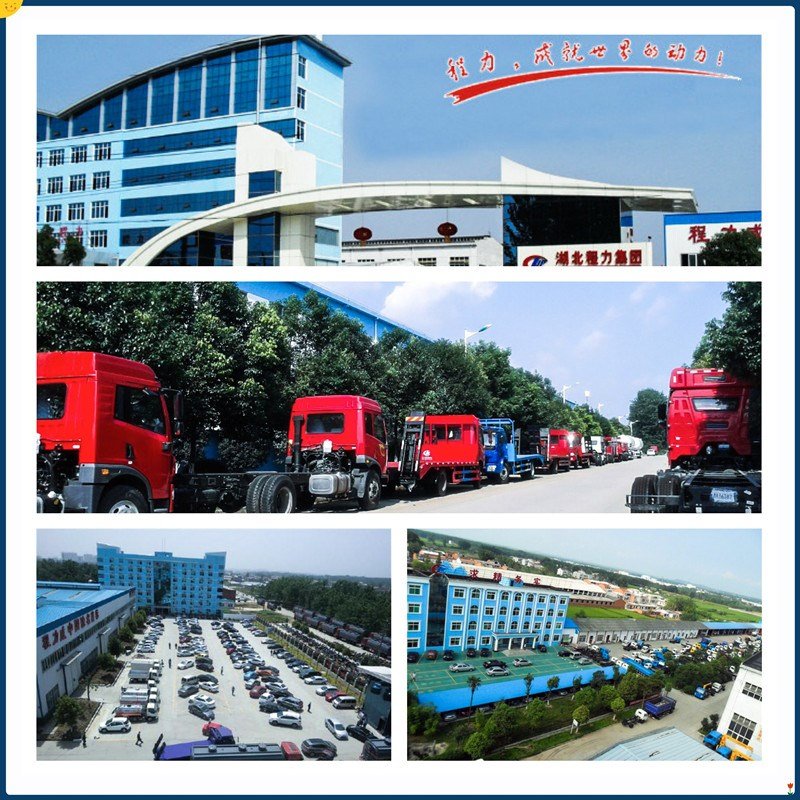

Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market.



   1.Quality control: our company truck pass ISO,CCC,BV certification.

    2.Design capacity :Our factory have over 200 technicians and designers.

    3. Exhibition: our factory attend Canton Fair every year.

    4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.

    5.Our company cooperate with famous chassis manufacturers, such as DONGFENG, FAW, SHINOTRUK, IVECO, FOTON, and etc.

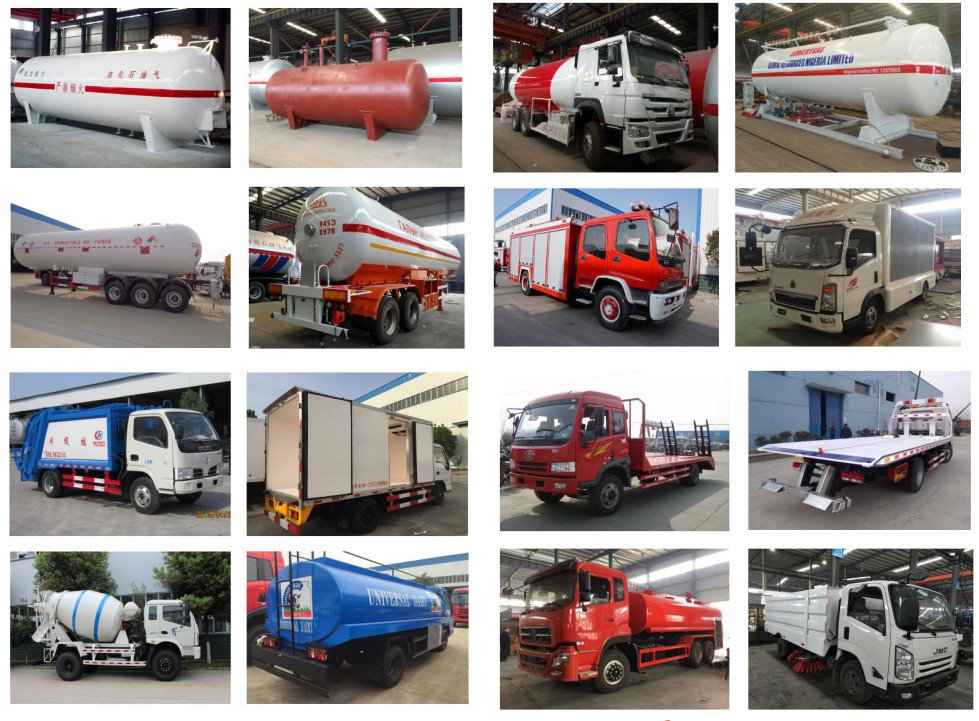

Tanker Truck / Trailer Series:  LPG, Oil, Chemical Liquid, Water, Milk, Cement Power

Sanitary & Cleaning Truck Series:  Sweep Truck, Garbage Truck, Sewage Suction Truck, High-Pressure Cleaning Truck

Box Truck Series:  Refrigerator Truck, Van Truck, LED Van Truck

Engineer Truck Series:  Dump Truck, Crane Truck, Concrete Mixer Truck, Concrete Pump Truck

Operational Truck Series:  High Attitude Truck, Wrecker Truck, Fire-Fighting Truck


CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
