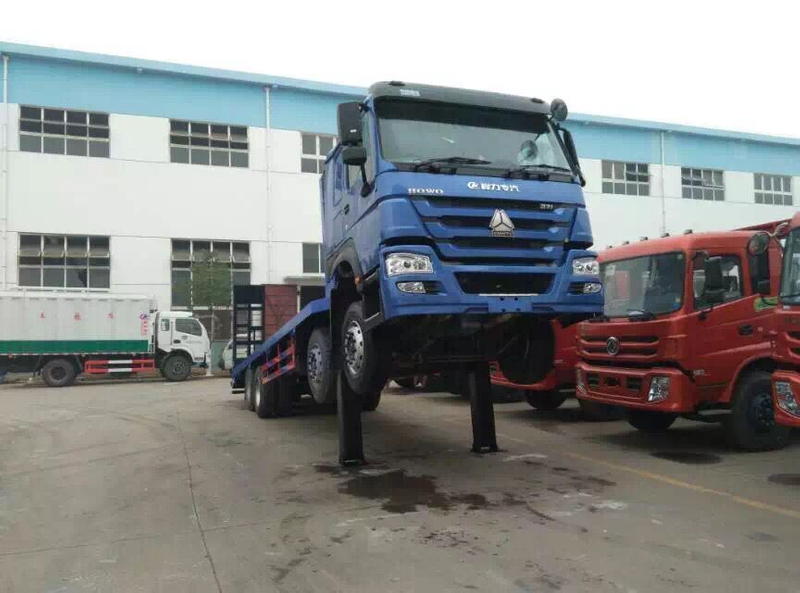

CLW Manufacturer Sinotruk 336 HP 8X4 Flatbed Transportation Truck

Flatbed trucks are also known as construction machinery, transport vehicles, flatbed trucks, trailers, mainly for the transport of some excavators, loaders, harvesters as the same can not be disassembled objects. Flat truck is a common heavy truck in daily life. This kind of truck is widely used in factories, construction sites and other large scale production or engineering sites, and the bearing capacity of flat transport vehicles plays an important role in the process of economic development.

Quantity:
  • CLW

CLW Manufacturer Sinotruk 336 HP 8X4 Flatbed Transportation Truck


Flatbed trucks are also known as construction machinery, transport vehicles, flatbed trucks, trailers, mainly for the transport of some excavators, loaders, harvesters as the same can not be disassembled objects.


Flat truck is a common heavy truck in daily life. This kind of truck is widely used in factories, construction sites and other large scale production or engineering sites, and the bearing capacity of flat transport vehicles plays an important role in the process of economic development.


Specification

Drive Model

8X4

Vehicle Main Dimensions

Dimensions(L x W x H)(mm)

11500×2500×3120

Wheel base (mm)

1800+3000+1300

Overhang (front/rear) (mm)

1250/2950

Wheel track (front/rear) (mm)

1960/1960,1860/1860

Approach/Departure angle(°)

28/17

Weight in KGS

Curb Weight

10605

GVW.

30700

Max. driving speed(km/h)

80

Engine

Model

WD615.69

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

336HP

Emission standard

Euro II

engine capacity(L)

8300

Gearbox

12 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

350

Tire

11.00R20 tire , 12 + 1(spare)

Brakes

dual circuit compressed air brake

Flat Deck system

9800mm*2480mm working deck , with 5mm thickness floor plate.
With Mechanical ramp


Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market.



   1.Quality control: our company truck pass ISO,CCC,BV certification.

    2.Design capacity :Our factory have over 200 technicians and designers.

    3. Exhibition: our factory attend Canton Fair every year.

    4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.

    5.Our company cooperate with famous chassis manufacturers, such as DONGFENG, FAW, SHINOTRUK, IVECO, FOTON, and etc.

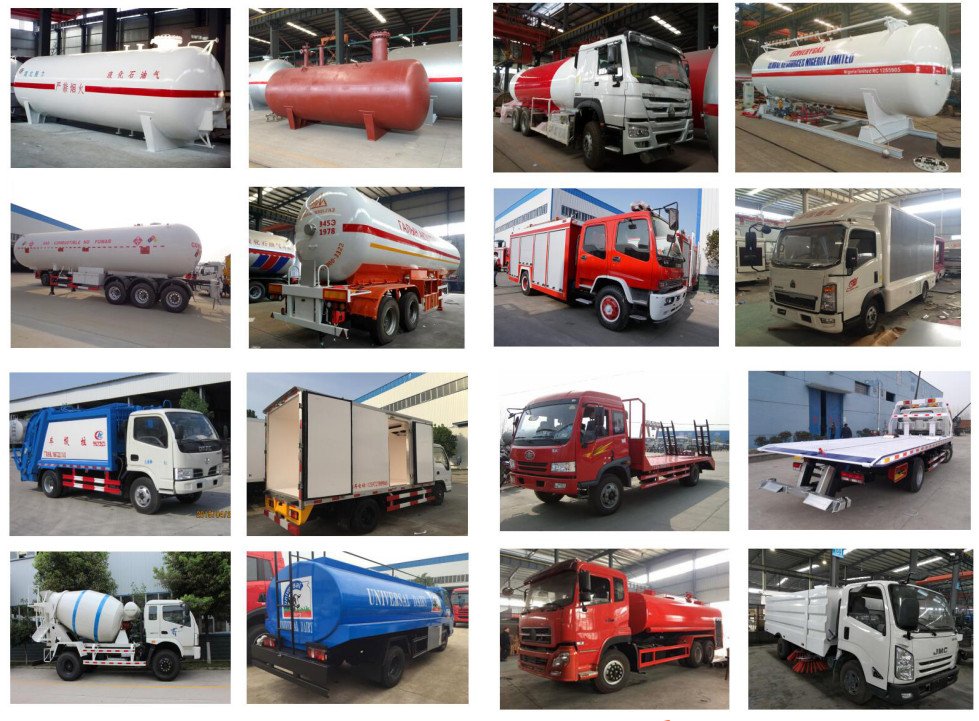

Tanker Truck / Trailer Series:  LPG, Oil, Chemical Liquid, Water, Milk, Cement Power

Sanitary & Cleaning Truck Series:  Sweep Truck, Garbage Truck, Sewage Suction Truck, High-Pressure Cleaning Truck

Box Truck Series:  Refrigerator Truck, Van Truck, LED Van Truck

Engineer Truck Series:  Dump Truck, Crane Truck, Concrete Mixer Truck, Concrete Pump Truck

Operational Truck Series:  High Attitude Truck, Wrecker Truck, Fire-Fighting Truck



CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
