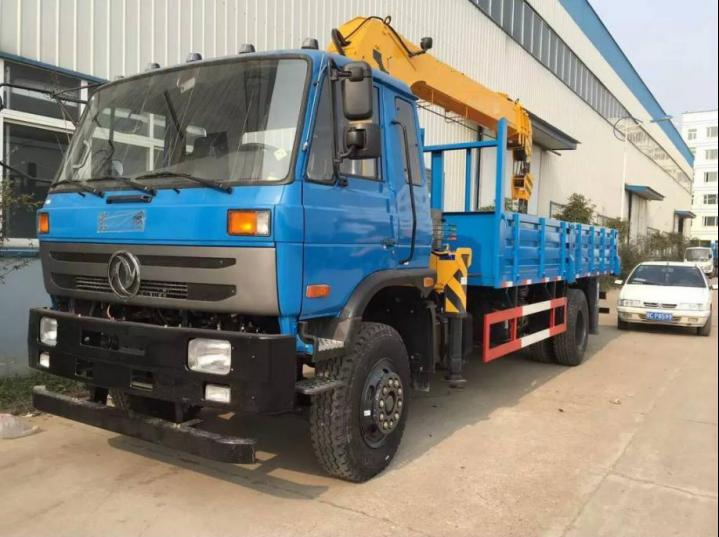

Dongfeng 4X2 190HP 5T Cargo Truck Mounted Crane
Crane truck is also called crane with truck, truck mounted crane, is a kind of equipment that can realize the lifting, swinging and hoisting of goods, through the hydraulic lifting and telescopic system.
Crane truck is mostly used in stations, warehouses, docks, construction sites, field rescue and other places.
Crane truck is mostly used in stations, warehouses, docks, construction sites, field rescue and other places.
It can be equipped with different lengths of cargo boxes and different tonnage cranes. You can also install water tank inside the cargo box, to the truck mounted sprinkler.
Parameters | |
Overall dimensions(L x W x H)(mm) | 7270×2470×3600 |
Cargo body | 4820mm*2050mm*600 mm |
Curb Weight | 4990kg |
GVW | 12500kg |
Payload | 8000kg |
Wheel base | 3950mm |
Wheel track (front/rear) (mm) | 1750/1640 |
Front/Rear axles loading capacity | 5000/7500 |
Engine | Cummins inline four-cylinder, water-cooled, pressurized cold, direct injection |
Engine horsepower | 190HP Euro III |
Gearbox | 6 forwards & 1 reverse |
Displacement | 5900 ML(diesel) |
Cabin | Dongfeng DLK cab ,with three seats, 70°hydraulically tillable to the front. |
Max Driving Speed | 95km/h |
Tire | 7.50-16 nylon tires with one spare |
Crane system | 5 T telescopic crane, Chengli brand |
