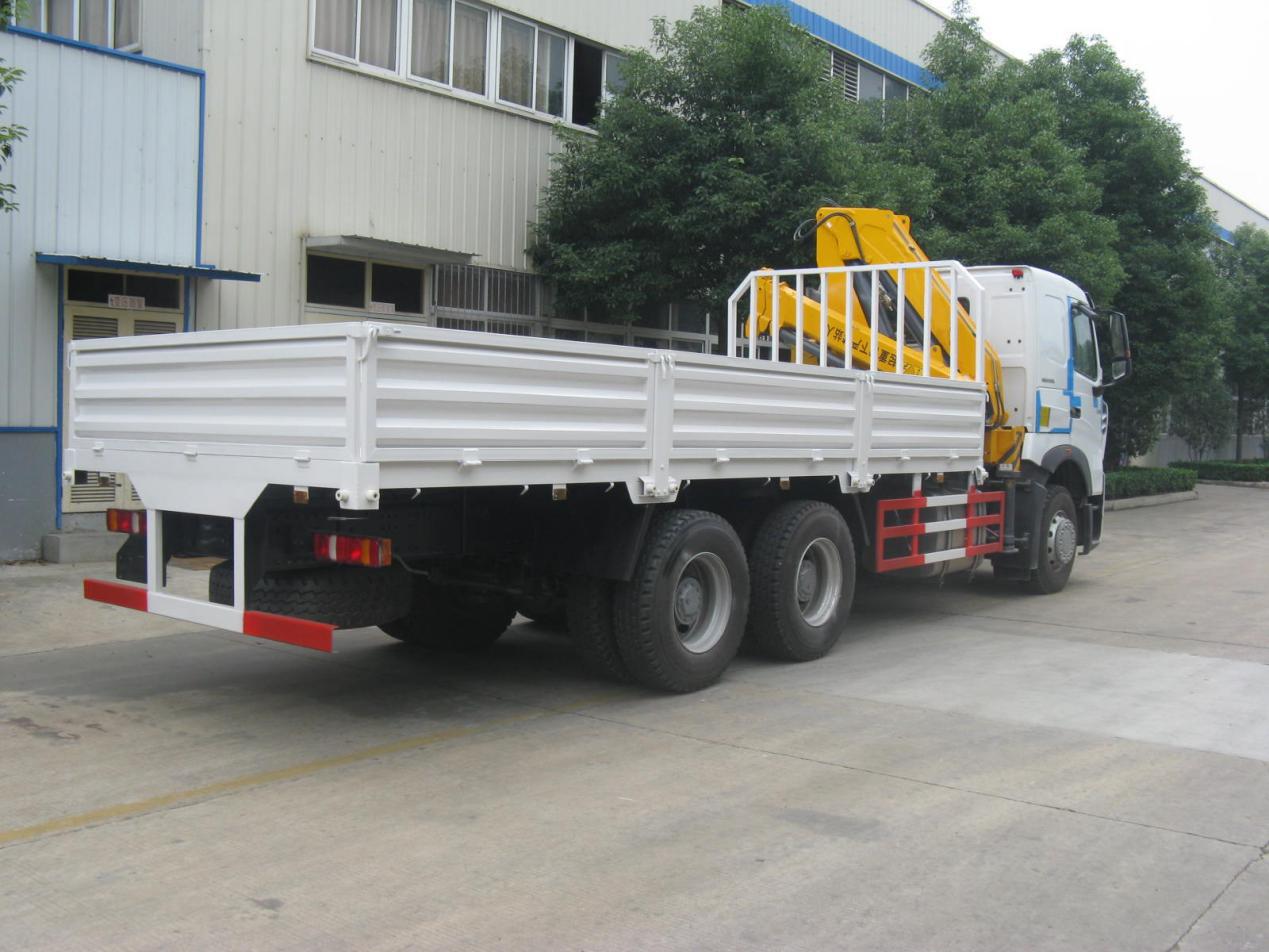

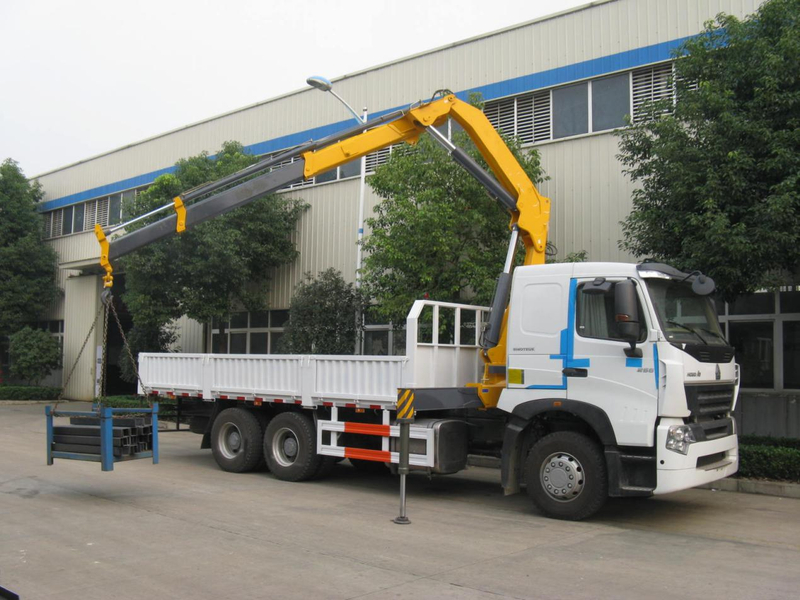

SINOTRUK HOWO A7 6×4 10T Cargo Truck Mounted Telescopic Boom Type Crane
Crane truck is also called crane with truck, truck mounted crane, is a kind of equipment that can realize the lifting, swinging and hoisting of goods, through the hydraulic lifting and telescopic system.
Crane truck is mostly used in stations, warehouses, docks, construction sites, field rescue and other places.
Crane truck is mostly used in stations, warehouses, docks, construction sites, field rescue and other places.
It can be equipped with different lengths of cargo boxes and different tonnage cranes. You can also install water tank inside the cargo box, to the truck mounted sprinkler.
1 telescopic boom or knucle boom all available
2 crane brand :CLW,ZOOMLION, SMJ, SANY or others
3 Crane capacity : 2 ton ,3.2 ton ,4 ton ,5 ton ,6.3 ton ,7 ton ,8 ton ,10 ton ,12 ton ,14 ton ,16 ton ,20 ton ,25 ton ,30 ton ,40 ton ,60 ton ,70 ton ,80 ton ,100 ton ,120 ton ,150 ton etc
4. Chassis brand : Sinotruk, Dongfeng,Foton, ISUZU, JAC, JMC, FAW, etc.
Item No. | Parameters |
Overall dimensions(L x W x H)(mm) | 10600×2500×3650 |
Cargo body | 6200×2500×1000 mm |
Curb Weight | 15000kg |
GVW | 39000kg |
Payload | 24000kg |
Wheel base | 4600+1400mm |
Wheel track (front/rear) (mm) | 2022/1830 |
Front/Rear axles loading capacity | 1x7000 / 2x16000 |
Engine | WD615.47 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
Engine horsepower | 371 HP EuroII |
Gearbox | HW19710, 10-speed forward and 2 reverse gear |
Steering | ZF8098, from Germany |
Cabin | A7-W cab, with one bed and air condition |
Max Driving Speed | 101km/h |
Tire | 2.00R20 All Steel Radial Tyre, 11 pieces with one spare |
Crane specifications | Brand : Chengli |
Type: Knuckle | |
Max lift capacity: 10,000 kg | |
Max working radius 10 m, Max lifting height : 12.5 m |
