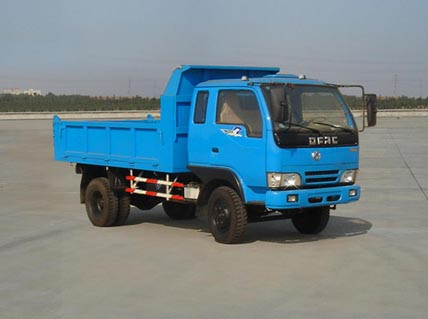

Dongfeng 4cbm(5ton) 89hp 4*2 LHD Euro 2 dump truck

CLW Brand DONGFENG 6X4 340HP Dump Truck is mainly used for engineering projects to transport dust , sand, rock ,stone,etc, also used in mining and coal site. This truck could be hermetic type. This type of truck adopt front single lift or twin cylinder lift ,stablely rise, easy to operate, rear dumping.

Quantity:
  • CLW
  • CLW

Specification of 4cbm(5ton) Dongfeng 4*2 LHD dump truck



Description

 Dongfeng 4cbm(5ton) 89hp 4*2 LHD Euro 2 dump truck



Drive Model

4x2, Left Hand Drive



Cab

3 person



Vehicle Main Dimensions

Dimensions(L x W x H)mm

5995*2480*2560



Wheel base (mm)

3300



Max. driving speed(km/h)

105



Engine

Model

4100QB-2



MAX Power(HP)

89



Displacement(L)

3.612



Fuel

Diesel



Intake form

inhale naturally



Maximum output power

66.2kW



Cylinder arrangement

Inline



Cylinder Number

4



Minimum fuel consumption under full load

≤238g/kW.h



Engine size

895*622*745mm



Cylinder x stroke(mm)

100*105



Rated Speed(RPM)

3200



MAX Torque(N.M)

230



MAX Torque Speed(RPM)

2000-2200



Engine net weight

320kg



Compression ratio

17:01



Emission standard

Euro 2



Gearbox

5 Forwarder+1 Reverse


Steering Gear

power steering, hydraulic steering with power assistance


Tire

8.25R16 , 6+1 Spare tire


Upper


Box dimension(mm)

3500*2100*700


Thickness

Side 3mm,bottom 4mm,rear door


Lifting method

center double top


Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.


chengli CLW factory


We can make more than 300 kinds of trucks and semi-trailers.

Chengli Special automobile Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck

2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

3. Truck with crane / Truck mounted crane

4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

5. Fire Fighting Truck / Fire Truck / Fire Vehicle

6. Concrete Mixer Truck

7. Van truck / Blasting equipment transporter/ Refrigerated truck

8. Fecal suction truck / Sewage suction truck,

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc

12. Tractor

13. High Pressure Cleaning Truck

14. Sweeper Truck

15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
