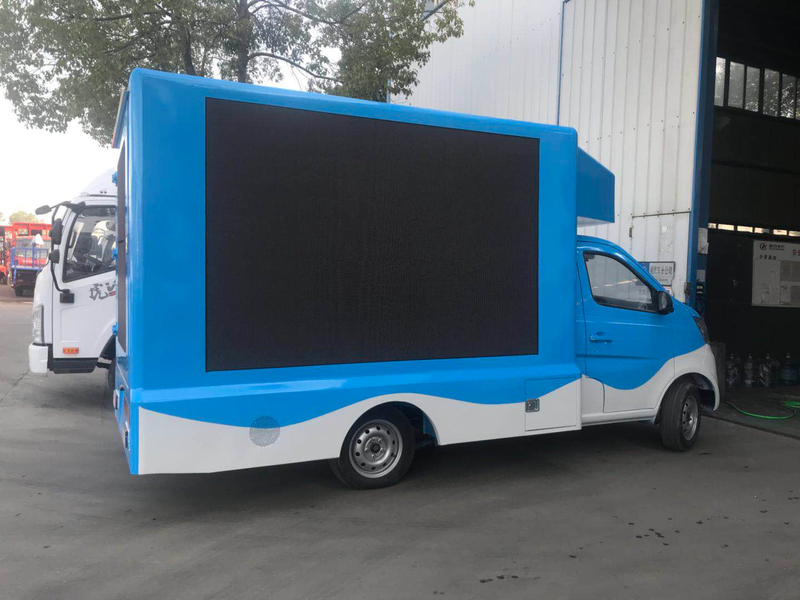

Foton 4*2 86hp LHD double-sided P4 color screen LED advertisement truck

1. Right/Left side P4/P6/P8/P10 LED outdoor full colour display screen 2. Left/Right side with advertising rollers 3. Rear LED monochrome screen,size 1280mm *1440 mm 4. Internal and external electrical distribution box 5. Circulating ventilation and cooling systems 6. Omar Silent diesel generator set 7. One set industrial computer with control system,sound system 8. Waterproof box 2pcs, amplifier 1pc, Control Panel 1pc. * With built-in stage * Hydraulically Liftable LED Screen
Availability:
Quantity:
  • CLW

Foton 4*2 86hp LHD double-sided P4 color screen LED advertisement truck


Specification of Foton 4*2 LHD P4 double-side LED truck

Condition

4X2, Left hand drive

Transmission

Manual type

Cab

Two people allowed





Chassis



Country of Original

China

Overall Dimension(mm)

5000*1900*2650mm

Wheelbase(mm)

3070mm

Curb weight(kg)

2120kg

Approach/departure angle(°)

39/17 degree

Front /rear overhang(mm)

605/1325 mm

Max driving speed(km/h)

115km/h

Steering gear

Power steering

Tire

Quantity

6pcs with one spare tire

Specification

175R14LT 8PR

Engine

Model

Foton,4W12M1

MAX Power(HP)

86

Displacement(L)

1.206

Maximum output power(kw)

63

Fuel type

Gasoline

Cylinder arrangement

Inline

Cylinder Number

4

Maximum torque(N.m)

112

Rated speed(rpm)

6000

Maximum torque speed(rpm)

4000-4400

Emission standard

Euro 5

Upper of Led truck

LED Screen

Pixel

P4,double sides

Dimension(LxW)(mm)

Both side: 2304*1536
Rear:1280*1440

General configuration

1. Internal and external electrical distribution box.

2. Circulating ventilation and cooling systems.

3. One set industrial computer with control system, sound system.

4. 10kw Gasoline generator set.

5. Loudspeaker 2pc, amplifier 1pc, Control Panel 1pc.

6. 5CM composite steel frame body, high-grade wooden interior lining, and  aluminum checkered plate floor.


P4 Full Color LED Screen Module





       Panel

Dimension

W256mm*128mmH

Pixel pitch

4mm

Pixel Density

62400/ M2

Pixel configuration

1R1G1B

LED specification

SMD2727

Pixel resolution

W64*32H

Average power

30W

Panel weight

0.5KG





Cabinet &

Bracket

Humidity

 10%-95%RH

 Hub connecting

 HUB75

 Best viewing angle

Horizontal >170  Vertical>120

 Best viewing distance

5-60M

 Working temperature

-20-+60

 Panel power supply

5V40A

  Screen power supply

220VAC/50HZ+_10%

   Max power

 <40W/PANEL




   Technical parameter

 Driving device

5024/16126Constant current drive

 Drive type

1/8Scanning

 Refresh frequency

240-1000HZ/S

 Display color

4096*4096*4096

    Brightness

6000cd/M2

 Life span

100000Hours

Communication distance

<100M

LED Advertising Truck



1. DIP LED encapsulation confirm the high brightness even under strong sunlight
2. Good protection level waterproof IP65, anti-corrosion,oxidation resistance,long life span
3. Long viewing distance, High definition, Good uniformity
4. Brightness can be adjusted automatically according to different surroundings,
5. Can be set to open and close the screen automatically
6. Can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control.
7. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
8. P6 P8 P10 type screen is optional.
9. We can provide Dongfeng, Foton, FAW, JAC, JMC, SINOTRUK HOWO, or any other Chinese truck chassis brand.




IMG_0160

1.    Right/Left side P4/P6/P8/P10 LED outdoor full colour display screen
2.    Left/Right side with advertising rollers
3.    Rear LED monochrome screen,size 1280mm *1440 mm
4.    Internal and external electrical distribution box
5.    Circulating ventilation and cooling systems
6.    Omar Silent diesel generator set
7.    One set industrial computer with control system,sound system
8.    Waterproof box 2pcs, amplifier 1pc, Control Panel 1pc.
*      With built-in stage
*      Hydraulically Liftable LED Screen
