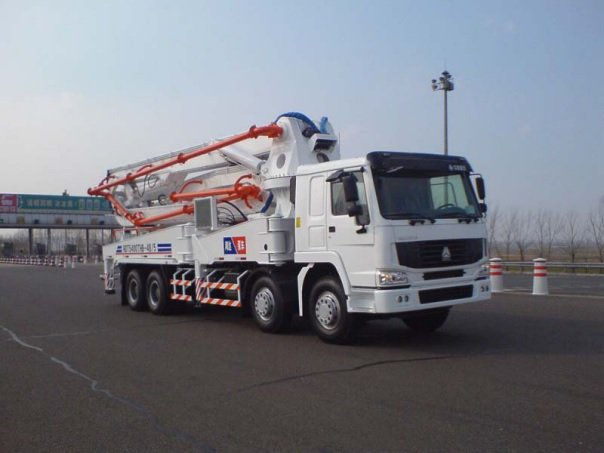

Concrete pump truck is modified on the truck chassis. It is mounted on the chassis with motion and power transmission, pumping and mixing device, cloth device and other auxiliary devices. The power of the concrete pump truck engine power is transmitted to the hydraulic pump or rear axle through the power transfer case, push the piston to drive the hydraulic pump concrete pump. Then, the concrete is conveyed to a certain height and distance by using the distributing rod and the conveying pipe on the pump truck.
Description | Concrete Pump Truck | ||
Drive Model | 4X2 Right Hand Drive | ||
Vehicle Main Dimensions | Dimensions(L x W x H)mm | 10500*2300*3610 | |
Wheel base (mm) | 5100 | ||
Overhang (front/rear) (mm) | 1285/3050 | ||
Wheel track (front/rear) (mm) | 1810/1800 | ||
Approach/Departure angle(°) | 24.6/15.6 | ||
Weight in KGS | Curb Weight | 19680kg | |
GVW. | 25500kg | ||
Max. driving speed(km/h) | 83 | ||
Engine | Model | WD615.69 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 336HP | ||
9726CC | |||
Emission standard | Euro II | ||
Gearbox | 8 forwards & 1 reverse | ||
Clutch | Reinforced diaphragm clutch | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | 11.00R20 , 7 pieces including one spare tire | ||
Upper | |||
Material | Q235 carbon steel | ||
Thickness | 16mm | ||
Use life | 10 years | ||
1mm | |||
Pumping system | concrete outlet pressure | 10.5-20MPa | |
To allow maximum aggregate size | 40mm | ||
pumped concrete slump | 160-220mm | ||
Cylinder bore/trip | 230*1450mm | ||
Pump times in theory | 26/13 times/min | ||
Hopper Capacity | 650L | ||
Model of Distributing Valve | S pipe | ||
