CLW

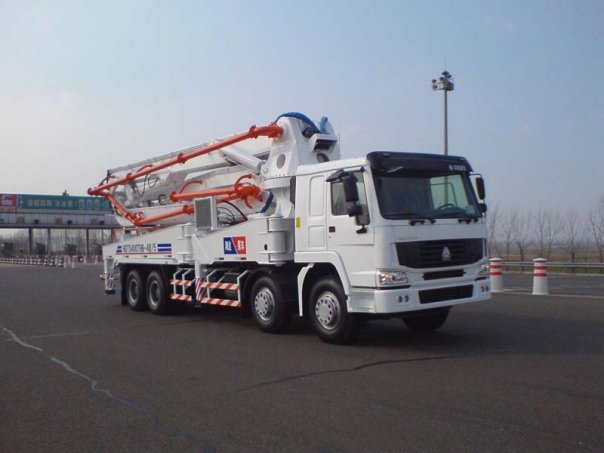

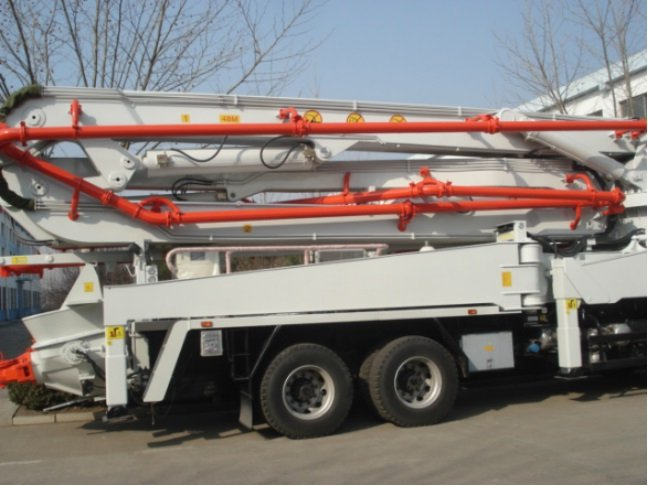

Concrete pump truck is modified on the truck chassis. It is mounted on the chassis with motion and power transmission, pumping and mixing device, cloth device and other auxiliary devices.
The power of the concrete pump truck engine power is transmitted to the hydraulic pump or rear axle through the power transfer case, push the piston to drive the hydraulic pump concrete pump. Then, the concrete is conveyed to a certain height and distance by using the distributing rod and the conveying pipe on the pump truck.
main import parts name | Model and size | Main import producing area and manufacture | ||
Chassis | HOWO Euro III | China Sinotruk | ||
Slewing bearing | Italy LALEDNESSA | |||
Biliduo valve | Germany HAWE | |||
Hydraulic pump, valve | Germany REXROTH | |||
transfer case | Germany STEIBEL | |||
Oil coolers | HPA36 | Italy EMMEGI | ||
oil pipe | Italy Manuli | |||
Terminal | Ningbo Junren | |||
Wireless or wired remote controller | Germany HBC | |||
Parameter in work conditions | output in theory | m3/h | 125 | |
index of the pump carry capacity | Mpa.m3/h | 586 | ||
theoretic pumping pressure | Mpa | 8.5 | ||
bucket volume | L | 700 | ||
height of top surface of bucket | mm | 1400 | ||
model of distribution valve | S type | |||
max. operation radius | m | 43.7 | ||
max. operation height | m | 47.7 | ||
max. operation depth | m | 34.3 | ||
open height of boom | mm | 9065 | ||
distance between front landing legs | mm | 9780 | ||
distance between rear landing legs | mm | 9860 | ||
distance between front & rear landing legs | mm | 9470 | ||
diameter of delivery pipe | mm | 125 | ||
length of hose pipe | m | 3 | ||
rotary range of boom | 365° | |||
quantity of boom | 5 | |||
rotary angle of each boom | ° | 91/180/180/180/270 | ||
wire line control distance | m | 33 | ||
romote control distance | m | 200 | ||
