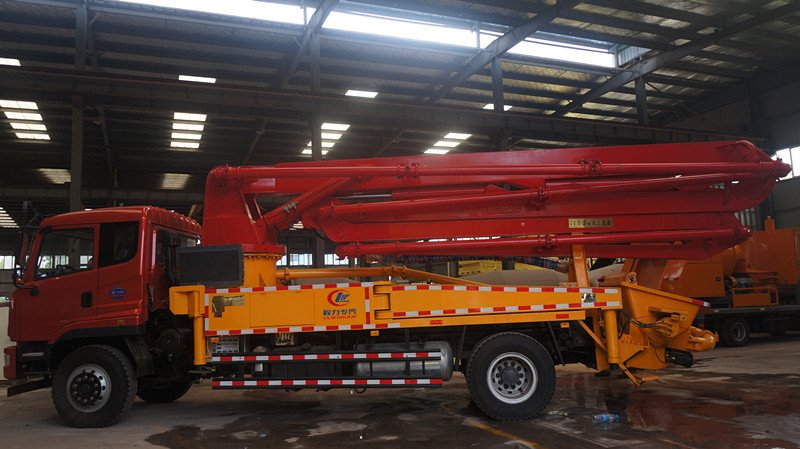

Concrete pump truck is modified on the truck chassis. It is mounted on the chassis with motion and power transmission, pumping and mixing device, cloth device and other auxiliary devices.
The power of the concrete pump truck engine power is transmitted to the hydraulic pump or rear axle through the power transfer case, push the piston to drive the hydraulic pump concrete pump. Then, the concrete is conveyed to a certain height and distance by using the distributing rod and the conveying pipe on the pump truck.
Description | Concrete Pump Truck | ||
Drive Model | 4X2 Left Hand Drive | ||
Vehicle Main Dimensions | Dimensions(L x W x H)mm | 9465X2350X3250 | |
Wheel base (mm) | 4700 | ||
Overhang (front/rear) (mm) | 1285/3050 | ||
Wheel track (front/rear) (mm) | 1810/1800 | ||
Approach/Departure angle(°) | 20/10.5 | ||
Weight in KGS | Curb Weight | 15580 | |
GVW. | 15775 | ||
Max. driving speed(km/h) | 80 | ||
Engine | Model | YC4E160-33 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 160HP | ||
4257CC | |||
Emission standard | Euro III | ||
Gearbox | DC6J65TA, 6 forwards & 1 reverse | ||
Clutch | Reinforced diaphragm clutch | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | 9.00R20 , 7 pieces including one spare tire | ||
Upper | |||
Material | Q235 carbon steel | ||
Thickness | 16mm | ||
Use life | 10 years | ||
1mm | |||
pumping system
| Theoretical Productivity | 60m3/h | |
concrete outlet pressure | 9-11MPa | ||
To allow maximum aggregate size | 40mm | ||
pumped concrete slump | 140-230mm | ||
Pipe diameter | 160-180mm | ||
Cylinder bore/trip | 1400-1600mm | ||
Pump times in theory | 26/13 times/min | ||
Pumping hydraulic system rated pressure | 30Mpa | ||
Hopper Capacity | 500L | ||
Model of Distributing Valve | S pipe | ||
Diameter of the end hose | 125 mm | ||
Boom leg parameter | Boom structure | △ folding type | |
Number of Boom Sections | 4 | ||
Rotary Angle of Each Boom Section | Ⅰ-90 Ⅱ-180 Ⅲ-240 Ⅳ-240 | ||
Close-control Distance | 28m | ||
Boom turning radius | 27m | ||
Boom turning angle | 360° | ||
30 Mpa | |||
