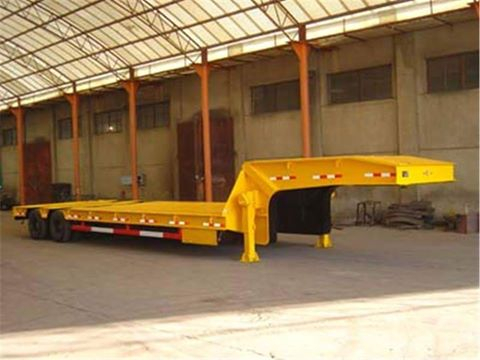

2 Axles 3 Axles front loading hydraulic gooseneck detachable 100tons low bed semi trailer /lowboy trailer for sale
Gooseneck Detachable 3 axles hydraulic Low Bed Trailer
1. Model: CLW9320TDP Low bed semi trailer
2. More than 14years professional manufacturer experience
3. Be designed according to your requirements
4. CCC ISO9001 WMI SGS BV agreement
5. Small order can be accepted
6. 1 year quality guarantee term
7. We accept 100% inspection, welcome to our factory at any time
Specifications:
General | ||||
Overall Dimension | 12000-17000mm*2800--3000mm*1650mm | |||
Total Weight | 9500kg | Pay Load | 60-100ton | |
King Pin Setting | 1120mm | Load platform | 6000-10000mm(Length) | |
Track | 1840mm | Wheel base | 7080mm+1305mm+1305mm | |
Running Gear | ||||
Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam(Air suspension) | |||
Tires | 11.00R20, 12units | |||
Rim | 8.0-20 steel rim(Aluminium optional) | |||
Axles | FUWA axle, 13T capacity | |||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |||
Under Frame | ||||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | |||
Cross Beam | Mild Alloy Q235 | |||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | |||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | |||
Appendix | 1 tool box, length 1.0m | |||
Electrical & Paint | ||||
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||||
Lights & Reflectors | 24V, 6 lines | |||
Wiring | ISO standard air connector, 24V 7 pin plug socket | |||
Air/Elec. Connector | Color upon request | |||
Paint | According to your requirements | |||
Use:
Type:
Material:
Certification:
Size:
OEM No.:
Max Payload:
Place of Origin:
Brand Name:
Model Number:
Axle Brand:
Quantity or Axle:
Pay Load:
Colour:
Tire Specification:
wheelbase(mm):
Kingpin:
Body Material:
Electrical System:
Packaging Details
rued packing,small type can be put into 20'GP or 40'GP ,big type can be carrierd by bulk carriers or ro-ro ship or according to your requirements.
Delivery Time
10-15 days after disposit
What you can get from us
1. Get the new products, and meet your processing requirements.
2. Our quality products help you to win money and earn much time.
3. We always do our best to save cost for you and ensure the quality goods.
4. Our rich-experience technical teams are standing by all the time.
5. You can know the advance overseas technology from our products. Which bring you more
competitive advantages.
