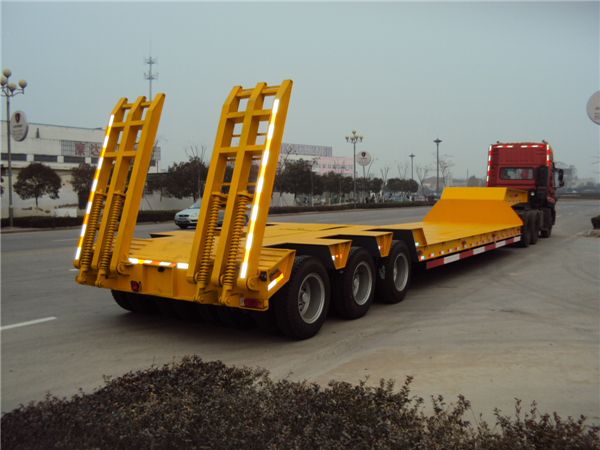

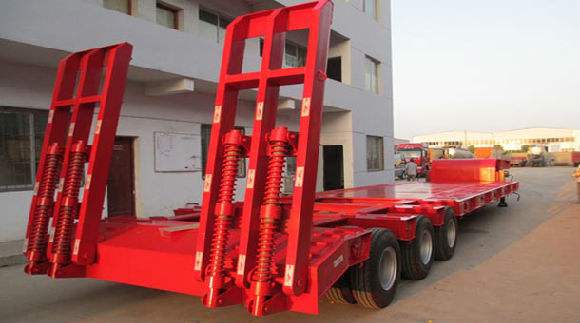

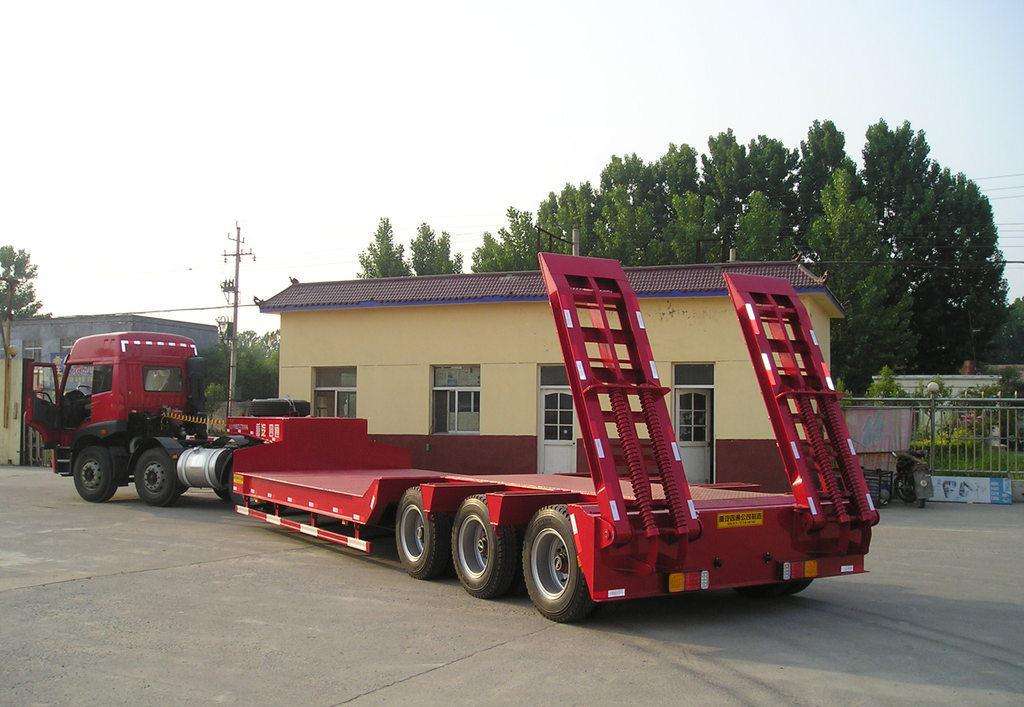

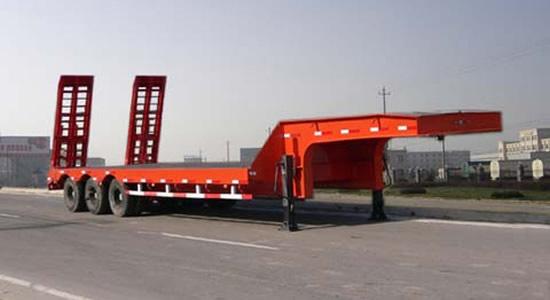

Hot sale 3 axles 80 tons heavy duty Low platform semi trailer
Specification for Factory 3 axles 80 tons heavy duty Low bed semi trailer for sale
| Factory directly 3 axle low bed semi trailer for heavy duty | |
DIMENSIONS | |
Tare weight | 10000kg |
Size | 13000mm*2500mm*1250mm |
Payload | 60T |
Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm |
Side beam | 25# channel steel(Q235) |
Cross member | 16# channel steel(Q235) |
Floor | 5mm checkered plate |
Side wall | No |
Front board | No |
Axle | 3 axle FUWA brand 13T |
Suspension | Mechanical suspension American type local brand |
Leaf spring | Leaf spring 10pcs*90*13mm |
Tire | 12R22.5-18pr double star brand 12pcs |
Wheel rim | 9.0-22.5 better brand 12pcs |
Kingpin | JOST brand 2” weld king pin |
Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 28T |
Ladder | Mechanical ladder |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
ABS | Optional |
Lights | LED 8 side lights and 2 rear lights 2 width lamp |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light |
Date of delivery | 40 workdays after we received 30% of contract value T/T down payment |
If you have any requirement, please feel free to contact us!
