Carbon Steel 3 Axle Low Bed Semi Trailer

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18mm,width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 20mm,width 140mm.

Quantity:
  • CLW
  • CLW BRAND
  • 43534FE

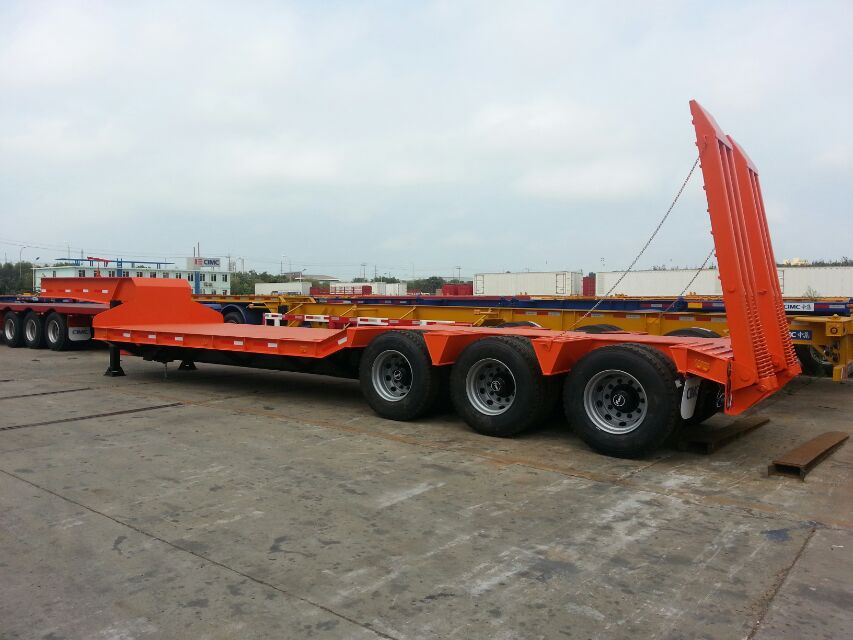

Carbon Steel 3 Axle Low Bed Semi Trailer

GHE


DIMENSIONS

Tare  Weight

12000kg

Overall  Length

13000mm

Overall  Width

2500mm

Overall  Height

2980mm

Payload

60000kg

SPECIFICATIONS

Axle

3 axles

BPW 13ton, FUWA, L1 brand are optional

Suspension

Heavy duty mechanical slung suspension

Floor

3mm checker plate

Leaf Spring

8 piece Leaf spring

King Pin

JOST brand 2” Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Wheel Rim

8.25-22.5 wheel rim  13 pieces including one spare time

Tire

12R22.5 tire with one spare tire , 13 pieces

Painting

Complete Chassis sand blasting   to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

DW
