Dongfeng 5cbm LHD 4*2 water tank truck

Quantity:
  • CLW
  • Dongfeng

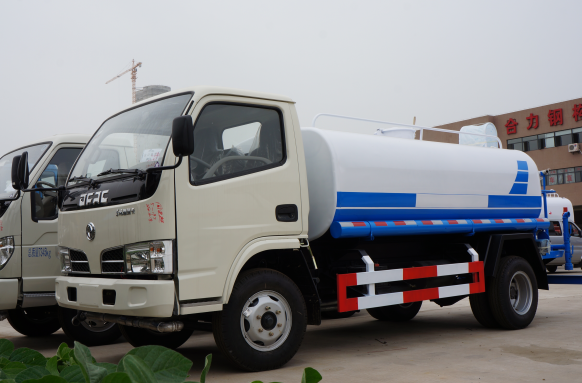

Dongfeng 5cbm LHD 4*2 water tank truck

Specification of  Dongfeng 5cbm 6 forwards LHD 4*2 water tank truck

Condition

Driving Mode

4×2,LHD

Chassis

Brand

Dongfeng

Dimension(mm)

5995*1980*2255

Wheelbase(mm)

3300

Curb weight(kg)

2900

Approach/departure angle(°)

19/18

Front /rear overhang(mm)

1032/1663

Wheel track(front /rear)(mm)

1580/1595

Axle load(front /rear)(kg)

1795/2695

Number of springs

8/9+5

Max driving speed(km/h)

90

Tire

Quantity

6pcs+1

Specification

7.00-16

Cab

2 passengers


Model

CY4102BQ

Maximum horsepower(HP)

96

Max output power

70.6kw

Displacement

3.856L

Intake form

inhale naturally

Cylinder number

4

Fuel type

Diesel

Cylinder arrangement

inline

Maximum torque

245N.m

Rated speed

3200rpm

Maximum torque speed

2200rpm

Engine size

921*651*751mm

Bore diameter x stroke

102*118mm

Engine net weight

330kg

Emission standard

Euro 2

Gearbox

 6 forward and 1 backward

Water Tank

Tank

Volume

5000L

Material

Q235A Carbon steel

Thickness(mm)

5

Shape

Ellispe or Square Round

compartment

Each Compartment equipped with a manhole and anti-wave plate.

Standard Equipment

1. Equipped with front,rear,side sprinkler (sprinkling width>14m )



2.Equipped with rear working platform with water cannon which can be turned all-round (range>28m),can be adjusted into flinging, heavy rain,light rain, drizzle model, with security barrier.



3.Equipped with CLW pump(suction lift>6m)



4.Equipped with fire valve, water valve, and filter gauze

Optional Equipment

5. Firefighting pipe

6. Firefighting Pump

7.The painting


Details:

水车图


Advantages:


1) Dongfeng famous brand water spraying truck

2) Volume of tank: 5cbm water spraying truck

3) Low oil consumption with good economic water spraying truck

4) Chinese famous brand pump water spraying truck

5) High-pressured Sprinkler, spraying of water to be possible to adjust columnar and the fog shape water spraying truck

6) Optional fire pump and fire-fighting accessories water spraying truck

7) BV ISO CCC approved, accept customes' OEM customized water spraying truck


Fuctions:


Self suction and self discharge function, front flushes sprinkles, side spurts, post positioned work table.


Applications:


Water sprinkler truck, also known as multifunctional green sprinkler truck, is used for cleaning the city road, large factories, troops, gardens ect. Besides, it can also be used for temporary emergency sprinkler.


CLW GROUP are specialized in manufacturing 5,000L-30,000L water tank truck and exports a large number of trucks abroad every year. Our trucks have a competitive advantage in the market both in price and quality.


CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
