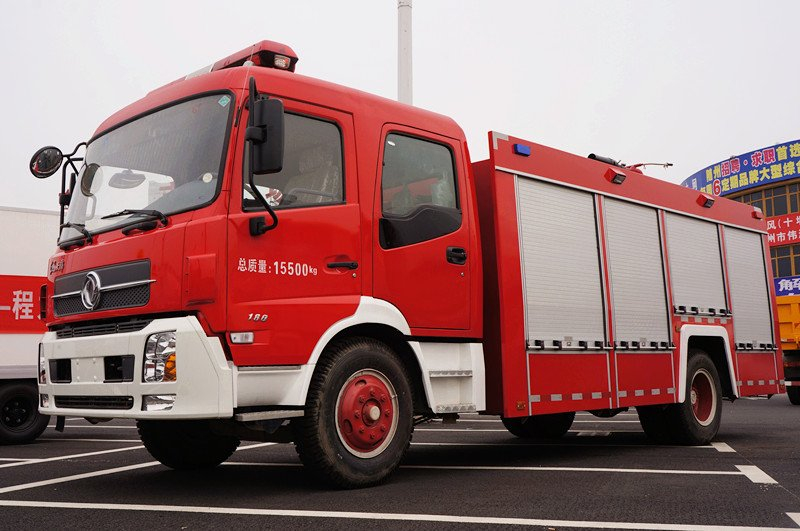

Dong Feng 4x2 7M3 7000 liters 7 cbm 1600 gallons Water Tanker Fire Fighting Truck

Quantity:
  • DFL1160
  • CLW

Dong Feng Fire Fighting Truck:


Dong Feng fire fighting truck is also called fire fighting truck, is used exclusively for extinguishing or other emergency rescue. Fire fighting truck is currently most main tool for fire deprtments to fight fire , and is the most basic mobile firefighting equipment.According to the different types of extinguishing media, fire truck can be divided into water tank fighting truck, foam fighting truck, dry powder fighting truck, etc. We can manufacture kinds of fighting truck from 0.5ton  to  22ton, and we also can manufacturer  rescue Fire truck, communication command truck, inflatable Fire truck. etc.



Product Notes:


1. Capacity : 7000L/7M3/7 Ton

2. Passenger In Cab : Double Row Cab, About 5 People.

3. Advanced Technology In Special Automobile.

4. High Quality And Safety.

5. We have our own manufacturing plant to ensure the quality and production period.



Detailed Specification:


Description

DONGFENG 4X2 7M3 Fire Fighting Truck

Drive Model

4X2

Chassis

DFL1160

Vehicle Main Dimensions

Dimensions(L x W x H)mm

8250*2480*3310

Wheel base (mm)

4500

Overhang (front/rear) (mm)

1430/2070

Wheel track (front/rear) (mm)

1880/1860

Approach/Departure angle(°)

20/13

Weight in KGS

GVW.

15550

Curb Weight

8100

Max. driving speed(km/h)

90

Allowable passengers in cab

2+4

Engine

Model

B190 33

Type

4-stroke direct injection , 6cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

190

Emission standard

Euro III

Gearbox

6 forwards & 1 reverse

Fuel tank (L)

200L

Tire

10.00-20.6pieces+1 spare tire

Operation control system

Electrically hydraulic control


UPPER

Water tanker capacity

7000L


Fire-fighting cannon

Model

PL32

water range

  ≥45m/1.0MPa

Fire pump

(optional)

atmospheric pressure fire pump

Model

BS40

Rated flow

40L/s

Rated

 pressure

1.0MPa

Middle&low pressure fire pump

Model

CB20.10/20.40

Rated flow

20L/ s/2.0MPa



Our Service:


1. Factory direct supply: reliable quality and fast delivery;

2. Warranty: From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;

3. Tracking service: lifelong

4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;

5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.

6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.

7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
