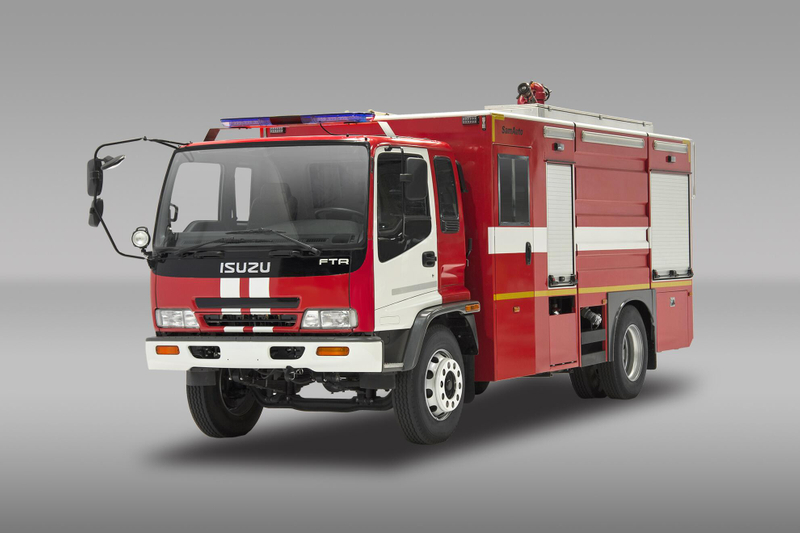

Japan Brand 4X2 6m3 Water Tank Fire Fighting Truck
Technical parameter
Item No. | Parameters | |
Overall Dimension | 8150*2500*3450 mm | |
Drive model | 4x2, new condition | |
GVW | 16000 kg | |
Curb Weight | 9750 kg | |
Loading weight | 6150 kg | |
Wheel Base | 4500 mm | |
Front/rear Overhang | 1440/2095 mm | |
Front/rear Tread | 1900/1800mm | |
Approach/Departure Angle | 19/13 degree | |
Engine horsepower | 190 HP Euro 3 | |
Displacement | 5.9 L(Diesel) | |
Full loading Fuel Consumption Rate | 140 G/KW.H | |
Max Driving Speed | 85 km/h | |
Gear Box | 6 Forward Gear, 1 Backward Gear | |
Tire | 10.00R20 ,6 pieces with 1 spare tire. | |
Tank parameter | ||
Water volume（m³） | 6 CBM | |
Material of the tank | Carbon steel | |
Type of fire pump | Centrifugal pump | |
Fire fighting pump suction depth | 7m | |
Standard equipment | Middle and low pressure pump CB10/40 Flow : 40L/S; Pump Pressure: 1.0 MPa; Pipes pressure: 1.0 MPa Fire Distance(water): ≧60m Fire fighting pump suction time:<35s Delivery outlet(B/S type) :65mm(21/2) Rotation angle of fire fighting turret nozzle:360degree | |
Company Introduction:
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 800 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
Customized Truck & Trailer Solutions to Meet Your Requirements
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck.
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
