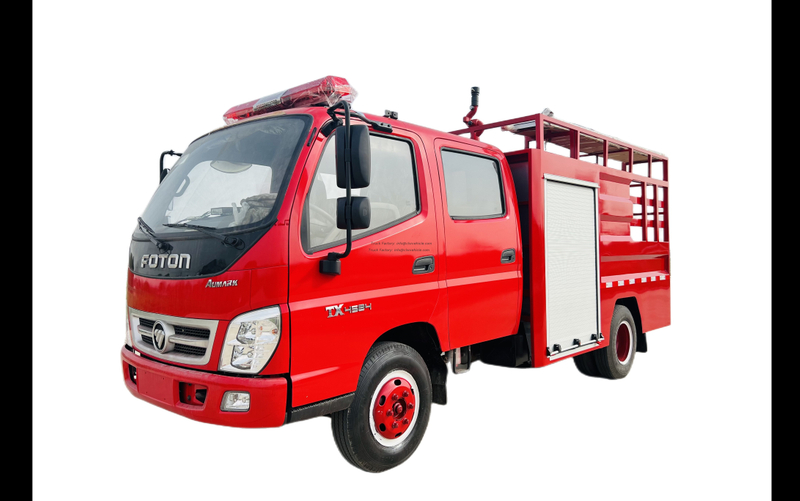

Foton 1000liter Water Tanker Fire Truck with Front Install Fire Pump Price

Fire truck also called fire tanker,fire engine ,fire appatatus ,water fire truck ,foam fire truck ,fire rescue truck) is a vehicle designed primarity for fire fighting operations-to extinguish fire efficientyly to prevent fire spread ,reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

a. According to vehicle size ,there are mini fire fighting truck ,light fire fighting truck ,medium fire fighting truck ,heavy-duty fire fighting truck;
b. According to chassis drive type ,there are 4x2 fire fighitng truck ,6x4 fire fighting truck ,8x4 fire fighitng truck and off-road type 4x4,6x6 fire truck;
c. According to chassis brand,ther are I-SUZU ,Dongfeng,FOTON,FAW ,SINOTRUCK ,etc.
d. According to fire agent,there are water tank fire fighting truck ,water/foam fire fighting truck ,dry powder fire fighting truck

Material:	carbon steel material SS
Availability:

Quantity:



Inquire Add to Basket

Model:
FY5180SGXF
Brand:
FOTON FAW ISUZU HOWO SHACMAN DONGFENG

Product Description

II. Details of FOTON 2+4 Person Cabin 3000Liter Water Tanker Fire Truck with front install fire pump

微信图片_20221124141744 微信图片_2022030208230110 foton fire fighting truck

III.Specification of FOTON 2+4 Person Cabin 3000Liter Water Tanker Fire Truck with front install fire pump

TECHNICAL SPECIFICATION
Main specification	Chassis brand	HOWO
	Chassis model	ZZ1047
	Overall dimension(LWH)	mm
	Water tank volume	2,500 LITRES
	Foam tank volume	500 litres
	Cabin	double cabin
Chassis	Drive modle	4x2 Right hand drive
	Front axle loading	2,400 kg loading capacity
	Rear axle loading	4,200kg loading capacity
	Wheel Base	3800mm
	Front/rear suspension	1015/2040mm
	Approach/departure angle	24/12 (°)
	Tyre size & number	7.50R16 Radial tire, with one spare tyre
	Transmission	manual, 6 forwarder & 1 reverse
	Voltage	Have 2 batteries , each 12 volts
	Color	Red and white including tanker , standard .
	Brake	Air brake
	Max speed	95km/h
Engine	Brand	YUNNEI POWER
	Model	YN4102QBZL
	Engine Type	4-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling
	Horse power	116HP
	Displacement	3760ml
	Emission	Euro III
TANK SPECIFICATION
Tank capacity	2,500 LITRES WATER TANK WITH 500 LITRES FOAM TANK
Tank material	Water tank made of carbon steel . Thickness:4mm, The foam tank is made of stainless steel
Fire pump	Model	/	CB10/30 model ,Normal pressure pump
	Pressure	Mpa	≥1.0
	Max suction height	m	7
	Flux	L/M	1800
	Rated speed	r/min	3000
	Time of drawing water (s)	s	≤45
	Input	/	one nozzle , diameter : 100mm
	Outlet	/	2 nozzles, diameter: 65mm
Water-foam shooter (Monitor)	Model	/	PL24,mounted on the tank as photo,standard
	Fire fighting nozzle range	Water (m)	≥45
		Foam (m)	≥40
	Flux	L/min	1440
	Rated Working pressure	Mpa	0.7-1.2
	Rotation angle	(°)	360
Standard configuration	Have alarm rotating light and which is mounted on top of the cabin , have ladder , have manhole
EQUIPMENT LIST
Category	Item	Specification	Quantity
Fire-fighting equipment	Chassis Accessory(tools)	/	1
	Suction pipe	150×4cm	2
	Water filter	FLF150	1
	Water separator	FII80/65×3-1.6	1
	Siamese	JII150/80×2-1.0	1
	Fire hoses	13-65-20	6
	Fire hoses	13-80-20	4
	Increaser	KJ65/80	2
	Hose gaiter	DT-SB	4
	Fire-hose protector	Length570	1
	Rope hose tool	/	4
	Overground hydrant wrench	QT-DS1;Length400	1
	Underground hydrant wrench	Length860	1
	Suction wrench	FS150	2
	Water-stream Switch nozzle	QZG3.5/7.5;65	1
	Water-stream spray nozzle	QZK3.5/7.5;65	1
	Fire bucket	/	1
	Aspirator foam nozzle(include pipette)	QP8/0.7Z;65	1
	Bubble pipette assy	Φ40×2700	1
	First fire Reel	DN25 ,40m	1
Fire forcible entry tool	Fire extinguisher	3KG	1
	Shovel	Length1050	1
	Fire Axe	QTF-PF; Length 810	1
	T-shaped pick	QTF-DG;Length 830	1
	Persuader	Length 1060	1
Chassis engine spare parts	Oil filter	/	2
	Fuel filter	/	2
	Air filter	/	2
	Belt for AC	/	2
	Fan belt	/	2

IV.Fire Truck Details

V.Fire Truck Production workshop and testing

Cheap Small 2000L 4WD 2000 Liter 2 Tons Water Fire Fighting Truck Price

VI.SHIPMENT ( RORO or BULK VESSEL)

RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks

The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
Cheap Small 2000L 4WD 2000 Liter 2 Tons Water Fire Fighting Truck Price

II. Details of FOTON 2+4 Person Cabin 3000Liter Water Tanker Fire Truck with front install fire pump

III.Specification of FOTON 2+4 Person Cabin 3000Liter Water Tanker Fire Truck with front install fire pump

TECHNICAL SPECIFICATION
Main specification	Chassis brand	HOWO
	Chassis model	ZZ1047
	Overall dimension(LWH)	mm
	Water tank volume	2,500 LITRES
	Foam tank volume	500 litres
	Cabin	double cabin
Chassis	Drive modle	4x2 Right hand drive
	Front axle loading	2,400 kg loading capacity
	Rear axle loading	4,200kg loading capacity
	Wheel Base	3800mm
	Front/rear suspension	1015/2040mm
	Approach/departure angle	24/12 (°)
	Tyre size & number	7.50R16 Radial tire, with one spare tyre
	Transmission	manual, 6 forwarder & 1 reverse
	Voltage	Have 2 batteries , each 12 volts
	Color	Red and white including tanker , standard .
	Brake	Air brake
	Max speed	95km/h
Engine	Brand	YUNNEI POWER
	Model	YN4102QBZL
	Engine Type	4-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling
	Horse power	116HP
	Displacement	3760ml
	Emission	Euro III
TANK SPECIFICATION
Tank capacity	2,500 LITRES WATER TANK WITH 500 LITRES FOAM TANK
Tank material	Water tank made of carbon steel . Thickness:4mm, The foam tank is made of stainless steel
Fire pump	Model	/	CB10/30 model ,Normal pressure pump
	Pressure	Mpa	≥1.0
	Max suction height	m	7
	Flux	L/M	1800
	Rated speed	r/min	3000
	Time of drawing water (s)	s	≤45
	Input	/	one nozzle , diameter : 100mm
	Outlet	/	2 nozzles, diameter: 65mm
Water-foam shooter (Monitor)	Model	/	PL24,mounted on the tank as photo,standard
	Fire fighting nozzle range	Water (m)	≥45
		Foam (m)	≥40
	Flux	L/min	1440
	Rated Working pressure	Mpa	0.7-1.2
	Rotation angle	(°)	360
Standard configuration	Have alarm rotating light and which is mounted on top of the cabin , have ladder , have manhole
EQUIPMENT LIST
Category	Item	Specification	Quantity
Fire-fighting equipment	Chassis Accessory(tools)	/	1
	Suction pipe	150×4cm	2
	Water filter	FLF150	1
	Water separator	FII80/65×3-1.6	1
	Siamese	JII150/80×2-1.0	1
	Fire hoses	13-65-20	6
	Fire hoses	13-80-20	4
	Increaser	KJ65/80	2
	Hose gaiter	DT-SB	4
	Fire-hose protector	Length570	1
	Rope hose tool	/	4
	Overground hydrant wrench	QT-DS1;Length400	1
	Underground hydrant wrench	Length860	1
	Suction wrench	FS150	2
	Water-stream Switch nozzle	QZG3.5/7.5;65	1
	Water-stream spray nozzle	QZK3.5/7.5;65	1
	Fire bucket	/	1
	Aspirator foam nozzle(include pipette)	QP8/0.7Z;65	1
	Bubble pipette assy	Φ40×2700	1
	First fire Reel	DN25 ,40m	1
Fire forcible entry tool	Fire extinguisher	3KG	1
	Shovel	Length1050	1
	Fire Axe	QTF-PF; Length 810	1
	T-shaped pick	QTF-DG;Length 830	1
	Persuader	Length 1060	1
Chassis engine spare parts	Oil filter	/	2
	Fuel filter	/	2
	Air filter	/	2
	Belt for AC	/	2
	Fan belt	/	2

IV.Fire Truck Details

V.Fire Truck Production workshop and testing
production detail of fire fighting truck Cheap Small 2000L 4WD 2000 Liter 2 Tons Water Fire Fighting Truck Price

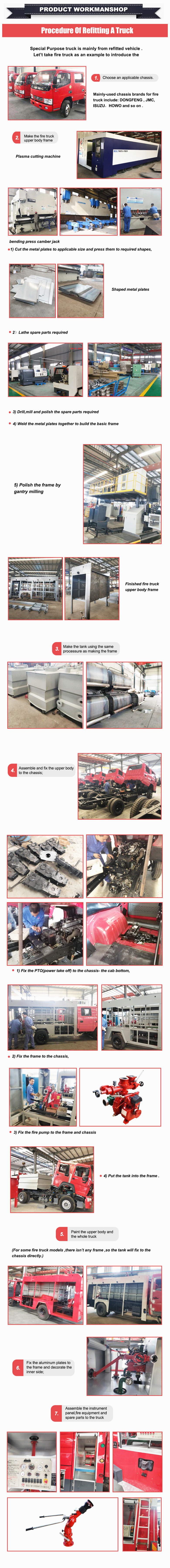

Workshop of fire truck
