2-Axle 40.5CBM 40500Liters 20MT 20Tons LPG Tanker Semi-Trailer

Material:Q345R,Q370R,Q420R; Thickness of Shell:12mm Thickness of End plate:12mm Size(LXWXH):11324X2500X3730mm Design Pressure:1.61Mpa/16.1Bar Net Weight:13415Kg
Availability:
Quantity:
  • CLW9310GYQ

  • CLW

Tanker Essential Information

Volume of Tank (cbm)

40.5

Overall Dimensions(L*W*H)(mm)

11324*2500*3730

Tank Dimensions(Inner Diameter*thickness*Length)

2200*12*11044

Estimated Tare Weight (kg)

13414

Payload(kg)

20000

Total Weight(kg)

38414

Wheelbase(mm)

6720+1320

Shell of Tanker

Products

Liquefied Petroleum Gas (propane)

Fluid Property

Flammable

Design Temperature(℃)

-19~50℃

Design Pressure(MPa)

1.61

Corrosion Allowance(mm)

1.00

Weld Joint Factor

1

Major Materials of Bearing Pressure

Tanker body:Q345,12mm,

End plateQ345R,12mm,double ellipse

Main beam:16Mn

Detection

Heat Treatment

Overall treatment in a furnace,600℃ to 640 ℃

Flaw Detection

100% Flaw detection

Hydraulic Test(MPa)

2.21

Manhole (As Customer’s Requirement)

Quantity

1;on top,DN450

Safety Valve(As Customer’s Requirement)

Quantity

2

Location

On the top of tanker

Size

DN80 or As Customer’s Requirement

Level Gauge

3*13T Fuwa

Type

Manuel rotation type

Location

At the rear of the end plate

Running System

Axles

2*13T BPW brand

Tire

12R22.5 Tubeless tire ,8 pcs with one spare tire

Landing leg

JOST

King Pin

#50 or #90

Control System

Emergency Cut-off Valves

2

Ball Valve

2

Liquid Gauge

1

Thermometer

1

Pressure Gauge

1

Accessories

Tool Box

2

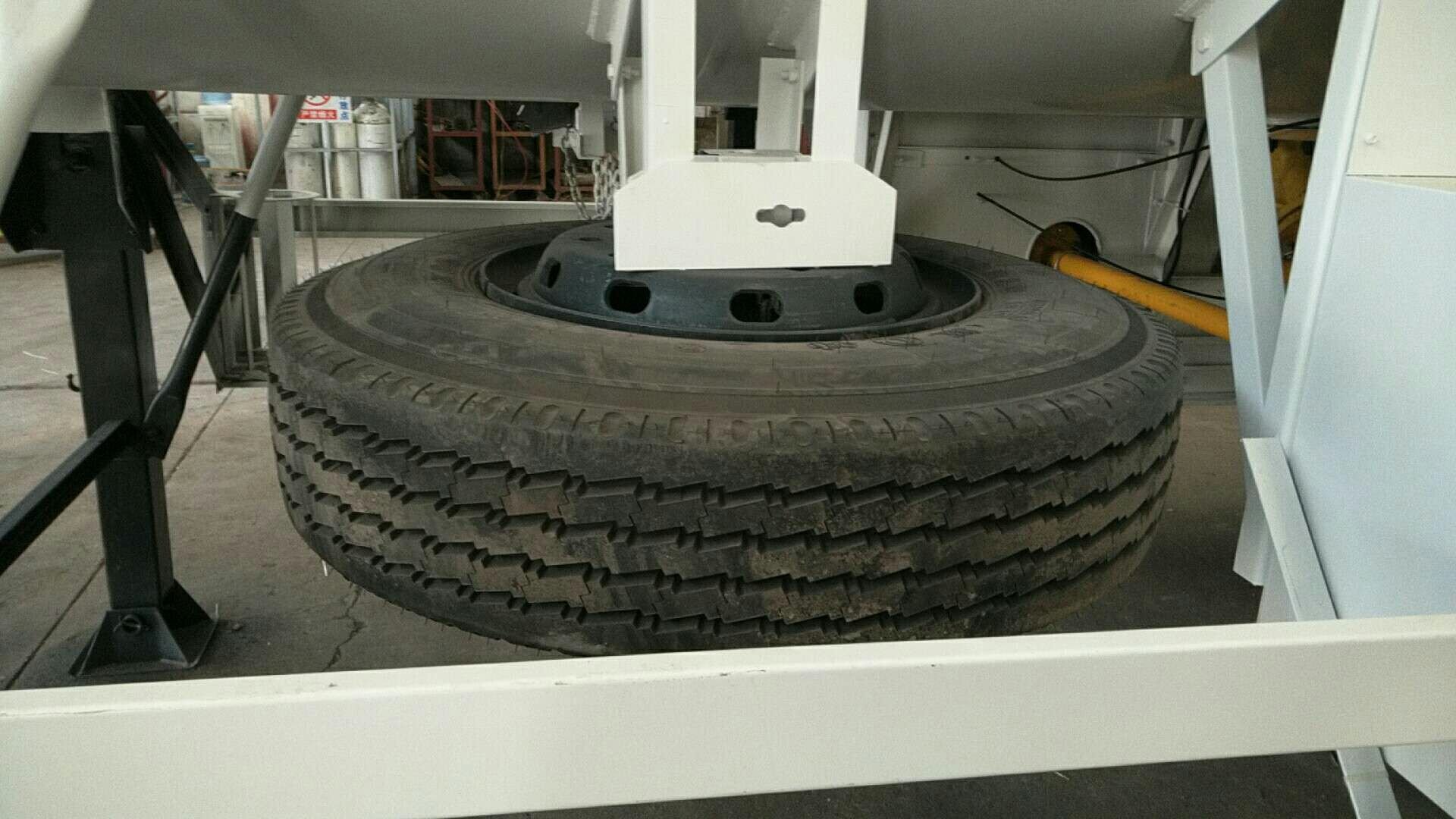

Wheel Carrier

1

Fire Extinguisher

2

Fender

6

Paint

As Customer’s Requirement


small 20tons lpg tanker trailer 01.jpg

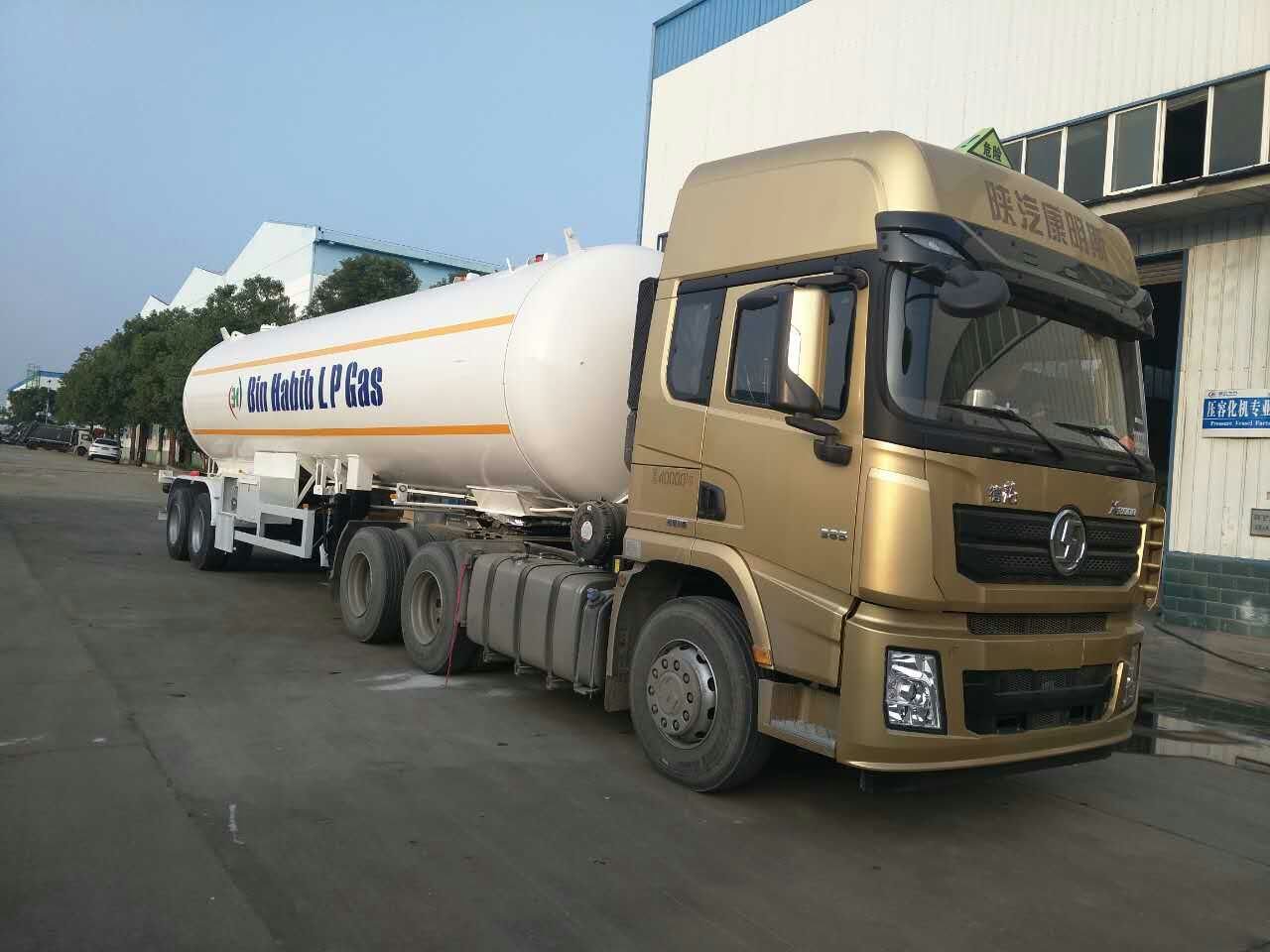

40.5cbm lpg tanker trailer with tractor head

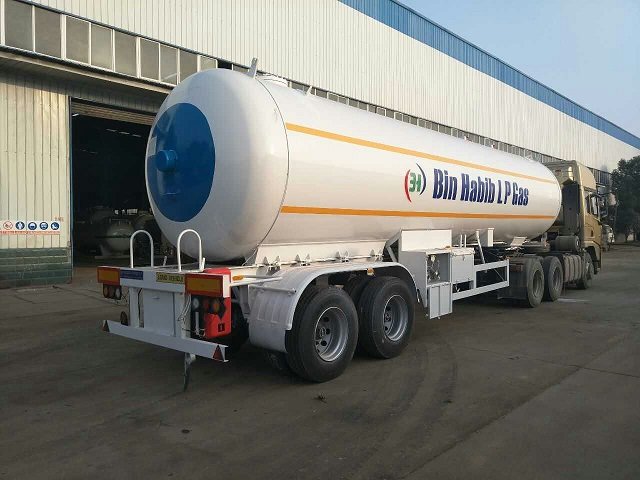

small 20tons lpg tanker trailer 02.jpg

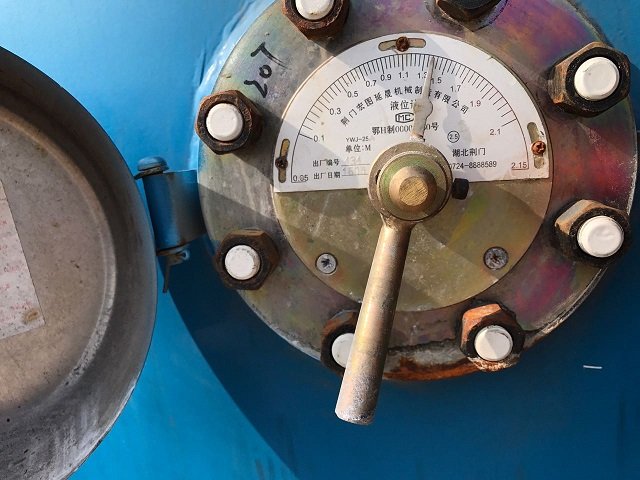

Manual Rotation Level Gauge

small 20tons lpg tanker trailer 05.jpg

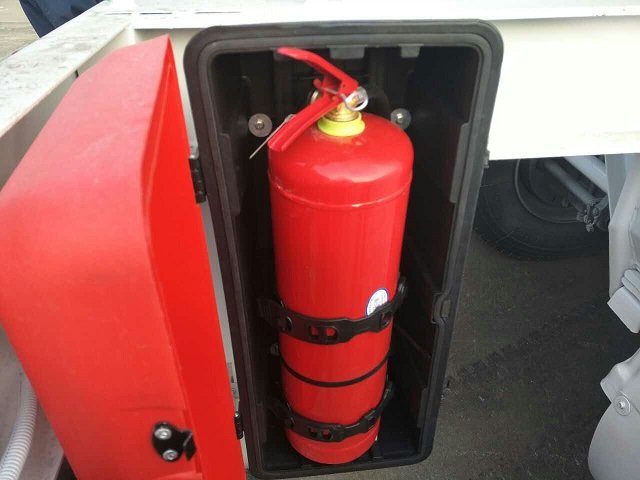

Fire distinguisher

small 20tons lpg tanker trailer 04.jpg

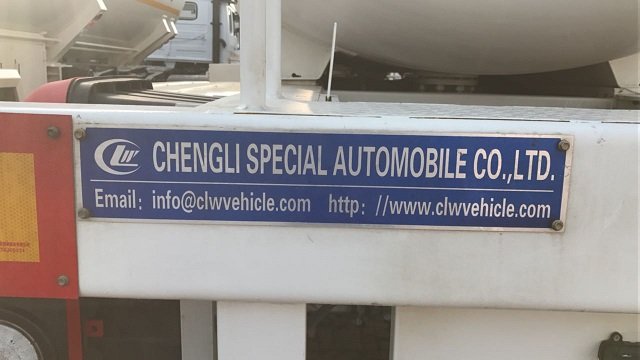

small 20tons lpg tanker trailer 06.jpg
