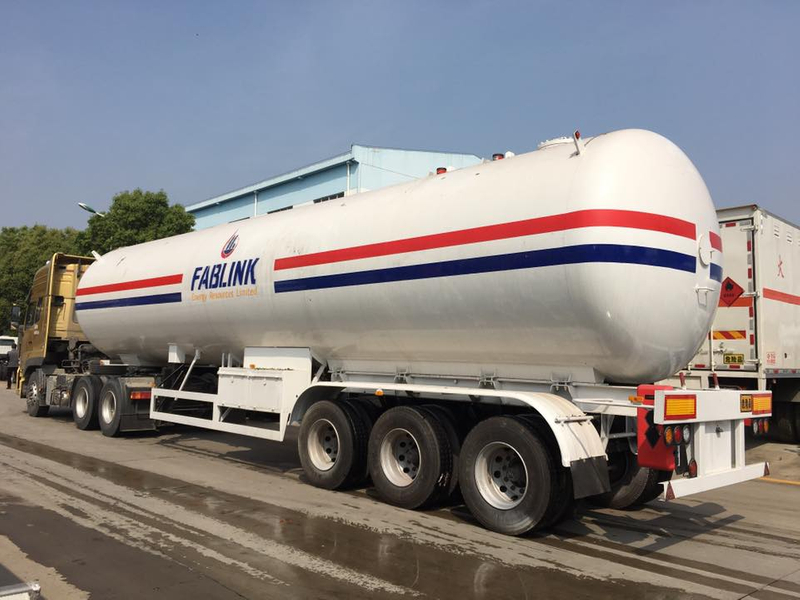

ASME 3 Axles York Brand Axle LPG Propane Tanker Semi Trailer
Technical parameter
| Product: | ASME 3 Axles York Brand Axle LPG Propane Tanker Semi Trailer | ||
| Vehicle classification: | Semi trailer | ||
| Vehicle type: | CLW9401GYQ | ||
| Product brand: | CLW | Manufacturer: | CLW GROUP |
| Overall dimension: | 12900×2500×3977mm | Dimension of tank: | 12607×2475mm (length×diameter) |
| Effective volume | 58.5 cubic meters | ||
| Gross weight (Kg): | 43250 | ||
| Curb weight (kg): | 14000 | payload(kg): | 29250 |
| Approach/Departure angle: | -/25 | Front/rear suspension: | -/1270 |
| Wheel base(mm): | 7010+1310+1310 | Axle load: | 24000kg |
| Axle No.: | 3 | Maximum speed (km/h): | |
| Fuel consumption: | Spring No. : | -/7/7/7 | |
| Tire No. : | 12 | Tire model: | 12R22.5 12PR |
| Front wheel tread: | Rear wheel tread: | 2040/2040/2040 | |
| Tank material: | Q370 (thickness: 11.5mm) | ||
| Transport medium: | Propane | ||
| Standard configuration: | Single liquid outlet, both sides loading & unloading, 2 valve boxes, 2 tool boxes, 2 safety valves, 2 thermometers,2 pressure meters, Emergency valve, BPW13T Axle,12tubeless tire, JOST landing leg,2 extinguishers, anti-static type, plastic fender, ABS. | ||
About us
Chengli special automobile Co., Ltd is an automobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the overseas customers and contributing to China trucks' entrance to the international market.
Our Service:
1. Quality Inspection of Chengli Truck:
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, etc.
2. Spare Parts of Chengli Truck:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
3. Warranty of Chengli Truck:
One year's free warranty for major 3 components, including Engine, Gearbox, Axles.
4. After Sales Service of Chengli Truck:
Email & Phone call tracking for each truck on timely manners, also possible engineer
maintenace in customer's Country.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
