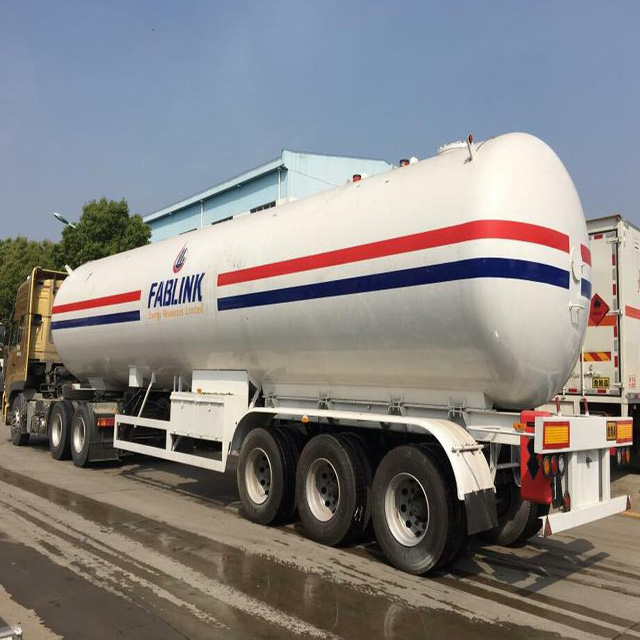

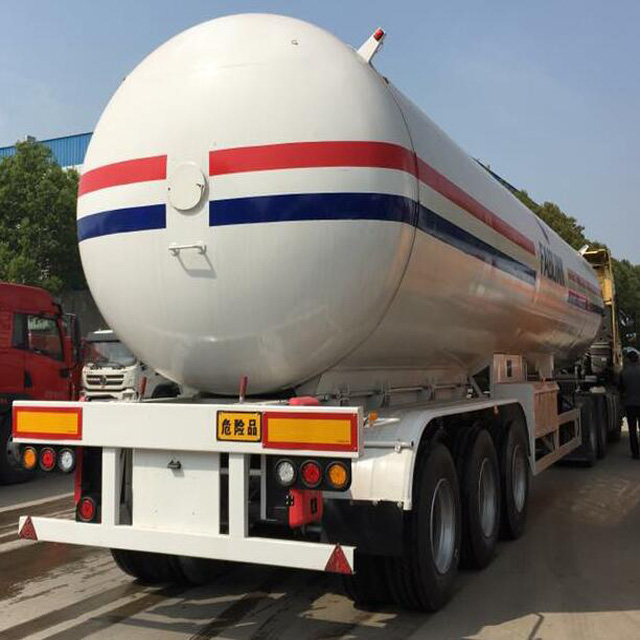

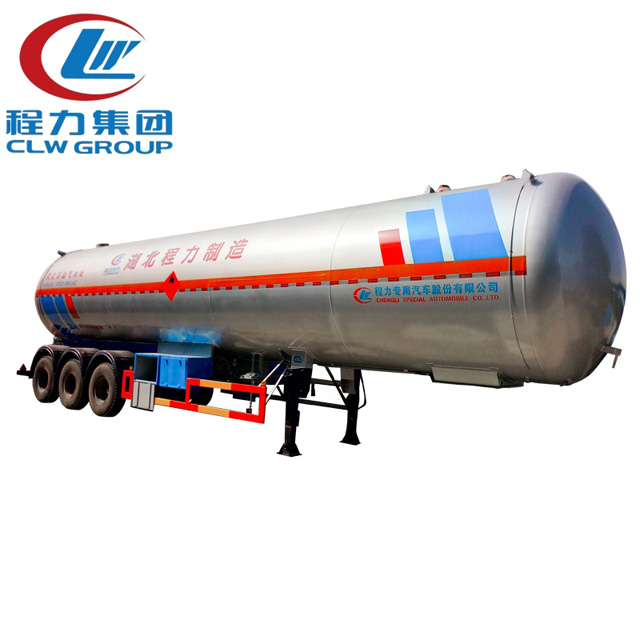

LPG Tank Trailer Specification | |||
Volume of Tank | 59600Liters | ||
Overall Dimensions(L*W*H)(mm) | 13000*2500*3990 | ||
Tank Dimensions (Inner Diameter*thickness*Length) | 2478*11*12791 | ||
Estimated Tare Weight (kg) | 15430 | ||
Payload(kg) | 24570 | ||
Total Weight(kg) | 40000 | ||
Wheelbase(mm) | 7230+1310+1310 | ||
Shell of Tanker | |||
Products | Liquefied Petroleum Gas (propane) | ||
Fluid Property | Flammable | ||
Design Temperature(℃) | -19℃~50℃ | ||
Design Pressure(MPa) | 1.61 | ||
Corrosion Allowance(mm) | 1.00 | ||
Weld Joint Factor | 1 | ||
Major Materials | Tanker body:Q345R,11mm, | ||
End plate：Q345R,11mm,double ellipse | |||
Main beam:16Mn | |||
Quality Control Process | |||
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ | ||
Riagraphic Test | 100% X-ray Detection | ||
Test Pressure(MPa) | 1.61 | ||
Hydraulic Test(MPa) | 2.21 | ||
Magnaflux Inspection | For Pipe & flange connection | ||
Manhole (As Customer’s Requirement) | |||
Quantity | 1 on the top ,DN450/DN500 | ||
Safety Valve(As Customer’s Requirement) | |||
Quantity | 1 | ||
Location | On the top of tanker | ||
Size | DN100 | ||
Level Gauge 3*13T Fuwa | |||
Type | Manuel Switch type / ROTO Gauge | ||
Location | At the rear of the end plate | ||
Running System | |||
Axles | 3*13T BPW Axles | ||
Tire | 12R22.5 Tubeless tire ,12 pcs plus one spare tire | ||
Landing leg | JOST | ||
King Pin | #50(2”) or #90(3.5”) | ||
Control System | |||
Emergency Cut-off Valves | 2 | ||
Ball Valve | 2 | ||
Liquid Gauge | 1 | ||
Pressure Indicating Thermometer | 1 | ||
Pressure Gage | 1 | ||
Chengli factory’s advantages:
1) More than 15 years’ experience as a manufacturer
2) Competitive Price and Excellent quality
3) CCC, ISO, BV, ASME certification
4) Perfect after-sale service
5) Business range covers more than 50 countries and regions
6) 300 kinds of trucks and trailers
7) 100 senior welder and 15 senior engineers
8) Good cooperation with 30% regular customers
9) Annual production value tops 240,000,000 US dollars per year
