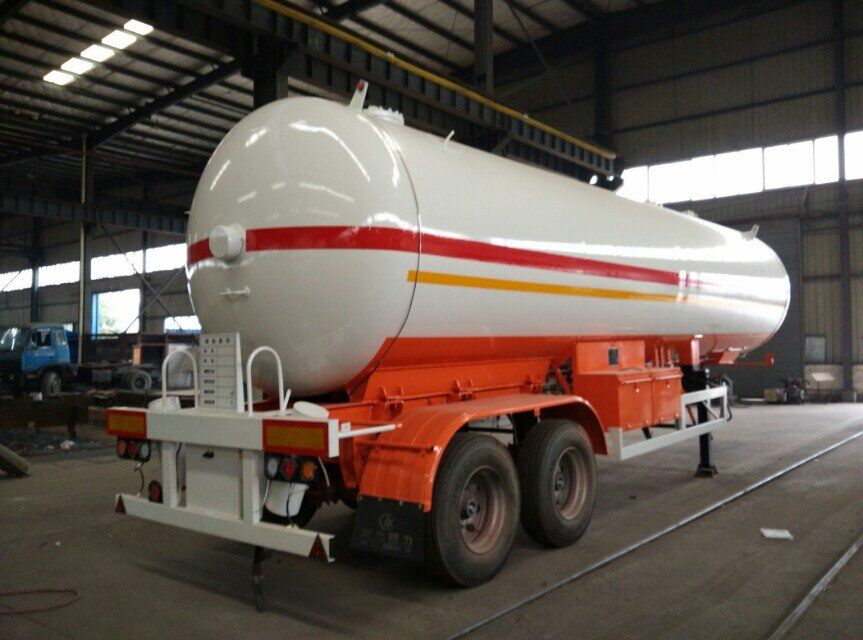

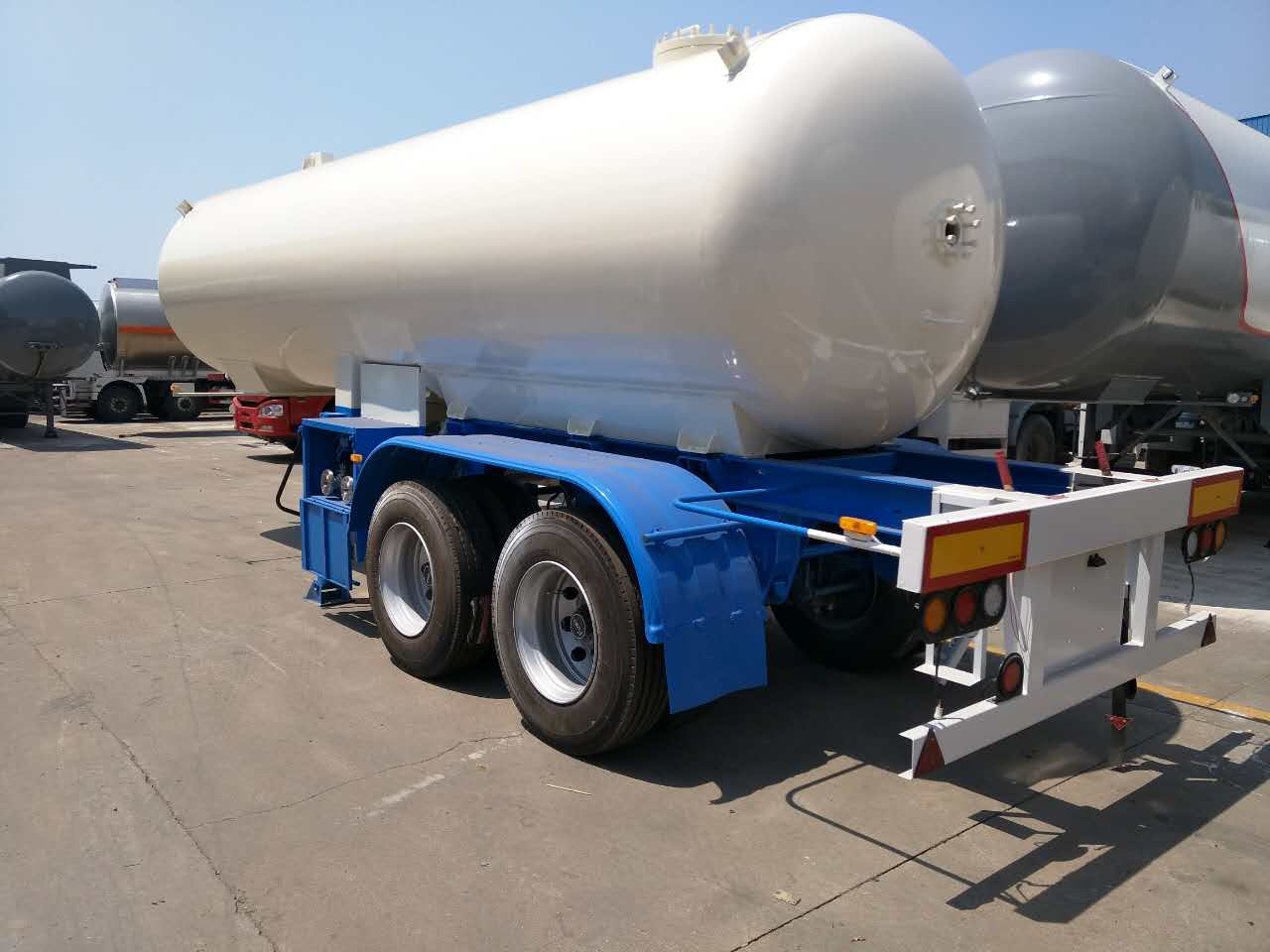

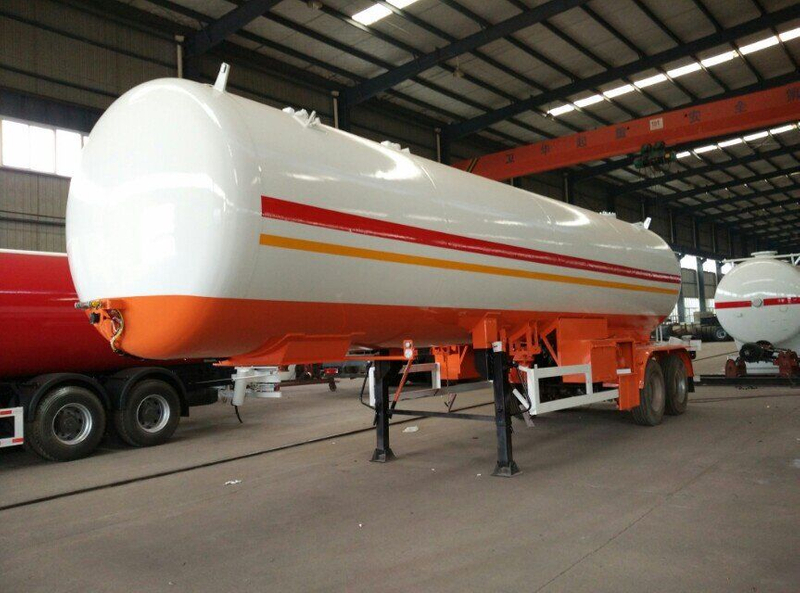

ASME 2 Axles 40cbm Lpg Tanker Semi Trailer for Africa Market
Technical parameter
| Item | Unit | Parameter | ||
| Product | double-axles LPG Pressure Vessel Semi-trailer(CLW9310GYQ) | |||
| Capacity | M 3 | 40.5 | ||
| Tare Weight | kg | 13415 | ||
| Filling Capacity | 17010 | |||
| Rated contained mass | 30425 | |||
| Vehicle Demension | mm | 11324×2500×3730 | ||
| Axles | 2 | |||
| Wheelbase | 6720+1320 | |||
| Track base | front | - | ||
| rear | 1320 | |||
| Front hanging/Rear hanging | mm | -/1500 | ||
| Number of leaf spring piece (front / rear) | -8/8 | |||
| Semi-trailer saddle maximum permissible load mass | kg | 16000 | ||
| Tire Size | 11.00-20 | |||
| configuration | Vessel material | Q345R,16MnIII | ||
| Standard configuration | 12-ton BPW shaft, valve cover, single-fluid two-valve boxes, legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency shut-off valve, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders | |||
| Others | Storage for: LPG (propane); | |||
| design pressure 1.77Mpa; | ||||
| design temperature 50 °C; | ||||
| filling density: 0.43T/M 3 ; | ||||
| corrosion margin: 1mm; | ||||
| tank dimension: 2200*12*11044mm | ||||
| Industry Protocol | GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure | |||
About us
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
LPG tanker trailer brief Introduction
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc. In low pressure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test. The tank materials on physical and chemical tests such as: Mechanical properties and chemical composition.
The tank welded joints, welding line, tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection.
Seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
A, B Class 100% ray weld inspection, II level qualified
C, D Class welds 100% magnetic particle inspection, I level qualified
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
