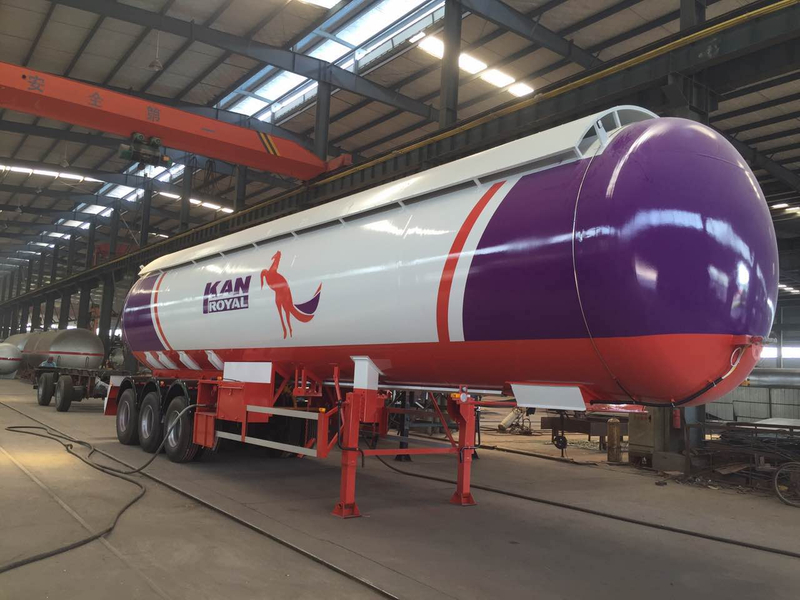

Large LPG Propane Tanker 3 Axles 56m3 Semi Trailer for Sale
Specification of 56CBM LPG Tank Semi-trailer | ||||
Volume of Tank | 56000Liters | |||
Overall Dimensions(L*W*H)(mm) | 12700×2500×3975 | |||
Tank Dimensions (Inner Diameter*thickness*Length) | 2450*11.5*12340 | |||
Estimated Tare Weight (kg) | 16480 | |||
Payload(kg) | 23520 | |||
Total Weight(kg) | 40000 | |||
Wheelbase(mm) | 6890+1310+1310 | |||
Shell of Tank | ||||
Medium | propane | |||
Fluid Property | Flammable | |||
Design Temperature(℃) | -19℃~50℃ | |||
Design Pressure(MPa) | 1.61 | |||
Corrosion Allowance(mm) | 1.00 | |||
Weld Joint Factor | 1 | |||
Major Materials | Tanker body:Q345R,11mm, | |||
End plate：Q345R,11mm,double ellipse | ||||
Main beam:16Mn | ||||
Manhole | 1 on the top ,DN450/DN500 | |||
Safety Valve(As Customer’s Requirement) | ||||
Quantity | 1 | |||
Location | On the top of tanker | |||
Size | DN100 | |||
Level Gauge 3*13T Fuwa | ||||
Type | Manuel Switch type / ROTO Gauge | |||
Location | At the rear of the end plate | |||
Running System | ||||
Axles | 3*12T BPW Axles | |||
Tire | 12R22.5 Tubeless tire ,12 pcs plus one spare tire | |||
Landing leg | JOST | |||
King Pin | #50(2”) or #90(3.5”) | |||
Control System | ||||
Emergency Cut-off Valves | 2 | |||
Ball Valve | 2 | |||
Liquid Gauge | 1 | |||
Pressure Indicating Thermometer | 1 | |||
Pressure Gage | 1 | |||
Accessories | ||||
Small Tool Box | 2 | |||
Valve Box | 2 | |||
Wheel Carrier | 1 | |||
Fire Extinguisher | 2 | |||
Fender | 6 | |||
Paint | As Customer’s Requirement | |||
About us
Chengli special automobile Co., Ltd is an automobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the overseas customers and contributing to China trucks' entrance to the international market.
Our Service:
1. Quality Inspection of Chengli Truck:
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, etc.
2. Spare Parts of Chengli Truck:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
3. Warranty of Chengli Truck:
One year's free warranty for major 3 components, including Engine, Gearbox, Axles.
4. After Sales Service of Chengli Truck:
Email & Phone call tracking for each truck on timely manners, also possible engineer
maintenace in customer's Country.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Large LPG Propane Tanker 3 Axles 56m3 Semi Trailer for Sale
