Hot Sale of 12 cbm Dongfeng 210 HP Euro 3 Concrete Mixer Cement Mixer Truck
Three main part of the concrete mixer truck:
1.German Rexroth Hydraulic pump, Motor, ZF reducer;
2.America Eton Hydraulic pump, Motor ;
3. Italy Bonfiglioli Reducer;
4. Italy PMP Hydraulic pump, Motor and reducer.
5.China brand pump, motor and reducer
Concrete mixing tank:
The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.
Specification of 12cbm Dongfeng 210 HP Euro 3 Concrete Mixer Cement Mixer Truck:
Condition | 6X2, New condition, Left Hand Drive. | |||
Brand | Dongfeng | |||
Overall Dimension(mm) | 10195×2495×3800 | |||
Wheelbase(mm) | 4950+1300 | |||
Curb weight(kg) | 13080 | |||
Gross weight(kg) | 25000 | |||
Approach/departure angle(°) | 19/12.5 | |||
Front /rear overhang(mm) | 1380/2565 | |||
Wheel track(front/rear)(mm) | 1940 /1860 | |||
Axle loading(front/rear) (kg) | 6990/17990X2 | |||
Max driving speed(km/h) | 85 | |||
Tire | Quantity | 10+1 spare tire | ||
Specification | 10.00-20 | |||
Cab | 3 passenger allowed, with Air Conditioner. | |||
Engine | Brand | Cummins | ||
Fuel type | Diesel | |||
Displacement (ml) | 5900 | |||
Max Horsepower (hp) | 210 | |||
Max Output Power (kw) | 155 | |||
Maximum torque (N.m) | 700 | |||
Cylinder number | 6 | |||
Emission standard | Euro III | |||
Body | ||||
Concrete Tank | Volume(cbm) | 12 | ||
Loading Speed(cbm/min) | ≥3 | |||
Discharging Speed(cbm/min) | ≥2 | |||
Residual Rate(%) | ≤0.5 | |||
Material | Q345 Carbon Steel | |||
Rotational Speed(RPM) | 0~17 | |||
Angel of inclination | 15° | |||

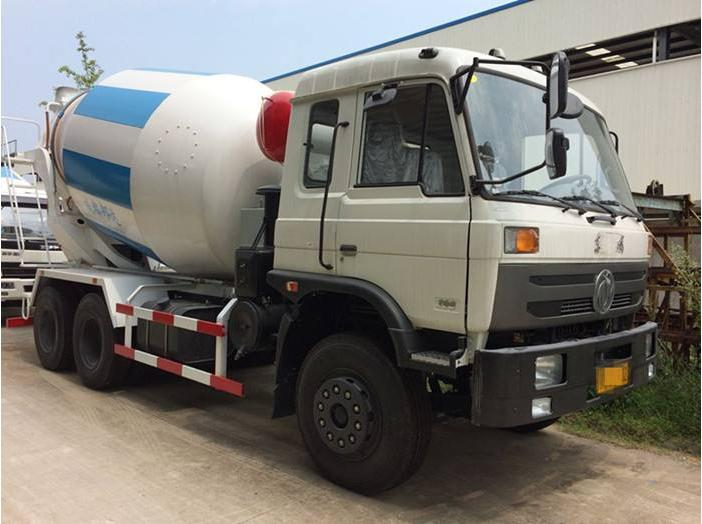

Reference Photo:
