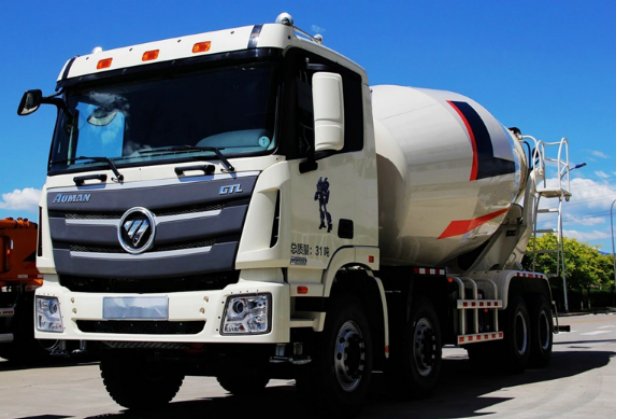

FOTON AUMAN 8x4 14 CBM Concrete Mixer Truck

Cement mixer also known as concrete mixer, mainly used for concrete mixing station cement transport work.
The working principle is that the power of the automobile chassis is taken out through the power take-off and the hydraulic pump of the hydraulic system is driven, the mechanical energy is transformed into the hydraulic energy and can be transmitted to the hydraulic motor, the motor drives the reducer, the agitator is driven by the reducer, Stir.

Quantity:
  • CLW
  • CLW

Description

FOTON AUMAN 8x4 14 CBM Concrete Mixer truck

Drive Model

8x4  Left-hand-drive

Cab

Flattop, with Air conditioner.

Condition

New condition

Volume

14 CBM

Vehicle Main Dimensions

Dimensions(L x W x H)(mm)

11235x2490x4000

Wheel base (mm)

1800+3850+1350

Wheel track (front/rear) (mm)

1986/1940/1860/1860

Weight in KGS

Curb Weight

11815

GVW

25000

Max. driving speed(km/h)

80

Engine



Model

WP12.340E32

Brand

WEICHAI  ENGINE

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

340HP

Displacement (ml/kw)

11596/250

Transmission

FAST, RTD-11509C, 9 forward, 1 reverse.

Tire

11.00-20 13 pieces

Upper Parts

Volume

14 CBM

Water Supply Patterns

Air Pressure

Material

Q345

Water Tank Capacity

400 (L)

Thickness

Tanker body 6 mm, Blade 5 mm.

Rotation Speed

0-15 (r/m)

Feeding speed

2.8 (M3/min)

Discharging Speed

1.2 (M3/min)

Material Remaining Ratio

≤0.5%

Mixing Capacity

14 CBM

Angle of Inclination

<15°

Gear reducer

Italy, PMP Brand

Hydraulic Pump

Italy, PMP Brand

Hydraulic Motor

Italy, PMP Brand

Radiator

China, KAIPENG Brand


Tanker Truck / Trailer Series:  LPG, Oil, Chemical Liquid, Water, Milk, Cement Power

Sanitary & Cleaning Truck Series:  Sweep Truck, Garbage Truck, Sewage Suction Truck, High-Pressure Cleaning Truck

Box Truck Series:  Refrigerator Truck, Van Truck, LED Van Truck

Engineer Truck Series:  Dump Truck, Crane Truck, Concrete Mixer Truck, Concrete Pump Truck

Operational Truck Series:  High Attitude Truck, Wrecker Truck, Fire-Fighting Truck



CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
