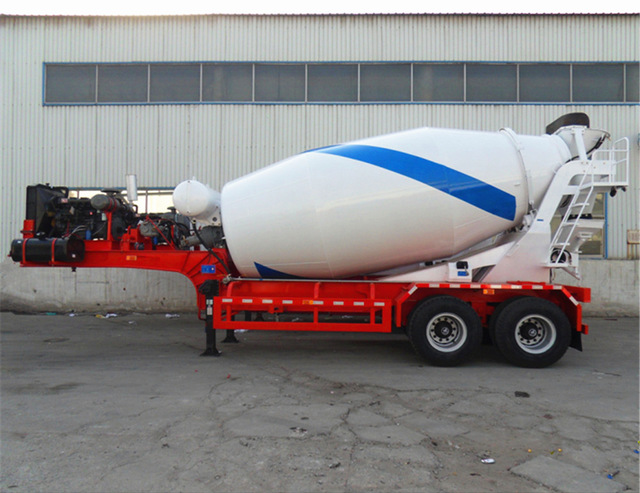

10 Cbm 2 Axle Concrete Mixer Semi Trailer

Cement mixer also known as concrete mixer, mainly used for concrete mixing station cement transport work. The working principle is that the power of the automobile chassis is taken out through the power take-off and the hydraulic pump of the hydraulic system is driven, the mechanical energy is transformed into the hydraulic energy and can be transmitted to the hydraulic motor, the motor drives the reducer, the agitator is driven by the reducer, Stir.
Availability:
Quantity:
  • CLW

10 Cbm  2 Axle Concrete Mixer Semi Trailer


Three main part of the concrete mixer truck:



1.German Rexroth Hydraulic pump, Motor, ZF reducer;

2.America Eton Hydraulic pump, Motor ;

3. Italy Bonfiglioli Reducer;

4. Italy PMP Hydraulic pump, Motor and reducer.

5.China brand pump, motor and reducer



Concrete mixing tank:

The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.



The specification of 10 Cbm  2 Axle Concrete Mixer Semi Trailer :



Size :9463*2495*3780 mm

Capacity :10 cbm

Mixer Drum Material :16Mn

Drum Tank Thickness :5 mm

Reduction Gear : BONFIGLIOL , Italy  ;

Hydraulic Pump : Sauer ,USA ;

Hydraulic Motor : Sauer ,USA

Chassis & Main Beam: Skeletal Chassis with special designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 12mm,width 140mm; Middle Flange 6mm; Bottom Flange 14mm,width 140mm.

Axles: 3 axles

Suspension: Mechanical suspension

King Pin :JOST band 2” Bolt-in King Pin

Landing Gear  :JOST brand Two-speed, manual operating, heavy duty landing gear

Tyre :11R22.5 tire with one spare tire, 13 pieces

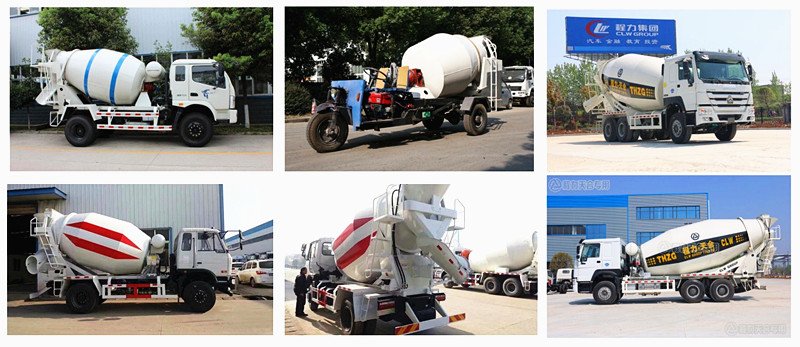

Reference Photo:

concrete mix truck

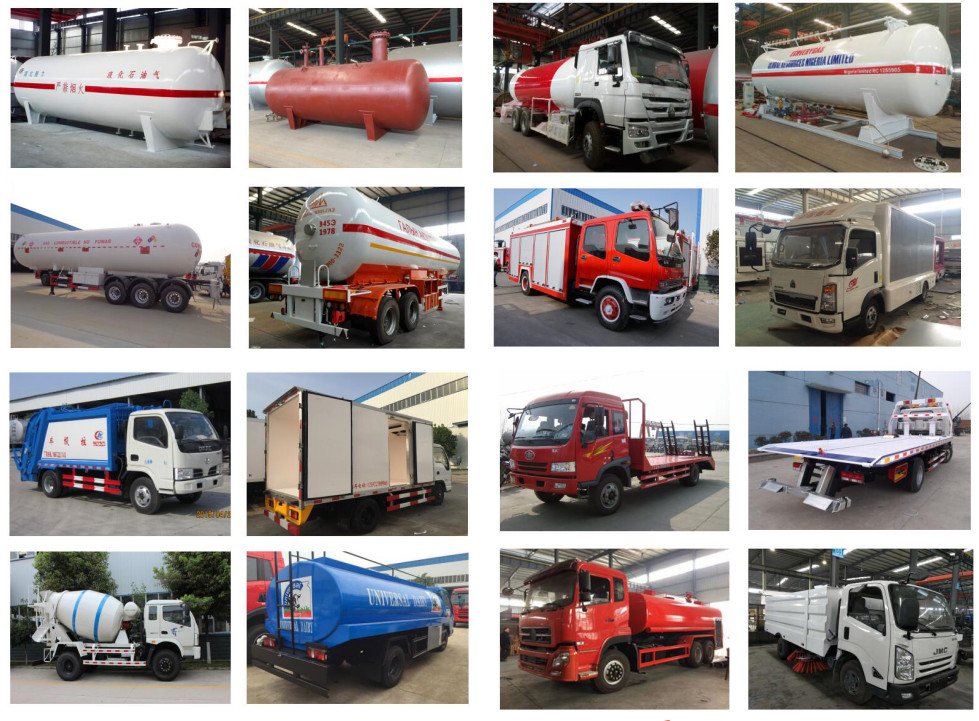

Tanker Truck / Trailer Series:  LPG, Oil, Chemical Liquid, Water, Milk, Cement Power

Sanitary & Cleaning Truck Series:  Sweep Truck, Garbage Truck, Sewage Suction Truck, High-Pressure Cleaning Truck

Box Truck Series:  Refrigerator Truck, Van Truck, LED Van Truck

Engineer Truck Series:  Dump Truck, Crane Truck, Concrete Mixer Truck, Concrete Pump Truck

Operational Truck Series:  High Attitude Truck, Wrecker Truck, Fire-Fighting Truck
