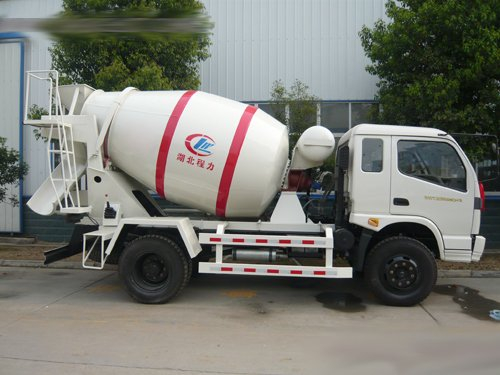

FOTON FORLAND 4*2 4 CBM Concrete Mixer Truck

Cement mixer also known as concrete mixer, mainly used for concrete mixing station cement transport work.
The working principle is that the power of the automobile chassis is taken out through the power take-off and the hydraulic pump of the hydraulic system is driven, the mechanical energy is transformed into the hydraulic energy and can be transmitted to the hydraulic motor, the motor drives the reducer, the agitator is driven by the reducer, Stir.

Quantity:
  • CLW
  • CLW

Specification

Description

FOTON 4*2 4 CBM Concrete Mixer truck


Drive Model

4x2  Right-hand-drive


Condition

New condition


Volume

4 CBM


Vehicle Main Dimensions

Dimensions(L x W x H)(mm)

6825*2300*3450


Wheel base (mm)

3600


Overhang (front/rear) (mm)

1245/1980


Wheel track (front/rear) (mm)

1790/1725


Approach/Departure angle(°)

29/22


Weight in KGS

Curb Weight

5860


GVW

13560


Max. driving speed(km/h)

80


Engine



Model

YC4D130-33


Brand

YUCHAI  ENGINE


Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling


Horse Power(HP)

130 HP


Displacement (ml/kw)

4200/96


Transmission

5 speed


Tire

8.25-20 7 pieces


Air conditioner

With air conditioner.


Upper

Volume

4 CBM

Water Supply Patterns

Air Pressure

Material

Q345

Water Tank Capacity

200 (L)

Thickness

6 mm

Rotation Speed

0-15 (r/m)

Feeding speed

2.8 (M3/min)

Discharging Speed

1.2 (M3/min)

Material Remaining Ratio

≤0.5%

Geometrical Area







6.3 CBM

Effective Mixing Volume

4 CBM

Mixing Capacity

4 CBM

Angle of Inclination

15°

Gear reducer , Oil hydraulic pump and motor are both imported from Italy PMP.

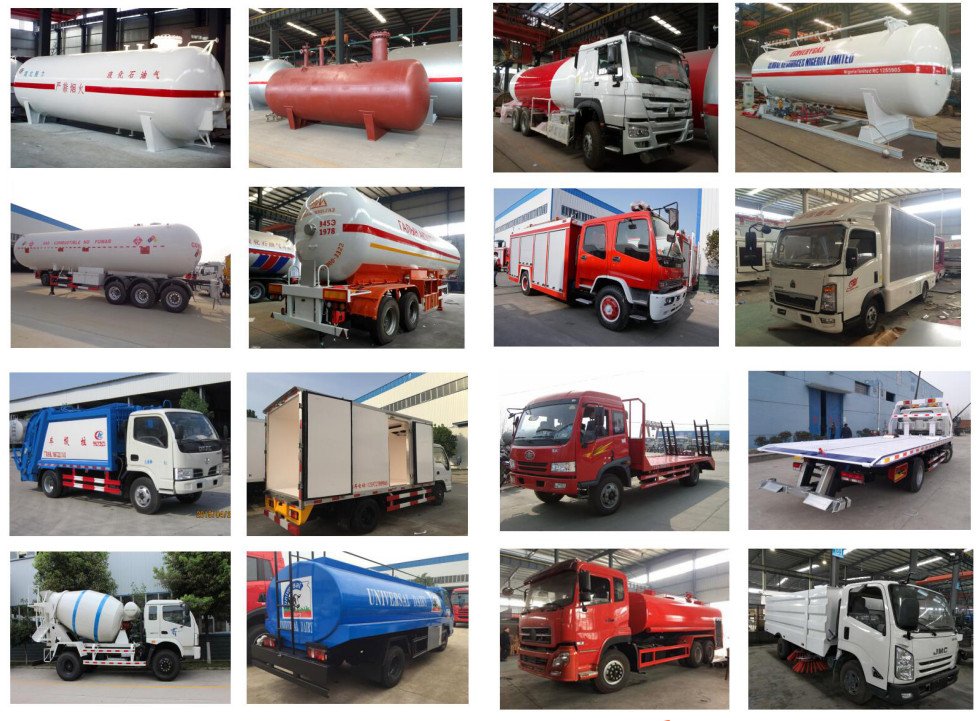

Tanker Truck / Trailer Series:  LPG, Oil, Chemical Liquid, Water, Milk, Cement Power

Sanitary & Cleaning Truck Series:  Sweep Truck, Garbage Truck, Sewage Suction Truck, High-Pressure Cleaning Truck

Box Truck Series:  Refrigerator Truck, Van Truck, LED Van Truck

Engineer Truck Series:  Dump Truck, Crane Truck, Concrete Mixer Truck, Concrete Pump Truck

Operational Truck Series:  High Attitude Truck, Wrecker Truck, Fire-Fighting Truck



CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
