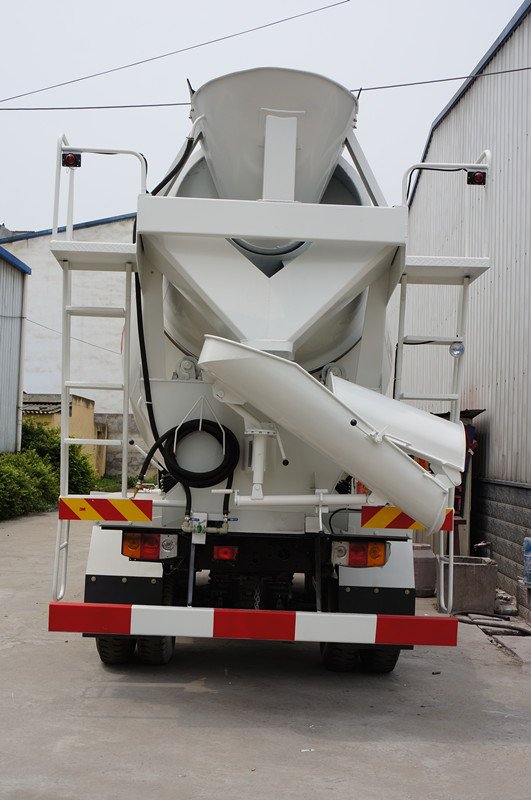

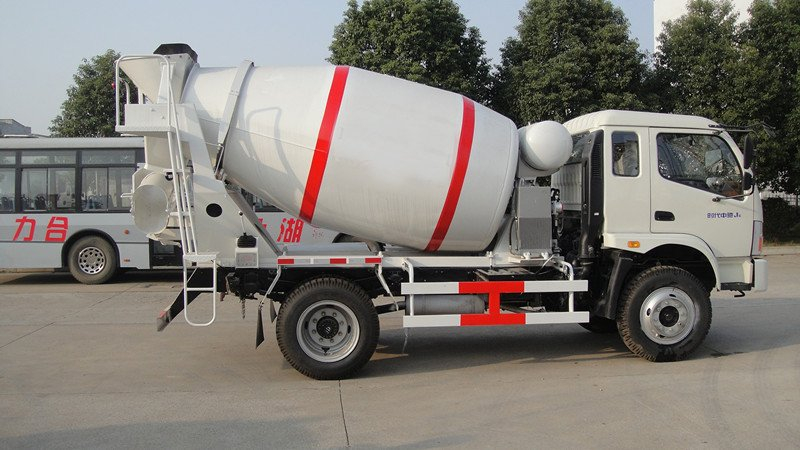

5 CBM Forland Brand 130 HP Concrete Mixer Truck Cement Mix Truck

Cement mixer also known as concrete mixer, mainly used for concrete mixing station cement transport work.
The working principle is that the power of the automobile chassis is taken out through the power take-off and the hydraulic pump of the hydraulic system is driven, the mechanical energy is transformed into the hydraulic energy and can be transmitted to the hydraulic motor, the motor drives the reducer, the agitator is driven by the reducer, Stir.

Quantity:
  • CLW

Three main part of the concrete mixer truck:

  1. German Rexroth Hydraulic pump, Motor, ZF reducer;

  2.America Eton Hydraulic pump, Motor ;

  3. Italy Bonfiglioli Reducer;

  4. Italy PMP Hydraulic pump, Motor and reducer.

  5.China brand pump, motor and reducer


Mixing tank:

     The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.


Item No.

Parameters


Overall Dimension

7125x2300x3450mm


Gross Vehicle Weight

13560 kg


Curb Weight

5860 kg


Loading Weight

7700 kg


Wheel Base

3600mm


Front/rear Tread

1245/1980


Approach/Departure Angle

29/20 degree


Engine

YC4D130-33,YUCHAI Engine EURO II, 4214ml, 130HP(ps)


Engine horsepower

130HP


Displacement

4.2L


Full loading Fuel

Consumption Rate

96 g/kw.h


Max Driving Speed

90 km/h


Cabin

Right hand drive, with air conditioner.


Tire

8.25R20 Tubeless Tire, 7 pieces including one spare tire.


Mixer Capacity

5 CBM


Tanker Material:

16MnQ345 high tensile strength Carbon Steel, 6mm End plate, 5mm Mixer Body


Hydraulic Pump

Chinese famous brand


Hydraulic Motor

Chinese famous brand


Speed Reducer

Chinese famous brand

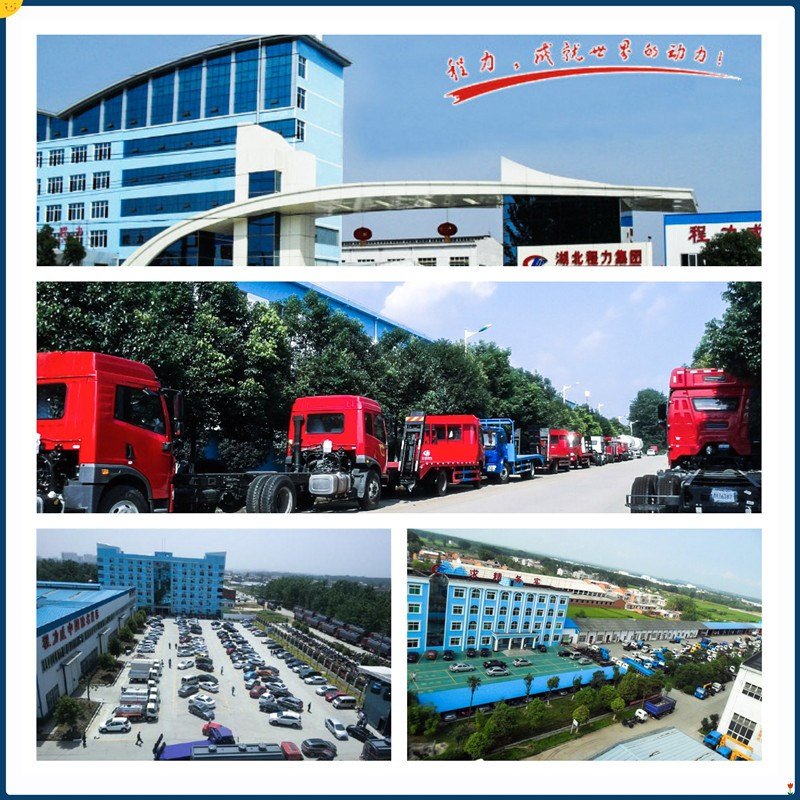

Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market.



   1.Quality control: our company truck pass ISO,CCC,BV certification.

    2.Design capacity :Our factory have over 200 technicians and designers.

    3. Exhibition: our factory attend Canton Fair every year.

    4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.

    5.Our company cooperate with famous chassis manufacturers, such as DONGFENG, FAW, SHINOTRUK, IVECO, FOTON, and etc.

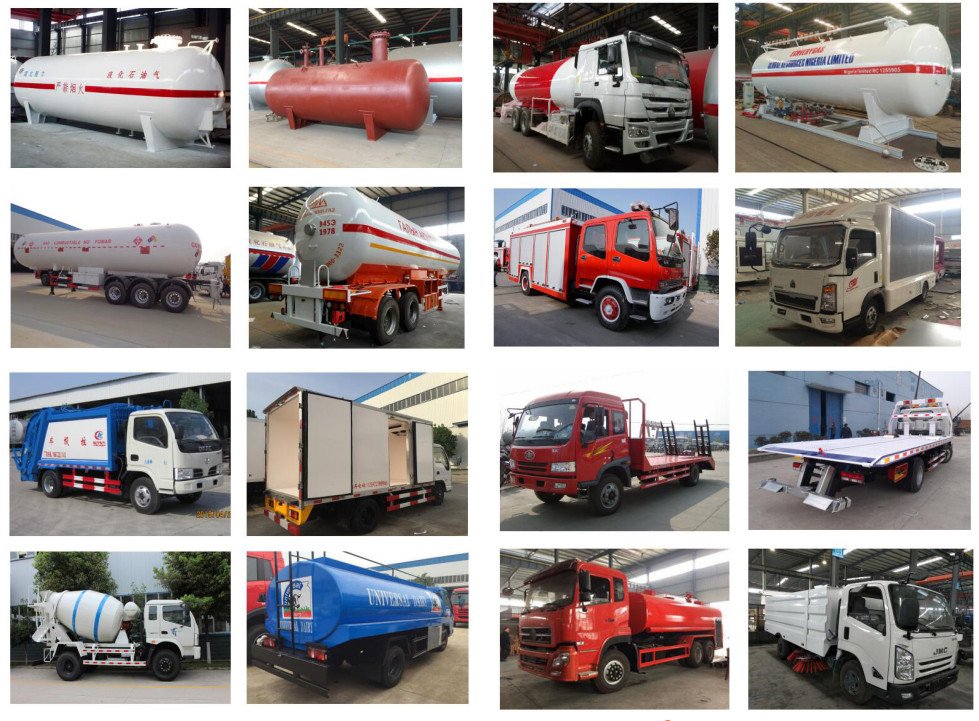

Tanker Truck / Trailer Series:  LPG, Oil, Chemical Liquid, Water, Milk, Cement Power

Sanitary & Cleaning Truck Series:  Sweep Truck, Garbage Truck, Sewage Suction Truck, High-Pressure Cleaning Truck

Box Truck Series:  Refrigerator Truck, Van Truck, LED Van Truck

Engineer Truck Series:  Dump Truck, Crane Truck, Concrete Mixer Truck, Concrete Pump Truck

Operational Truck Series:  High Attitude Truck, Wrecker Truck, Fire-Fighting Truck



CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
