CLW

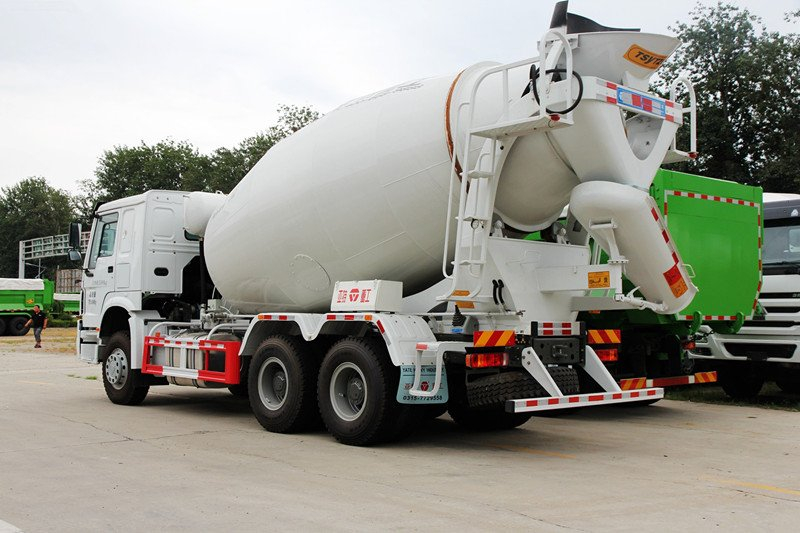

Three main part of the concrete mixer truck:
1.German Rexroth Hydraulic pump, Motor, ZF reducer;
2.America Eton Hydraulic pump, Motor ;
3. Italy Bonfiglioli Reducer;
4. Italy PMP Hydraulic pump, Motor and reducer.
5.China brand pump, motor and reducer
Mixing tank:
The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 9750x2500x3990 |
Wheel base (mm) | 4025+1350 | |
Overhang (front/rear) (mm) | 150/2875 | |
Wheel track (front/rear) (mm) | 2022/1830/1830 | |
Approach/Departure angle(°) | 16/27 | |
Weight in KGS | Curb Weight | 14050 |
GVW. | 25000 | |
Max. driving speed(km/h) | 78 | |
Engine | Model | W615.87 |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 290 | |
engine capacity(ml) | 9726 | |
Emission standard | Euro II | |
Gearbox | 8 forwards & 1 reverse | |
Clutch | Reinforced diaphragm clutch | |
Steering Gear | Power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 200 | |
Tire | 11.00R20 , 10pcs + 1 spare | |
Brakes | dual circuit compressed air brake | |
Mixer Drum | Geometric Volume | 13.5 cubic meters |
Mixer Capacity | 8 cubic meters | |
Tanker Material: | 16MnQ345 Carbon Steel | |
Filling Rate(%) | 59 | |
Input Speed (m3/min) | ≥2.8 | |
Output Speed (m3/min) | ≥1.2 | |
Surplus Ratio | ≤0.5 | |
Tanker Rotate Speed(rpm) | 0~17 | |
Drum Drive System | Hydraulic Pump | Italian PMP |
Hydraulic Motor | ||
Speed Reducer | Germany ZF | |
Radiator | KAITONG | |
Water System | Water Tank Volume(L) | 400 |
