Hot Sale of 6 cbm Dongfeng 190 HP Euro 3 Concrete Mixer Cement Mixer Truck
Three main part of the concrete mixer truck:
1.German Rexroth Hydraulic pump, Motor, ZF reducer;
2.America Eton Hydraulic pump, Motor ;
3. Italy Bonfiglioli Reducer;
4. Italy PMP Hydraulic pump, Motor and reducer.
5.China brand pump, motor and reducer
Concrete mixing tank:
The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.
Specification of 6 cbm Dongfeng 190 HP Euro 3 Concrete Mixer Cement Mixer Truck:
Item No. | Parameters | |
Overall Dimension | 8200×2480×3050 mm | |
Gross Vehicle Weight | 15000 kg | |
Curb Weight | 7100 kg | |
Loading Weight | 5000 Kg | |
Wheel Base | 4950mm | |
Front/rear Overhang | 1115/1485 mm | |
Front/rear Tread | 1586/1530 mm | |
Approach/Departure Angle | 18/12 degree | |
Engine | Cummins B190 33 Diesel Engine( Mechanical Pump), 4 Stroke, 6 Cylinder in line. | |
Engine horsepower | 190 HP Euro III | |
Displacement | 5.9 L(Diesel) | |
Full loading Fuel Consumption Rate | 203g/kW.h | |
Max Driving Speed | 100 km/h | |
Gear Box | Dongfeng Brand Manual Transmission 6 Forward & 1 Reverse Gear | |
Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner | |
Tire | 9.00R20, 6 pieces with 1 spare tire. | |
Mixer Drum | Mixer Capacity | 6 CBM |
Tanker Material: | 16MnQ345 Carbon Steel | |
Filling Rate(%) | 62 | |
Input Speed (m3/min) | ≥2.8 | |
Output Speed (m3/min) | ≥1.2 | |
Surplus Ratio | ≤0.5 | |
Tanker Rotate Speed(rpm) | 0~17 | |
Drum Drive System | Hydraulic Pump | SUNNY (China famous brand) |
Hydraulic Motor | SUNNY (China famous brand) | |
Speed Reducer | KY-5 (China famous brand) | |
Radiator | KAITONG | |
Water System | Water Tank Volume(L) | 200 |
Operation System | Operation Way | Connecting Rod Manipulation |

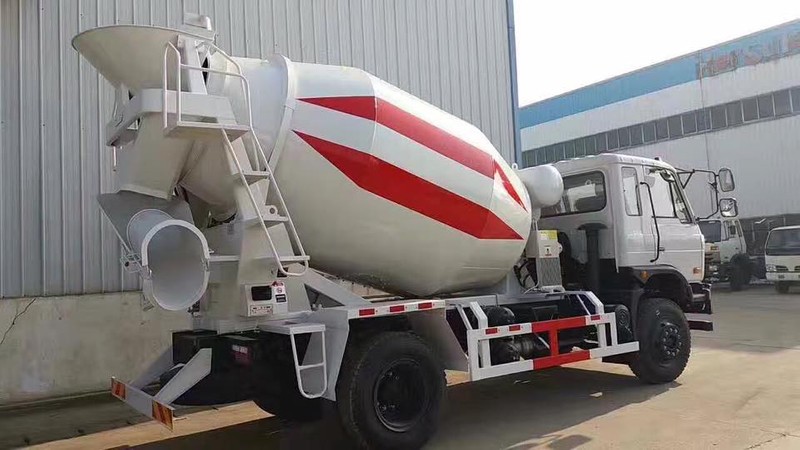

Reference Photo:
